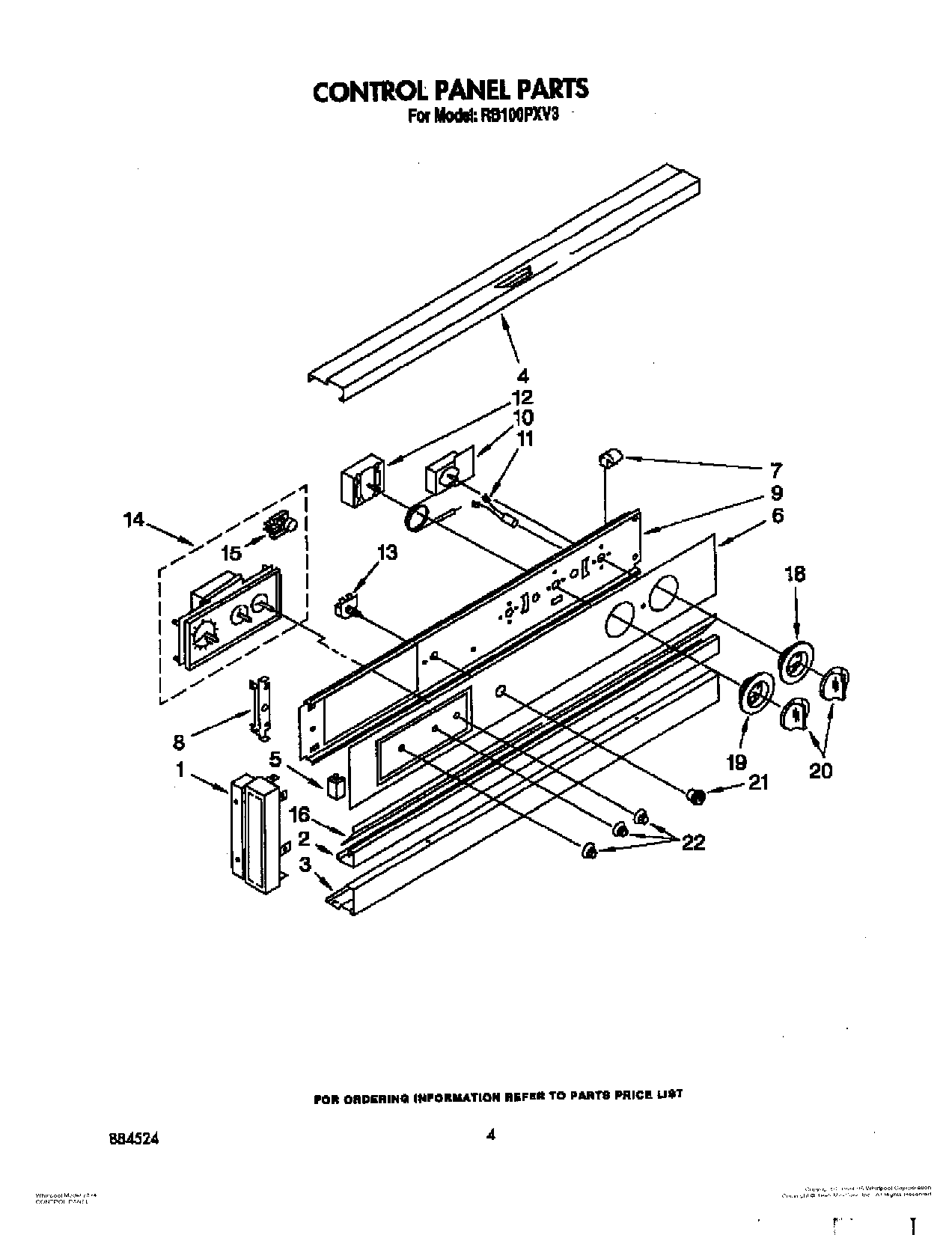

RB100PXV3 03 – CONTROL PANEL, LIT/OPTIONAL

RB100PXV3 03 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

RB100PXV3 03 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT311435
	WPL LIT3148574
	WPL LIT884524
	screw, 6-32 x 1/4 (2)
	WPL LIT313358
1	End Cap (Left Side)
1	End Cap (Right Side)
1	Washer
2	Trim, Center
3	Trim, Bottom
4	Trim, Upper
5	Rubber Channel (2) (Black Model Only)
6	Glass, Control Panel
7	Retainer, Glass (4)
8	panel, top (screw, 10a x 3/8 (3))
8	Bracket, Control Panel (2)
9	Control Bracket
10	Thermostat
10	Thermostat (Alt.)
10	Thermostat (Alt.)
11	Indicator Light (4)
12	WP486579 Whirlpool Air Conditioner Screw
12	Selector Switch (4 Position)
13	Lockwasher
13	Switch, Oven Light
14	WP965173 Whirlpool Dishwasher Screw
14	Timer, Clock (Includes No.6)
15	Motor, Timer
16	Rail, Top (Seal, Backguard)
18	Escutcheon, Thermostat
19	Screw,
19	WP311069 Whirlpool Oven Dial
20	WP3150371 Whirlpool Control Knob
21	Bezel Switch (1)
22	Almond (Uncut)
22	Wire, 25` Roll (Black 14 Ga.)
22	350956 Whirlpool Spray Assembly
22	Wire (14 Ga. 150 c Brown)
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	72017 Whirlpool Appliance Touch-Up Paint White
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	511873 Whirlpool Refrigerator Paint
22	799344 Whirlpool Refrigerator Paint
22	350942 Whirlpool Spray Paint
22	WP72107 Whirlpool Touchup
22	Golden Harvest
22	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
22	Golden Harvest (Uncut)
22	350930 Whirlpool White Spray Paint
22	Wire, 25` Roll (Red 14 Ga.)
22	1
22	Paint, Spray 13 Oz. (Avocado)
22	Wire (14 Ga. 200 c Brown)
22	18 Ga. 80~c Rating (Red)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Touch-Up Oven (1 Oz.)
22	Wire (14 Ga. 150 c Blue)
22	paint, spray 13 oz. (coffee)
22	Paint, Touch-Up 1/2 Oz. (Coffee)
22	Enamel, Coffee (1 Qt. Uncut)
22	Spring (3)
22	WP3169181 Whirlpool Knob
22	Wire, 25“ Roll (White 14 GA.)
22	285006 Whirlpool Spray
22	Grease
22	72109 Whirlpool Dacor Avocado Touch-Up Paint
22	Leveler (Thinner) (2oz.)
22	Enamel, New Avocado (1 Qt. Uncut)
22	242831 Whirlpool Oven Wire
