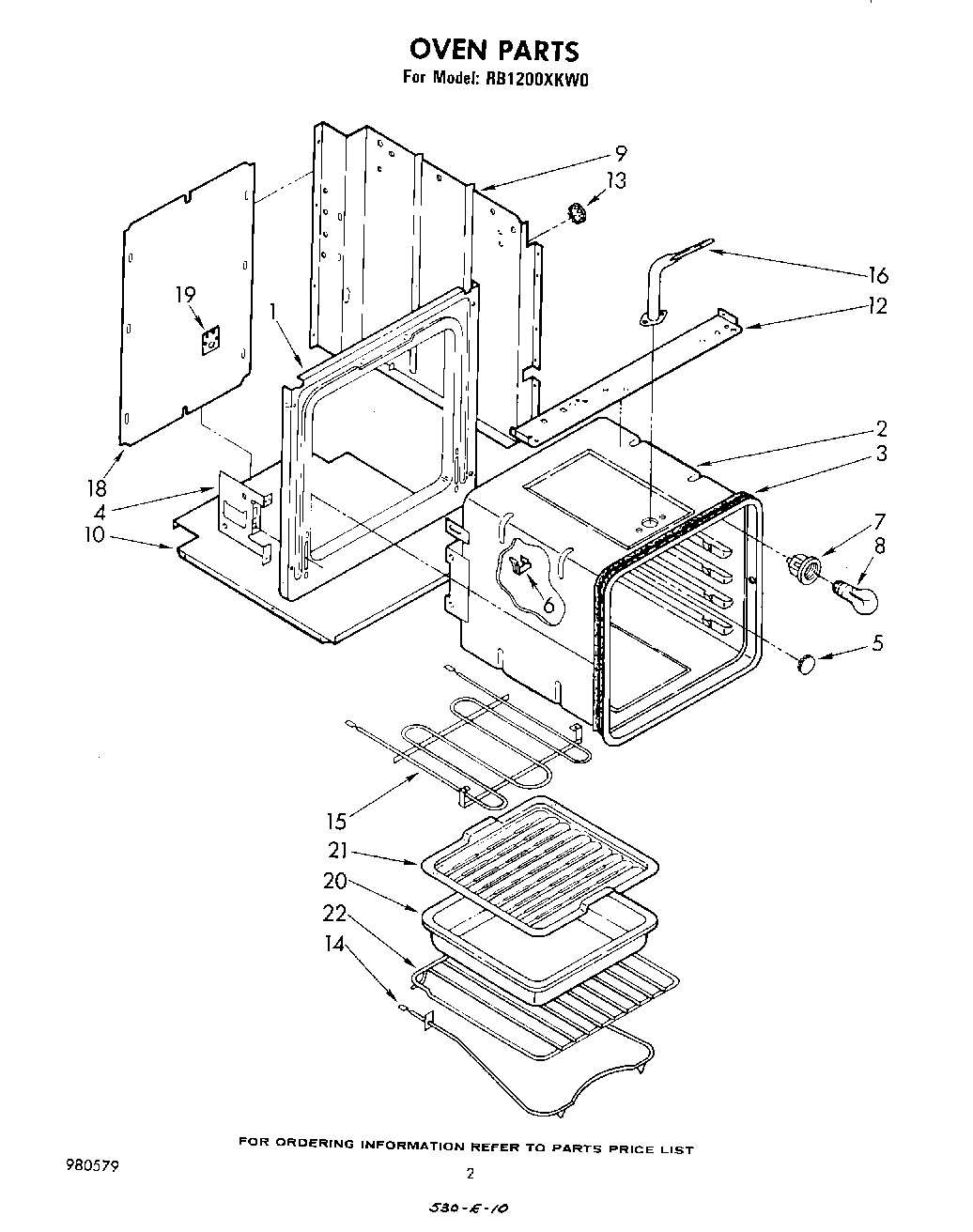

RB1200XKW0 02 – SECTION

Products

Position	Product
1	Black 2142B
2	Main Back
2	Screw (3)
3	Seal, Oven
4	Plate, Hinge (2)
4	Screw, 10-32 x 1/2
5	Plug Button
6	98005642 Whirlpool Clip
7	Screw (10-12 x .875)
7	Socket, Oven Light (Alt.)
7	Socket, Oven Light (Alt.)
8	RANGE ONLY 40W 120V APPL BULB
9	Side Wrapper (2)
9	SCREW
9	Screw
10	Cover (Bottom)
10	Cover (Top)
12	Baffle, Top Insulation
13	Plug Button (2)
14	326791 Whirlpool Range Oven Bake Element
15	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
15	Screw, 10-32 x 5/8 (4)
16	Vent, Oven
18	WP308685 Whirlpool Microwave Screw
18	Cover, Rear
19	Plate, Service
20	4396923 Whirlpool Broil Pan Set Gray Porcelain
22	Rack, Oven (2)
