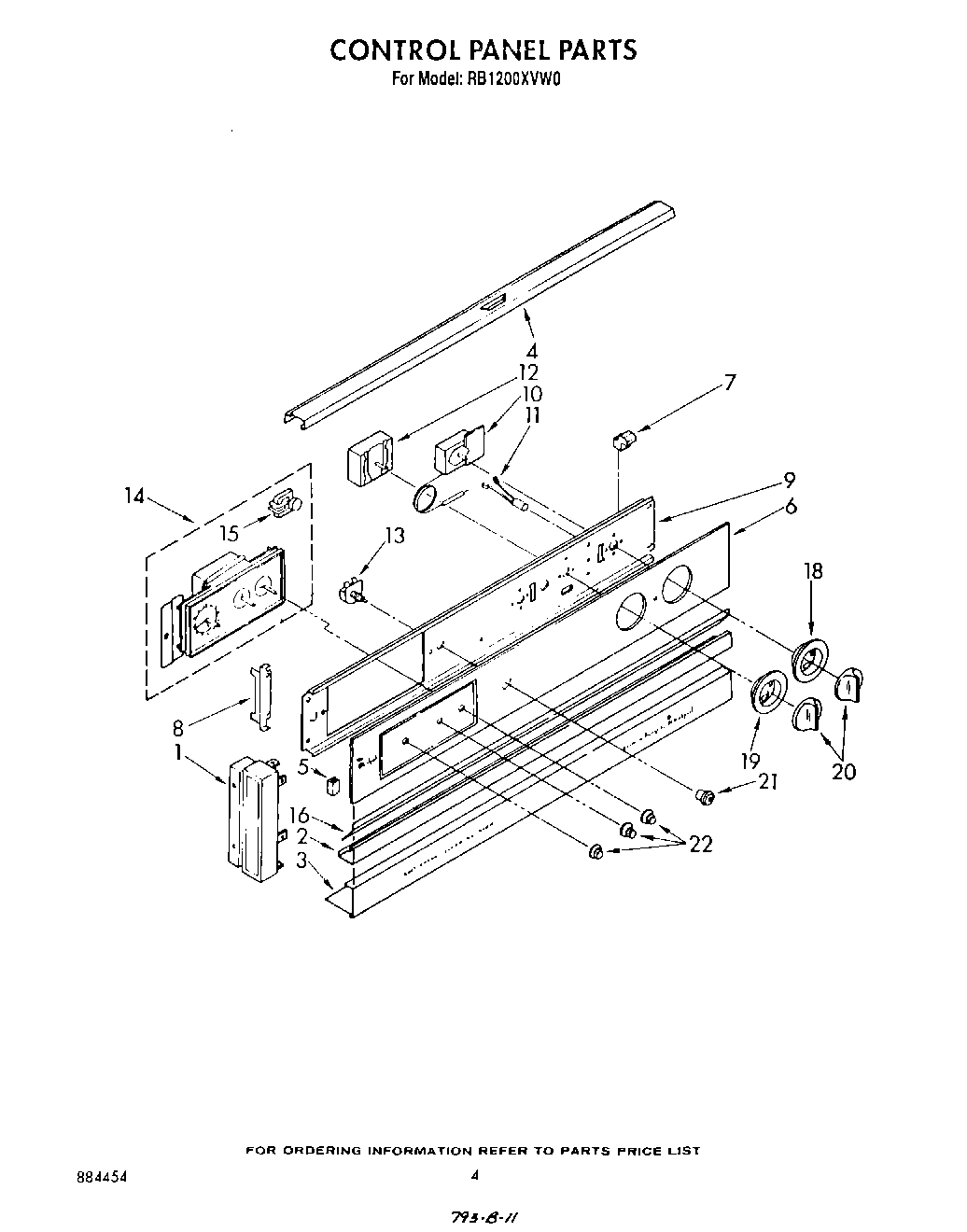

RB1200XVW0 03 – CONTROL PANEL , LITERATURE AND OPTIONAL

RB1200XVW0 03 – CONTROL PANEL , LITERATURE AND OPTIONAL

Written by

in

RB1200XVW0 03 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT313358
	WPL LIT311435
	WPL LIT3148575
	WPL LIT884454
	screw, 6-32 x 1/4 (2)
1	End Cap (Right Side)
1	Washer
1	End Cap (Left Side)
2	Trim, Center
3	WP965173 Whirlpool Dishwasher Screw
3	Trim, Bottom
4	Trim, Upper
5	Rubber Channel (2) (Black Model Only)
6	Glass, Control Panel
7	Retainer, Glass (4)
8	Bracket, Control Panel (2)
8	panel, top (screw, 10a x 3/8 (3))
9	Control Bracket
10	Thermostat
10	Thermostat (Alt.)
10	Thermostat (Alt.)
11	Indicator Light (4)
12	WP486579 Whirlpool Air Conditioner Screw
12	Selector Switch (4 Position)
13	Switch, Oven Light
13	Lockwasher
14	Timer, Clock (Includes No.6)
15	Motor, Timer
16	Rail, Top (Seal, Backguard)
18	Escutcheon, Thermostat
19	WP311069 Whirlpool Oven Dial
19	Screw,
20	WP3150371 Whirlpool Control Knob
21	Bezel Switch (1)
22	WP3169181 Whirlpool Knob
22	Enamel, Coffee (1 Qt. Uncut)
22	Enamel, New Avocado (1 Qt. Uncut)
22	Leveler (Thinner) (2oz.)
22	Rotisserie Kit (RCK 81)
22	Spring (3)
22	Golden Harvest (Uncut)
22	Grease
22	1
22	WPL 799832
22	511873 Whirlpool Refrigerator Paint
22	350942 Whirlpool Spray Paint
22	WPL 72112
22	Platinum (Uncut)
22	Enamal, Toast (1 Qt. Uncut)
22	Paint, Spray (13 Oz.) (Platinum)
22	Toast
22	Golden Harvest
22	72113 Whirlpool Touch-Up Paint
22	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	WPW10208653 Whirlpool Insulation
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	Wire, 25` Roll (Black 14 Ga.)
22	Wire (14 Ga. 200 c Brown)
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	242831 Whirlpool Oven Wire
22	Touch-Up Oven (1 Oz.)
22	Paint, Spray 13 Oz. (Avocado)
22	paint, spray 13 oz. (coffee)
22	Paint, Touch-Up 1/2 Oz. (Coffee)
22	72109 Whirlpool Dacor Avocado Touch-Up Paint
22	285006 Whirlpool Spray
22	Wire, 25“ Roll (White 14 GA.)
22	Wire, 25` Roll (Red 14 Ga.)
22	350930 Whirlpool White Spray Paint
