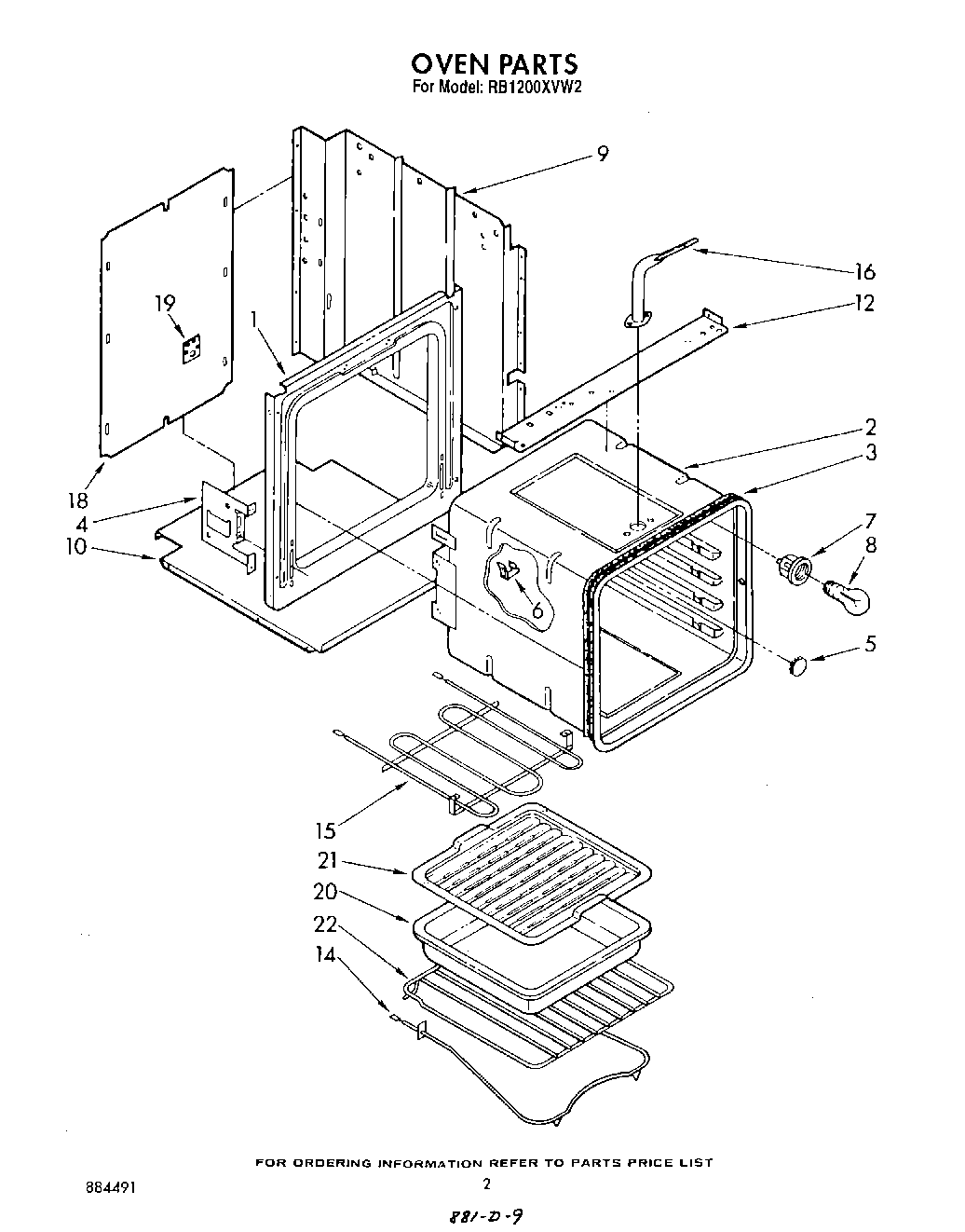

RB1200XVW2 02 – OVEN

Products

Position	Product
	Repair Parts List
	WPL LIT3148575
	WPL LIT311435
	Screw (10-12 x .875)
	WPL LIT313358
	Screw, 10-32 x 5/8 (4)
1	Frame, Front
2	Main Back
2	Screw (3)
3	Seal, Oven
4	Screw, 10-32 x 1/2
4	Plate, Hinge (2)
5	Plug Button
6	98005642 Whirlpool Clip
7	Socket, Oven Light
7	Socket, Oven Light (Alt.)
7	Socket, Oven Light (Alt.)
8	RANGE ONLY 40W 120V APPL BULB
9	Side Wrapper (2)
9	Screw
10	Cover (Top)
10	Cover (Bottom)
12	Baffle, Top Insulation
14	326791 Whirlpool Range Oven Bake Element
15	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
16	Vent, Oven
18	WP308685 Whirlpool Microwave Screw
18	Cover, Rear
19	Plate, Service
20	4396923 Whirlpool Broil Pan Set Gray Porcelain
22	Rack, Oven (2)
