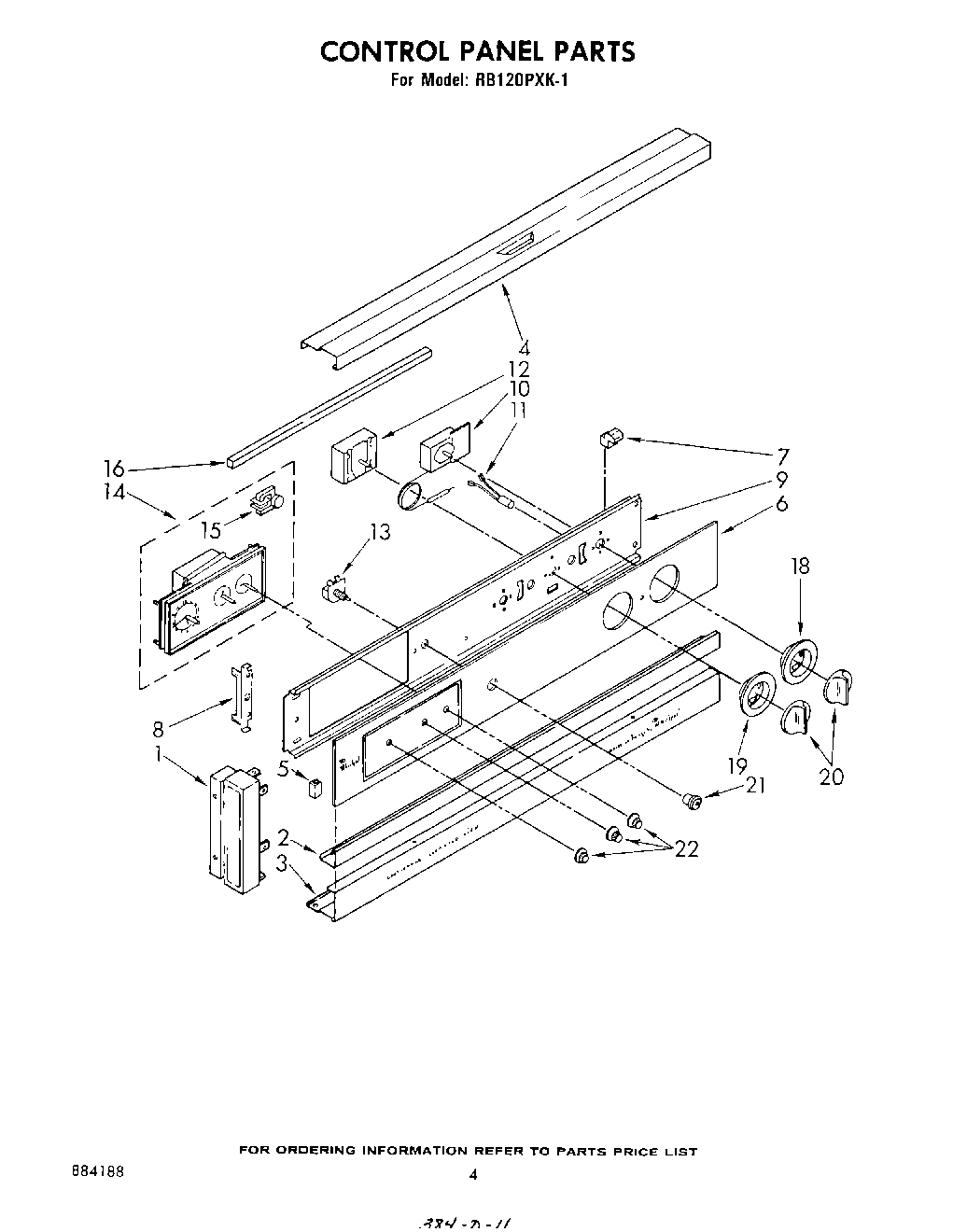

RB120PXK1 03 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT313358
	WPL LIT884188
	WPL LIT311418
	screw, 6-32 x 1/4 (2)
	WPL LIT311435
1	Screw
1	Washer
1	End Cap (Right Side)
1	End Cap (Left Side)
2	Trim, Center
3	Trim, Bottom
4	Trim, Upper
5	Rubber Channel (2) (Black Model Only)
6	Panel, Control Glass
7	Retainer, Glass (4)
8	Bracket, Control Panel (2)
8	panel, top (screw, 10a x 3/8 (3))
9	Screw
9	Control Bracket
10	Thermostat (Alt.)
10	Thermostat
10	Thermostat (Alt.)
11	Indicator Light (250V)
12	Selector Switch (4 Position)
12	WP486579 Whirlpool Air Conditioner Screw
13	Lockwasher
13	Switch, Oven Light
14	Timer, Automatic (Includes Illus. 15)
14	WP965173 Whirlpool Dishwasher Screw
15	Motor, Timer
16	Rail, Top (Seal, Backguard)
18	Escutcheon, Thermostat
19	Screw,
19	WP311069 Whirlpool Oven Dial
20	WP3150371 Whirlpool Control Knob
21	Bezel Switch (1)
22	511873 Whirlpool Refrigerator Paint
22	WPL 799832
22	WPW10208653 Whirlpool Insulation
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	Wire, 25` Roll (Black 14 Ga.)
22	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
22	350942 Whirlpool Spray Paint
22	Golden Harvest (Uncut)
22	Golden Harvest
22	350930 Whirlpool White Spray Paint
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25“ Roll (White 14 GA.)
22	Paint, Spray 13 Oz. (Avocado)
22	1
22	Wire (14 Ga. 200 c Brown)
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Touch-Up Oven (1 Oz.)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	242831 Whirlpool Oven Wire
22	paint, spray 13 oz. (coffee)
22	Enamel, Coffee (1 Qt. Uncut)
22	72109 Whirlpool Dacor Avocado Touch-Up Paint
22	285006 Whirlpool Spray
22	Spring (3)
22	WP3169181 Whirlpool Knob
22	Wire (14 Ga. 150 c Brown)
22	Paint, Touch-Up 1/2 Oz. (Coffee)
22	Grease
22	Leveler (Thinner) (2oz.)
22	Enamel, New Avocado (1 Qt. Uncut)
22	Wire (14 Ga. 150 c Blue)
