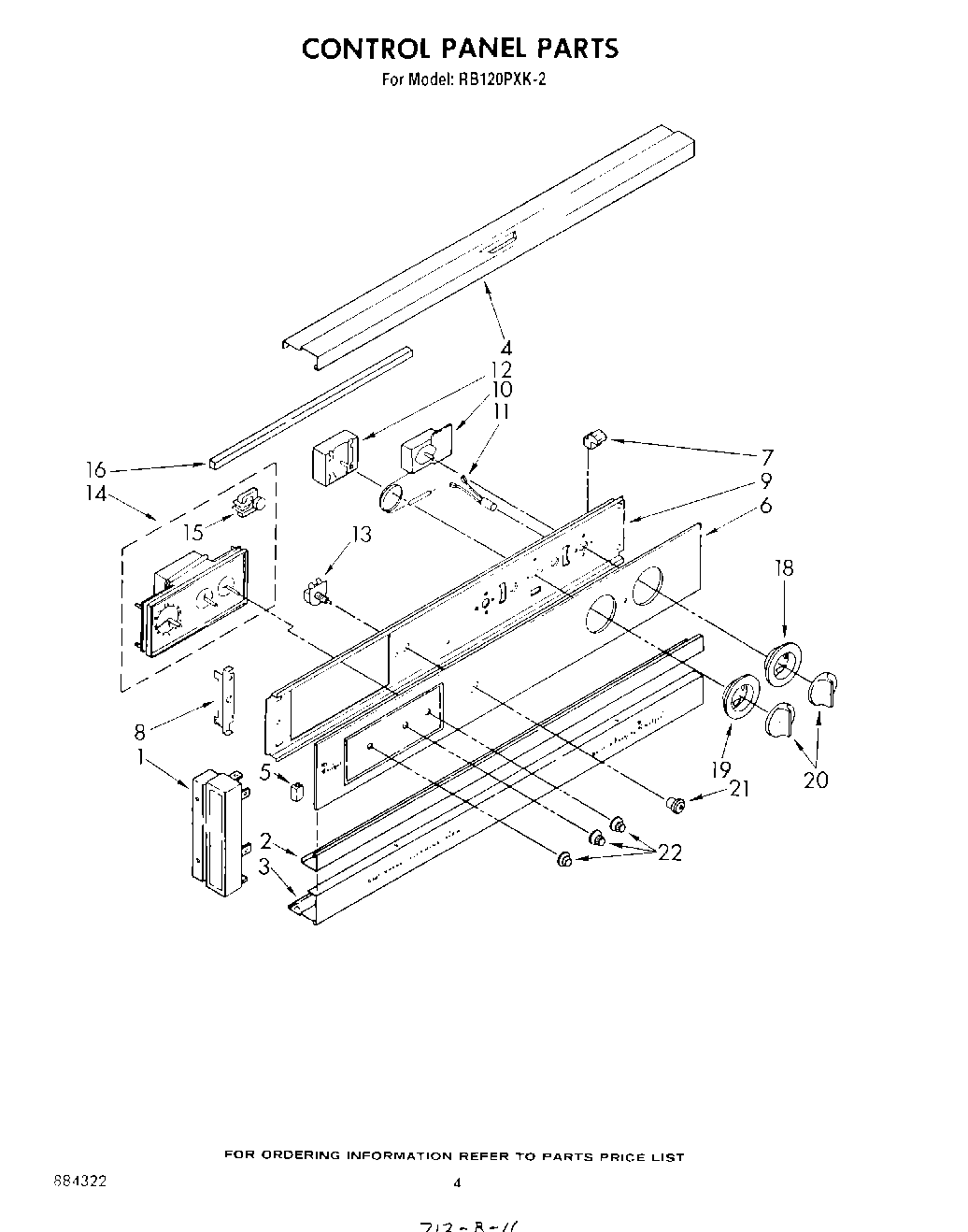

RB120PXK2 03 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

Position	Product
	screw, 6-32 x 1/4 (2)
	WPL LIT313358
	WPL LIT884322
	WPL LIT311435
	WPL LIT311418
1	Washer
1	Screw
1	End Cap (Right Side)
1	End Cap (Left Side)
2	Trim, Center
3	Trim, Bottom
4	Trim, Upper
5	Rubber Channel (2) (Black Model Only)
6	Panel, Control Glass
7	Retainer, Glass (4)
8	Bracket, Control Panel (2)
8	panel, top (screw, 10a x 3/8 (3))
9	Control Bracket
9	Screw
10	Thermostat (Alt.)
10	Thermostat
10	Thermostat (Alt.)
11	Indicator Light (4)
12	Selector Switch (4 Position)
12	WP486579 Whirlpool Air Conditioner Screw
13	Lockwasher
13	Switch, Oven Light
14	Timer, Automatic (Includes Illus. 15)
14	WP965173 Whirlpool Dishwasher Screw
15	Motor, Timer
16	Rail, Top (Seal, Backguard)
18	Escutcheon, Thermostat
19	WP311069 Whirlpool Oven Dial
19	Screw,
20	WP3150371 Whirlpool Control Knob
21	Bezel Switch (1)
22	350930 Whirlpool White Spray Paint
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25` Roll (Black 14 Ga.)
22	350956 Whirlpool Spray Assembly
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	511873 Whirlpool Refrigerator Paint
22	350942 Whirlpool Spray Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	Golden Harvest (Uncut)
22	Golden Harvest
22	799344 Whirlpool Refrigerator Paint
22	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
22	WP72107 Whirlpool Touchup
22	Almond (Uncut)
22	Wire, 25“ Roll (White 14 GA.)
22	1
22	Paint, Spray 13 Oz. (Avocado)
22	Wire (14 Ga. 200 c Brown)
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Touch-Up Oven (1 Oz.)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	242831 Whirlpool Oven Wire
22	paint, spray 13 oz. (coffee)
22	Paint, Touch-Up 1/2 Oz. (Coffee)
22	Spring (3)
22	WP3169181 Whirlpool Knob
22	285006 Whirlpool Spray
22	Wire (14 Ga. 150 c Brown)
22	72109 Whirlpool Dacor Avocado Touch-Up Paint
22	Grease
22	Leveler (Thinner) (2oz.)
22	Enamel, New Avocado (1 Qt. Uncut)
22	Enamel, Coffee (1 Qt. Uncut)
22	Wire (14 Ga. 150 c Blue)
