RB120PXV0 04 – DOOR

RB120PXV0 04 – DOOR

Written by

in

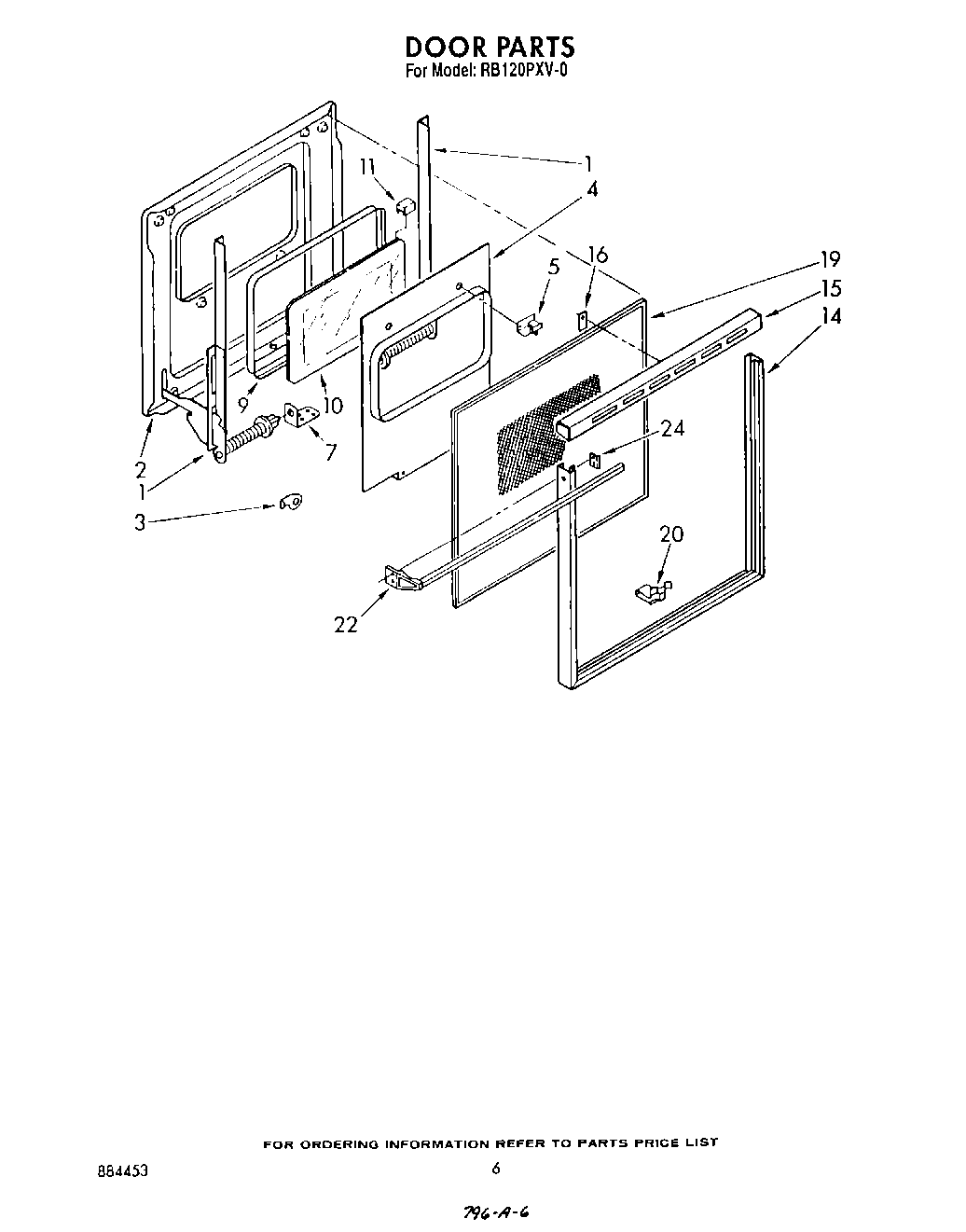

RB120PXV0 04 – DOOR

Products

PositionProduct
1SCREW
1Bar, Torsion (L.H.)
1Bar, Torsion (R.H.)
1Bar, Torsion (Pushnut (2))
2Liner, Door
2Washer, Fiber
2Nut, Snap-In (2)
2panel, top (screw, 10a x 3/8 (3))
2Screw (3)
3Stop, Door (L.H.)
3Stop, Door (Right Hand)
4Baffle
5Screw, 10A x 1/2 (2) (Black)
5Spacer (4)
7Support, Torsion Bar (2)
7WP488627 Whirlpool Refrigerator Screw
9Seal, Window
10Glass, Inner
11Channel, Rubber (4)
14Frame, Door
15Top, Door Frame
15WP90296 Whirlpool Clip
16hold down, glass (2)
19Glass, Outer
20clip, glass (10)
22WP912618 Whirlpool Dishwasher Screw
22Handle, Door
24screw (3)
