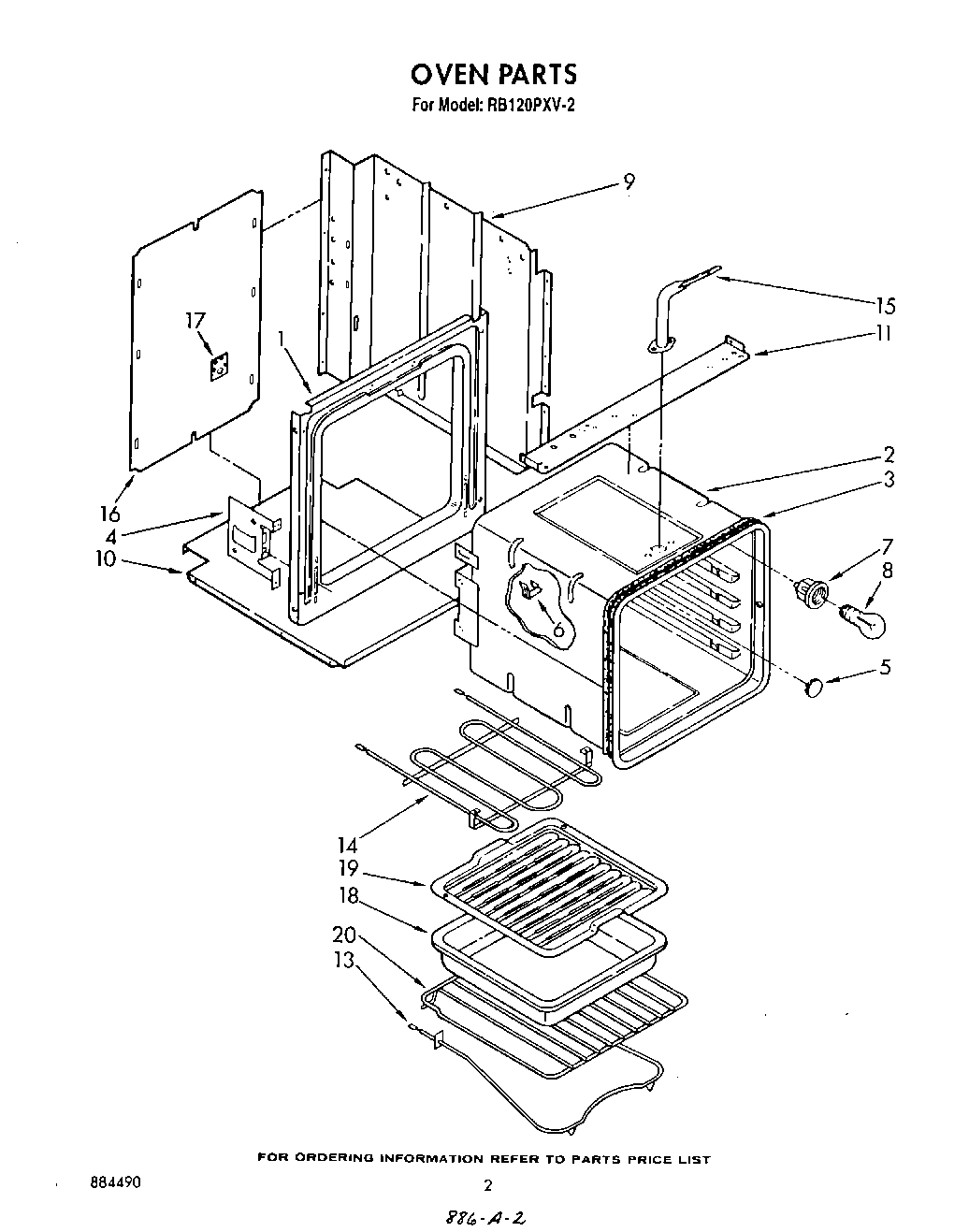

RB120PXV2 02 – OVEN

Products

Position	Product
	Screw, 10-32 x 5/8 (4)
	Screw (10-12 x .875)
1	Frame, Front
2	Main Back
2	Screw (3)
3	Seal, Oven
4	Plate, Hinge (2)
4	Screw, 10-32 x 1/2
5	Plug Button
6	98005642 Whirlpool Clip
7	Socket, Oven Light (Alt.)
7	Socket, Oven Light (Alt.)
7	Socket, Oven Light
8	RANGE ONLY 40W 120V APPL BULB
9	Screw
9	Side Wrapper (2)
10	Cover (Top)
10	Cover (Bottom)
11	Baffle, Top Insulation
13	326791 Whirlpool Range Oven Bake Element
13	Unit, Bake (Alt.)
14	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
15	Vent, Oven
15	WP965173 Whirlpool Dishwasher Screw
16	WP308685 Whirlpool Microwave Screw
16	Cover, Rear
17	Plate, Service
18	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Rack, Oven (2)
