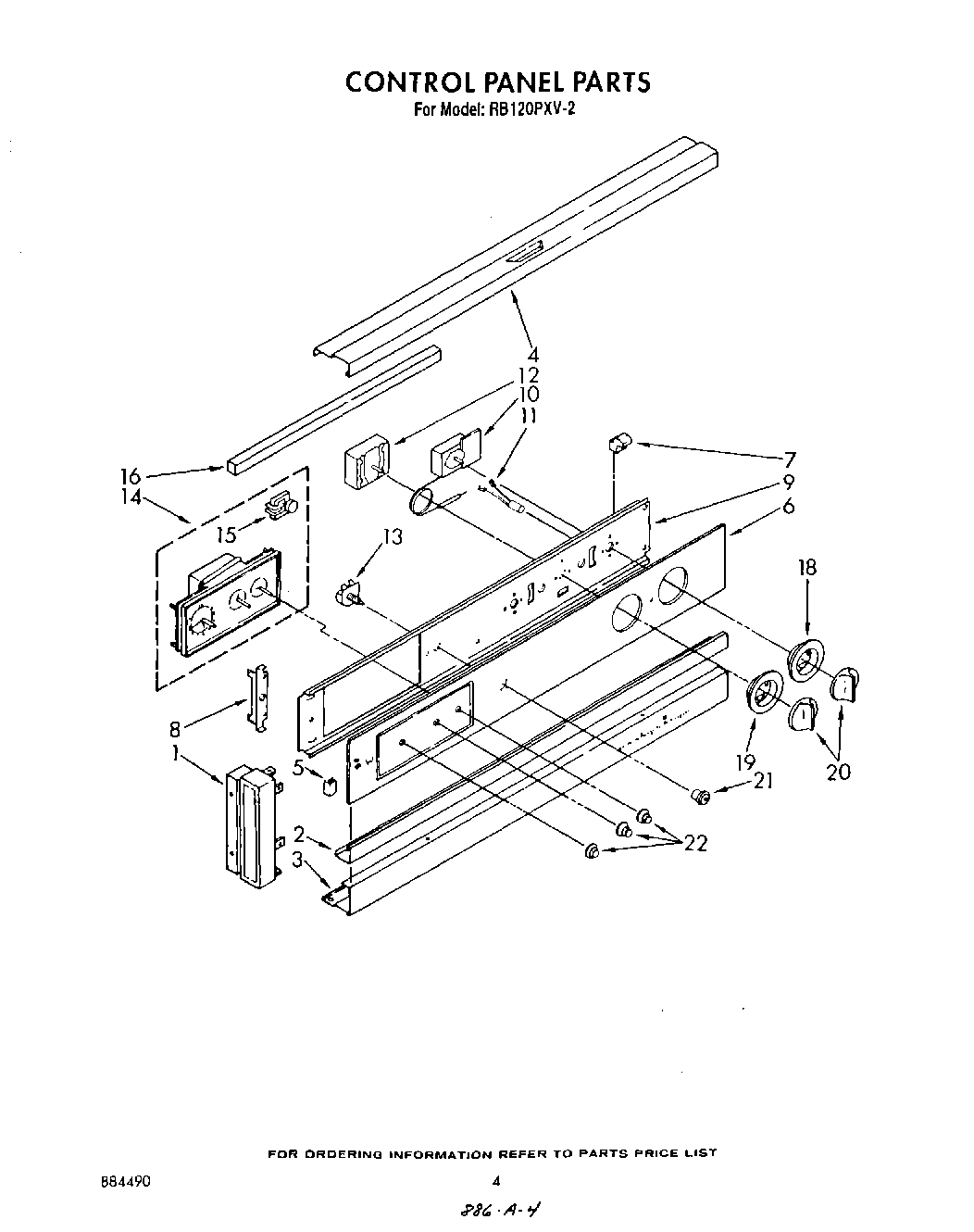

RB120PXV2 03 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

Position	Product
	screw, 6-32 x 1/4 (2)
	WPL LIT313358
	WPL LIT884490
	WPL LIT311435
	WPL LIT3148575
1	Washer
1	Screw
1	End Cap (Right Side)
1	End Cap (Left Side)
2	Trim, Center
3	Trim, Bottom
4	Trim, Upper
5	Rubber Channel (2) (Black Model Only)
6	Glass, Control Panel
7	Retainer, Glass (4)
8	panel, top (screw, 10a x 3/8 (3))
8	Bracket, Control Panel (2)
9	Screw
9	Control Bracket
10	Thermostat
10	Thermostat (Alt.)
10	Thermostat (Alt.)
11	Indicator Light (4)
12	Selector Switch (4 Position)
12	WP486579 Whirlpool Air Conditioner Screw
13	Switch, Oven Light
13	Lockwasher
14	Timer, Clock (Includes No.6)
14	WP965173 Whirlpool Dishwasher Screw
15	Motor, Timer
16	Rail, Top (Seal, Backguard)
18	Escutcheon, Thermostat
19	Screw,
19	WP311069 Whirlpool Oven Dial
20	WP3150371 Whirlpool Control Knob
21	Bezel Switch (1)
22	Wire, 25` Roll (Black 14 Ga.)
22	Wire, 25` Roll (Red 14 Ga.)
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	511873 Whirlpool Refrigerator Paint
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	350942 Whirlpool Spray Paint
22	Golden Harvest (Uncut)
22	Golden Harvest
22	350930 Whirlpool White Spray Paint
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
22	Wire, 25“ Roll (White 14 GA.)
22	Paint, Spray 13 Oz. (Avocado)
22	1
22	Touch-Up Oven (1 Oz.)
22	Wire (14 Ga. 200 c Brown)
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	242831 Whirlpool Oven Wire
22	paint, spray 13 oz. (coffee)
22	Enamel, Coffee (1 Qt. Uncut)
22	Spring (3)
22	WP3169181 Whirlpool Knob
22	285006 Whirlpool Spray
22	Wire (14 Ga. 150 c Brown)
22	72109 Whirlpool Dacor Avocado Touch-Up Paint
22	Grease
22	Paint, Touch-Up 1/2 Oz. (Coffee)
22	Leveler (Thinner) (2oz.)
22	Enamel, New Avocado (1 Qt. Uncut)
22	Wire (14 Ga. 150 c Blue)
