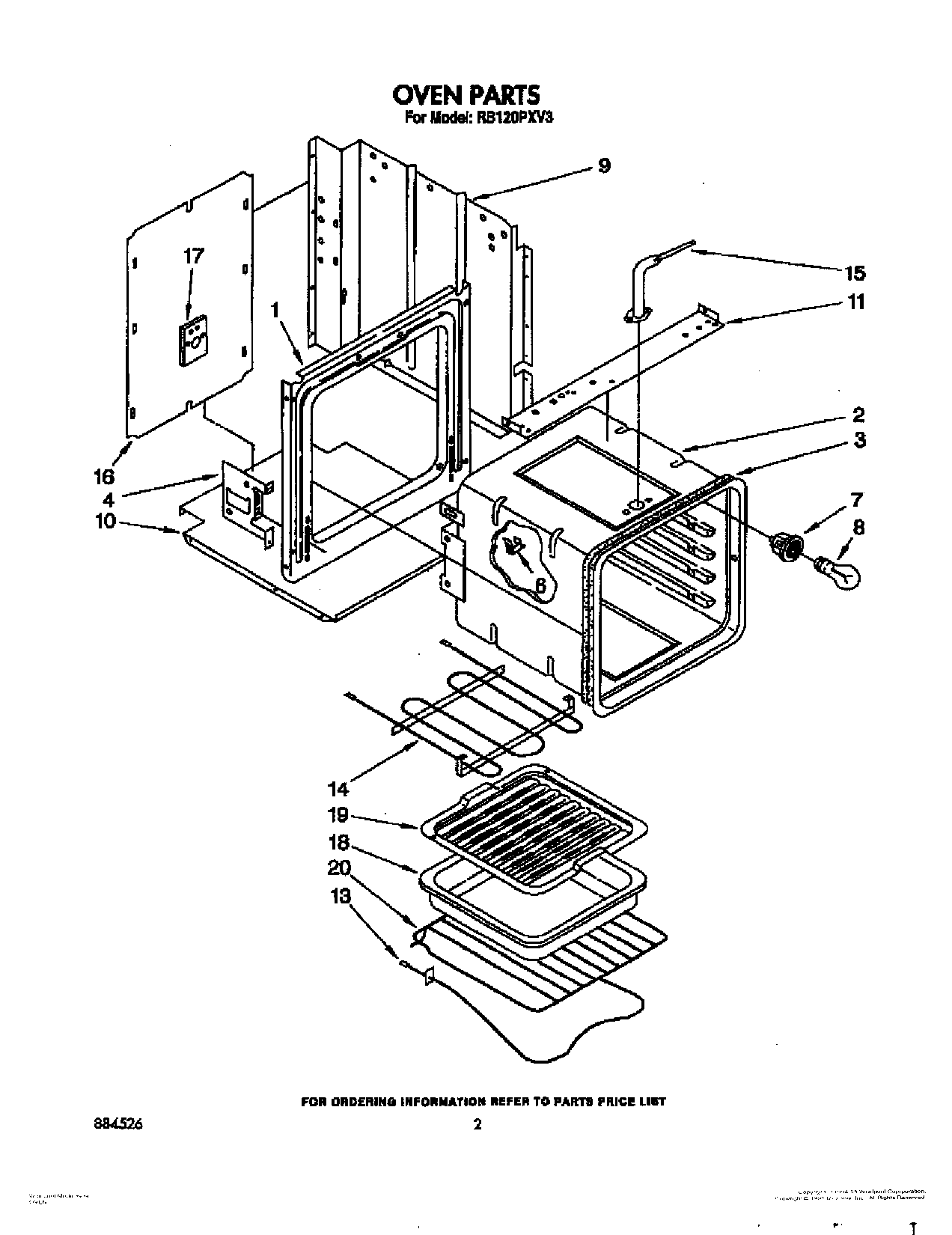

RB120PXV3 02 – OVEN

Products

Position	Product
1	Frame, Front
2	Main Back
2	Screw (3)
3	Heat Seal
4	Plate, Hinge (2)
4	Screw, 10-32 x 1/2
6	98005642 Whirlpool Clip
7	Socket, Oven Light
7	Screw (10-12 x .875)
8	RANGE ONLY 40W 120V APPL BULB
9	Screw
9	Side Wrapper (2)
10	Cover (Top)
10	Cover (Bottom)
11	Baffle, Top Insulation
13	326791 Whirlpool Range Oven Bake Element
14	Screw, 10-32 x 5/8 (4)
14	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
15	Vent, Oven
15	WP965173 Whirlpool Dishwasher Screw
16	Cover, Rear
16	WP308685 Whirlpool Microwave Screw
17	Plate, Service
18	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Rack, Oven (2)
