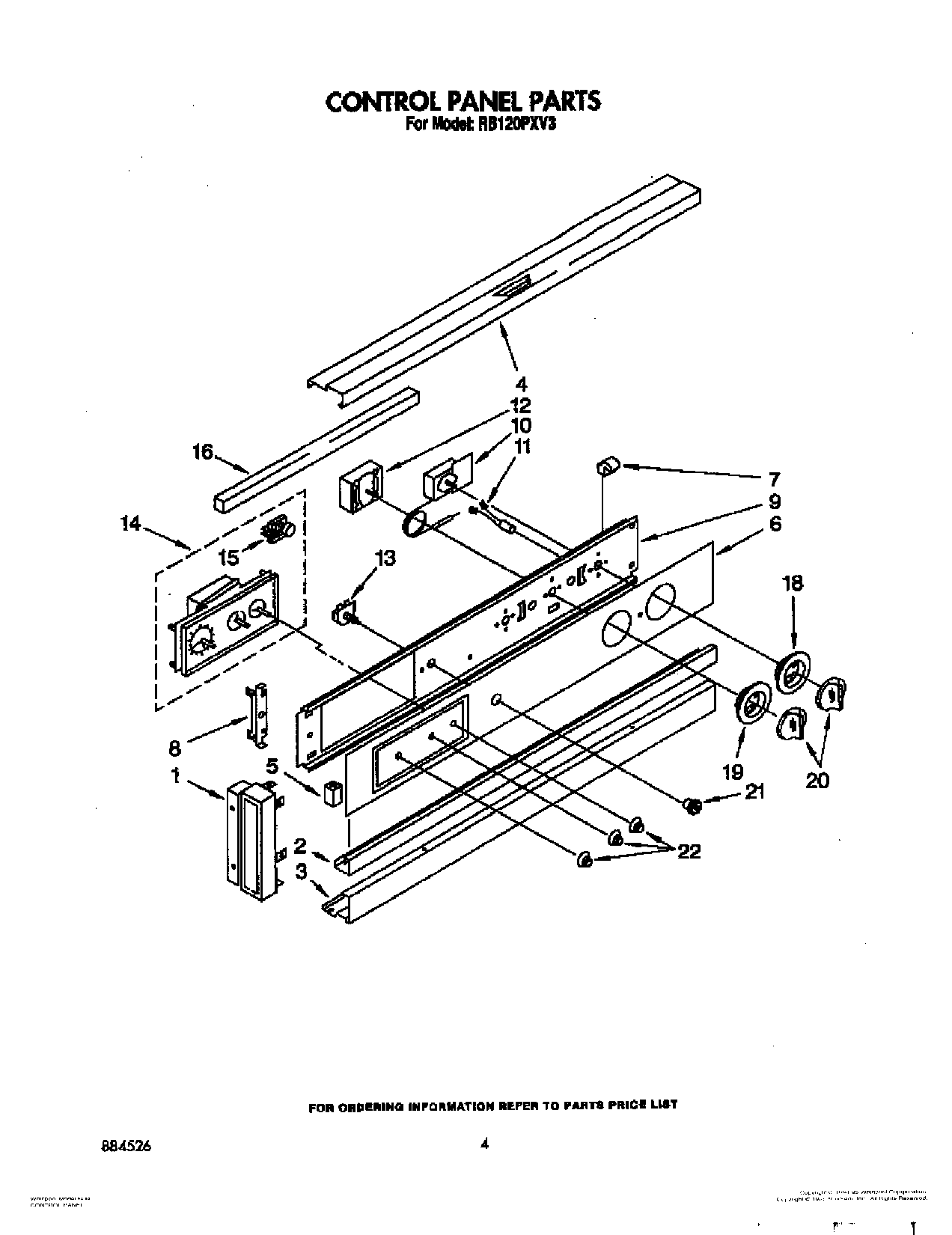

RB120PXV3 03 – CONTROL PANEL, LIT/OPTIONAL

RB120PXV3 03 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

RB120PXV3 03 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT311435
	WPL LIT313358
	WPL LIT884526
	WPL LIT3148575
1	Washer
1	Screw
1	End Cap (Right Side)
1	End Cap (Left Side)
2	Trim, Center
3	Trim, Bottom
4	Trim, Upper
5	Rubber Channel (2) (Black Model Only)
6	Glass, Control Panel
7	Retainer, Glass (4)
8	Bracket, Control Panel (2)
8	panel, top (screw, 10a x 3/8 (3))
9	Control Bracket
9	Screw
10	screw, 6-32 x 1/4 (2)
10	Thermostat
11	Indicator Light (4)
12	Selector Switch (4 Position)
12	WP486579 Whirlpool Air Conditioner Screw
13	Lockwasher
13	Switch, Oven Light
14	WP965173 Whirlpool Dishwasher Screw
14	Timer, Clock (Includes No.6)
15	Motor, Timer
16	Rail, Top (Seal, Backguard)
18	Escutcheon, Thermostat
19	WP311069 Whirlpool Oven Dial
19	Screw,
20	WP3150371 Whirlpool Control Knob
21	Bezel Switch (1)
22	WPW10208653 Whirlpool Insulation
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPL 799832
22	511873 Whirlpool Refrigerator Paint
22	Golden Harvest
22	350942 Whirlpool Spray Paint
22	350956 Whirlpool Spray Assembly
22	72017 Whirlpool Appliance Touch-Up Paint White
22	799344 Whirlpool Refrigerator Paint
22	WP72107 Whirlpool Touchup
22	Almond (Uncut)
22	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
22	350930 Whirlpool White Spray Paint
22	Golden Harvest (Uncut)
22	Wire, 25` Roll (Black 14 Ga.)
22	Spring (3)
22	WP3169181 Whirlpool Knob
22	paint, spray 13 oz. (coffee)
22	Wire (14 Ga. 200 c Brown)
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Paint, Spray 13 Oz. (Avocado)
22	242831 Whirlpool Oven Wire
22	1
22	Paint, Touch-Up 1/2 Oz. (Coffee)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25“ Roll (White 14 GA.)
22	Wire (14 Ga. 150 c Blue)
22	Grease
22	285006 Whirlpool Spray
22	Leveler (Thinner) (2oz.)
22	Enamel, New Avocado (1 Qt. Uncut)
22	Enamel, Coffee (1 Qt. Uncut)
22	72109 Whirlpool Dacor Avocado Touch-Up Paint
22	Touch-Up Oven (1 Oz.)
