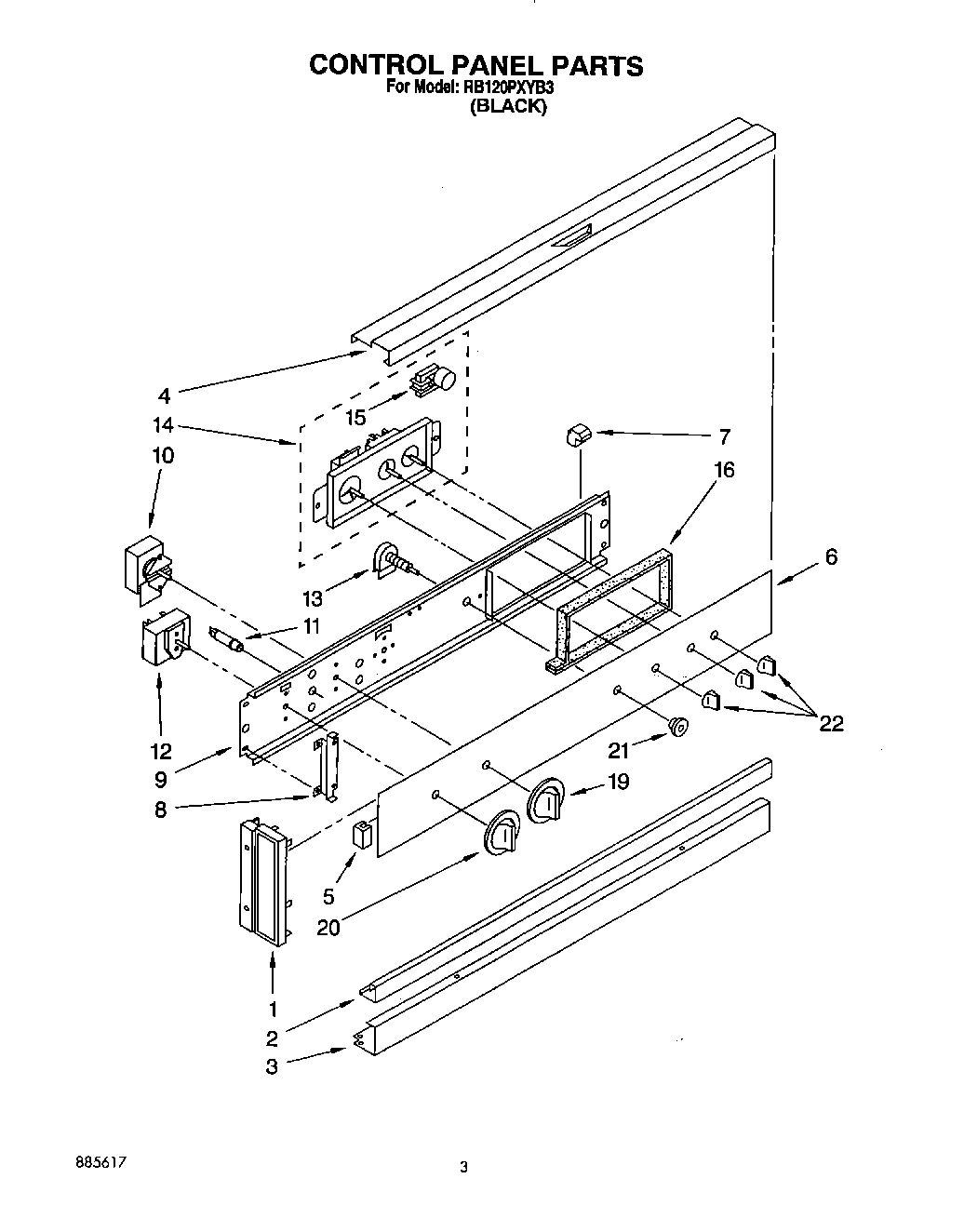

RB120PXYB3 02 – CONTROL PANEL, LIT/OPTIONAL

RB120PXYB3 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

RB120PXYB3 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3186641
	WPL LIT311435
	WPL LIT3183544
1	End Cap (Right Side)
1	End Cap (Left Side)
1	Washer
1	Screw
2	Trim, Center
3	Trim, Bottom
4	Trim, Upper
5	Rubber Channel (2) (Black Model Only)
6	Glass, Control Panel
7	Retainer, Glass (4)
8	panel, top (screw, 10a x 3/8 (3))
8	Bracket, Control Panel (2)
9	Screw
9	Bracket, Control Panel (2)
10	Thermostat
10	screw, 6-32 x 1/4 (2)
11	Indicator Light (4)
12	Hinge-Lt. or Rt.
12	Selector Switch (4 Position)
13	Switch, Oven Light
13	Lockwasher
14	WP965173 Whirlpool Dishwasher Screw
14	Timer, Control
15	Motor, Timer
16	Rail, Top (Seal, Backguard)
19	Knob, Thermostat
20	Knob, Selector
21	Bezel Switch (1)
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Blue)
22	350942 Whirlpool Spray Paint
22	511873 Whirlpool Refrigerator Paint
22	242831 Whirlpool Oven Wire
22	Grease
22	WPL 799832
22	Golden Harvest
22	Golden Harvest (Uncut)
22	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
22	Almond (Uncut)
22	18 Ga. 80~c Rating (Red)
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	350930 Whirlpool White Spray Paint
22	Wire, 25` Roll (Black 14 Ga.)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire (14 Ga. 200 c Brown)
22	Touch-Up Oven (1 Oz.)
22	1
22	Paint, Spray 13 Oz. (Avocado)
22	paint, spray 13 oz. (coffee)
22	Enamel, Coffee (1 Qt. Uncut)
22	Enamel, New Avocado (1 Qt. Uncut)
22	Leveler (Thinner) (2oz.)
22	Paint, Touch-Up 1/2 Oz. (Coffee)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Brown)
22	72109 Whirlpool Dacor Avocado Touch-Up Paint
22	WP3169181 Whirlpool Knob
22	285006 Whirlpool Spray
22	Wire (14 Ga. 150 c Green)
22	Wire, 25“ Roll (White 14 GA.)
22	WP72107 Whirlpool Touchup
