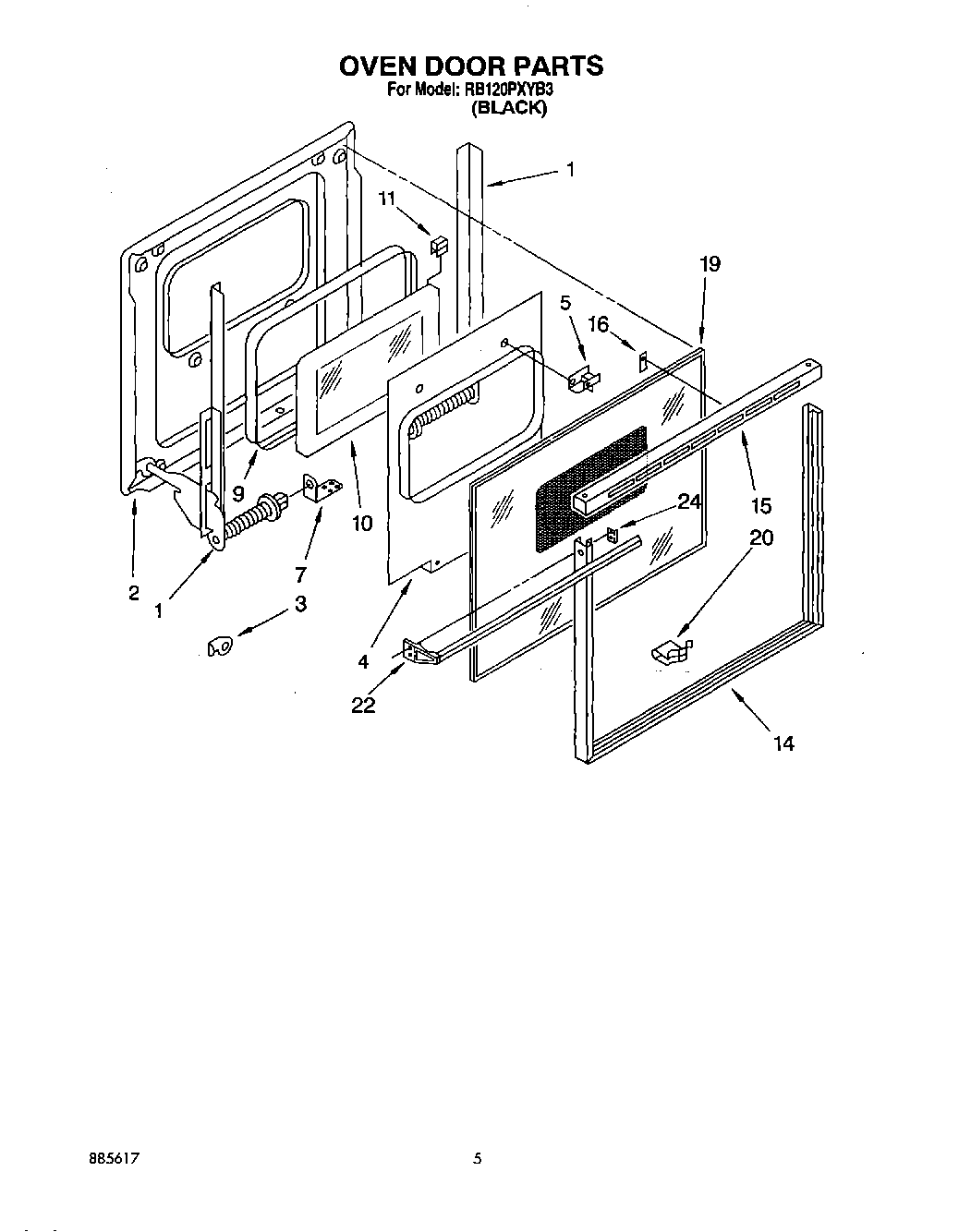

RB120PXYB3 03 – OVEN DOOR

Products

Position	Product
1	SCREW
1	Bar, Torsion (L.H.)
1	Bar, Torsion (R.H.)
1	Bar, Torsion (Pushnut (2))
2	Liner, Door
2	Nut, Snap-In (2)
2	panel, top (screw, 10a x 3/8 (3))
2	End Cap (Washer)
2	Screw (3)
3	Stop, Door (L.H.)
3	Stop, Door (Right Hand)
4	Baffle
5	Screw, 10A x 1/2 (2) (Black)
5	Channel, Rubber (4)
7	WP488627 Whirlpool Refrigerator Screw
7	Support, Torsion Bar (2)
9	Seal, Window
10	Glass, Inner
11	Spacer (4)
14	Frame, Door
15	Top, Door Frame
15	WP90296 Whirlpool Clip
16	hold down, glass (2)
19	Glass, Outer
20	clip, glass (10)
22	WP912618 Whirlpool Dishwasher Screw
22	Handle, Door
24	screw (3)
