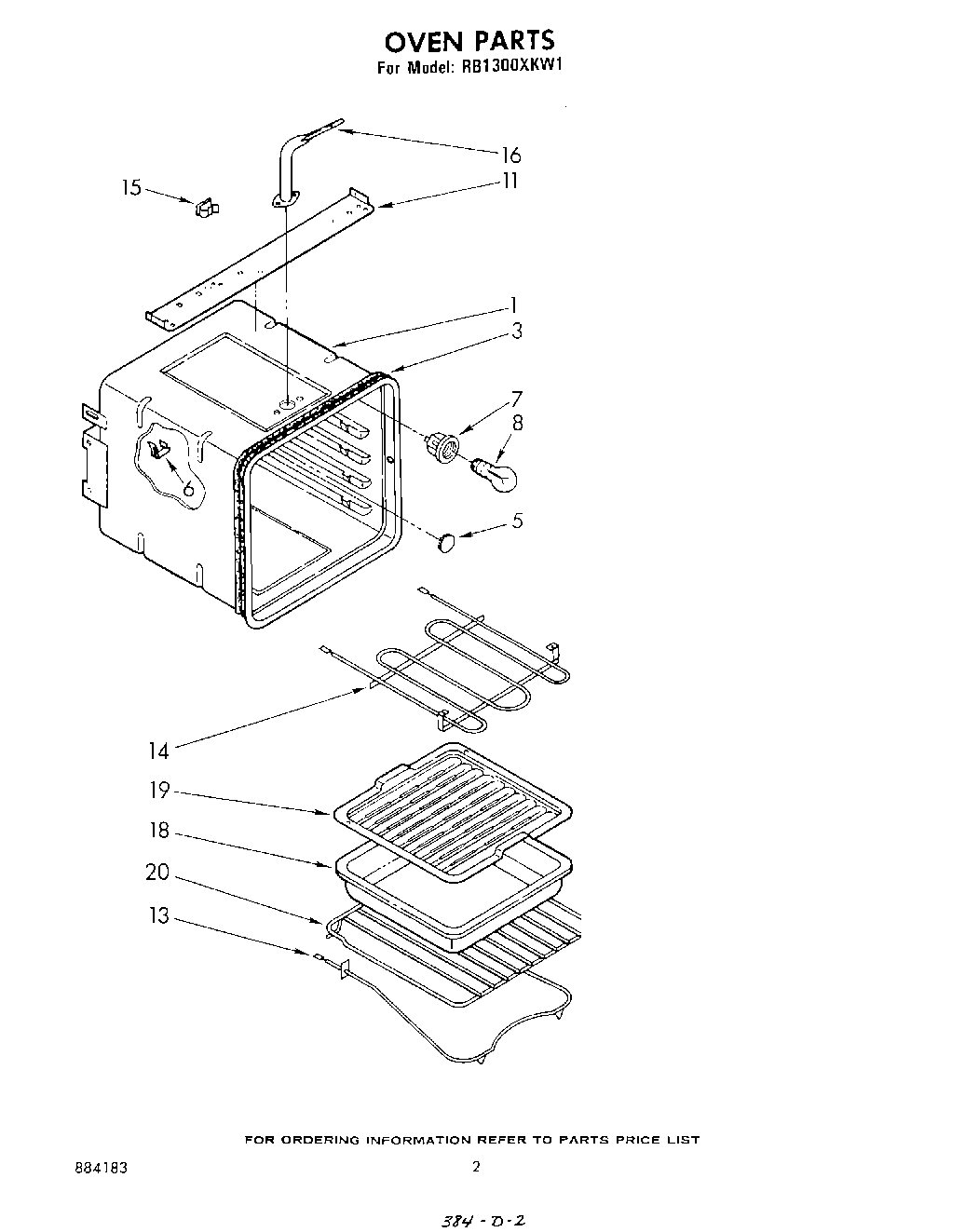

RB1300XKW1 02 – OVEN

Products

Position	Product
	Screw, 10-32 x 5/8 (4)
	Screw (10-12 x .875)
1	Main Back
1	Screw (3)
3	Seal, Oven
5	Plug Button
6	98005642 Whirlpool Clip
7	Socket, Oven Light
7	Socket, Oven Light (Alt.)
7	Socket, Oven Light (Alt.)
8	RANGE ONLY 40W 120V APPL BULB
11	Baffle, Top Insulation
13	326791 Whirlpool Range Oven Bake Element
14	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
15	Clip, Tube
16	Vent, Oven
16	WP965173 Whirlpool Dishwasher Screw
16	WP308685 Whirlpool Microwave Screw
16	Vent Tube (Lower Oven)
18	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Rack, Oven (2)
