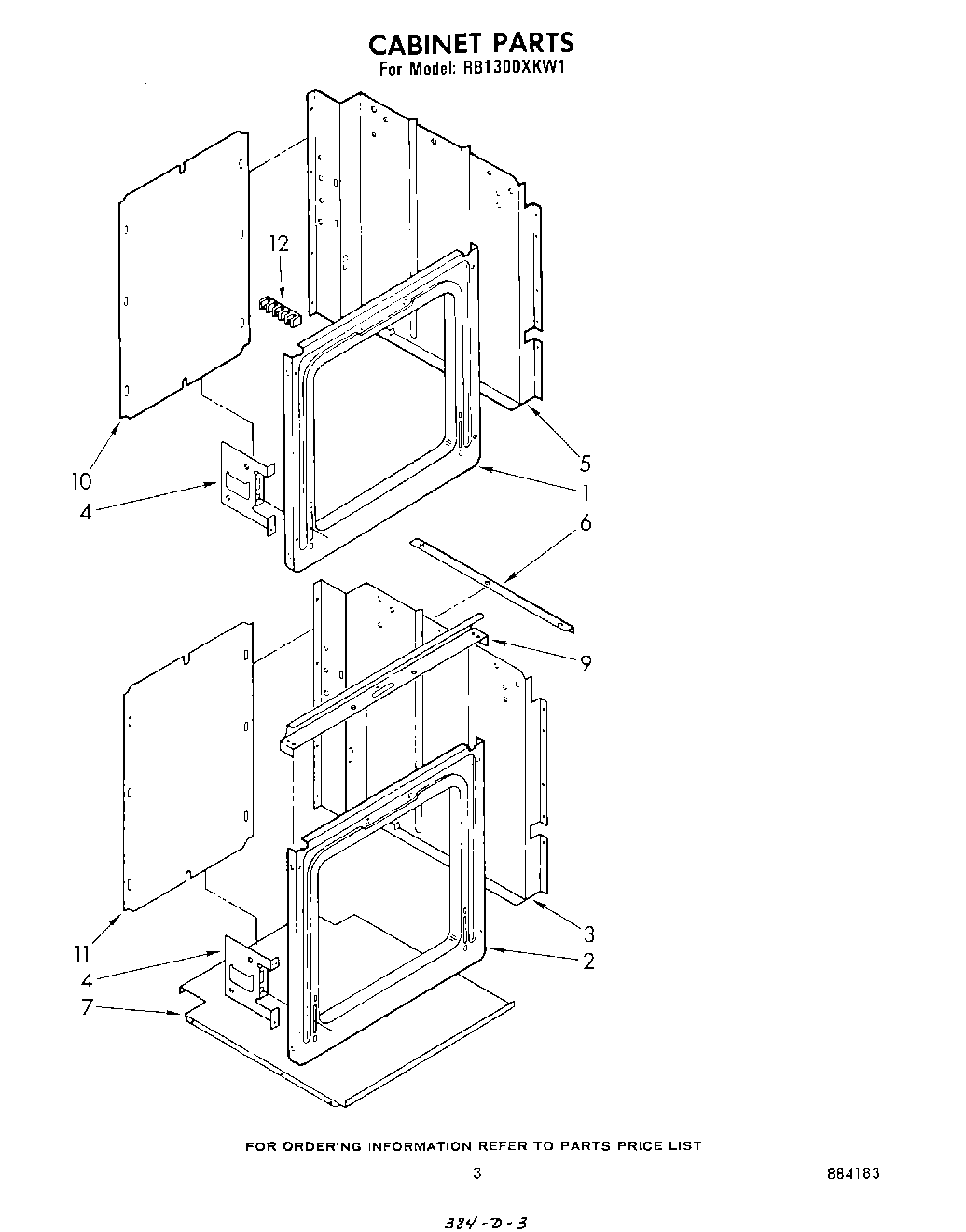

| 1 | Frame, Front (Upper Oven) |
| 2 | Black 2141B |
| 3 | Side Wrapper (2) |
| 4 | Plate, Hinge (2) |
| 4 | Screw, 10-32 x 1/2 |
| 5 | Wrapper Side (L.H.) |
| 5 | Screw |
| 5 | Wrapper Side (R.H.) |
| 6 | Support Angle (2) |
| 7 | Cover (Bottom) |
| 7 | Cover (Top) |
| 9 | Vent Hood (24``) |
| 9 | Screw, 10A x 1/2 (2) (Black) |
| 10 | Rear Cover (Double Oven) |
| 10 | WP308685 Whirlpool Microwave Screw |
| 11 | Cover, Rear |
| 12 | WP8203546 Whirlpool Terminal Block |
| 12 | W10841059 Whirlpool Screw |
| 12 | WP112432 Whirlpool Nut Assembly |
