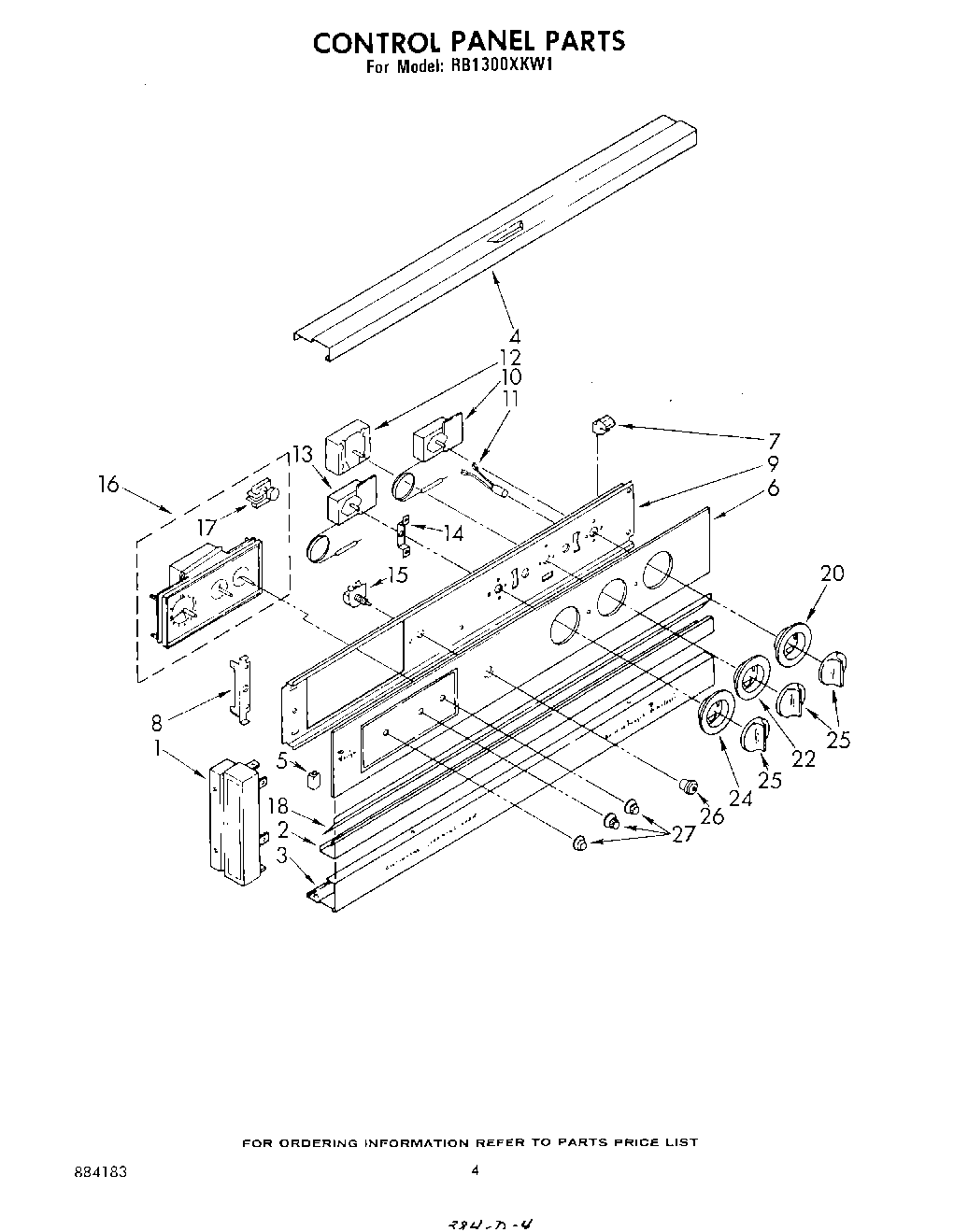

RB1300XKW1 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

RB1300XKW1 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Written by

in

RB1300XKW1 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT311419
Instructions, Installation
WPL LIT884183
screw, 6-32 x 1/4 (2)
WPL LIT313358
1End Cap (Left Side)
1End Cap (Right Side)
1Screw
2Trim, Center
3Trim, Bottom
4Trim, Upper
5Rubber Channel (2) (Black Model Only)
6Panel, Control Glass
7Retainer, Glass (4)
8Bracket, Control Panel (2)
8panel, top (screw, 10a x 3/8 (3))
9Control Bracket
9Washer
9Screw, 10-32 x 5/8 (4)
9Screw
10Thermostat (Alt.)
10Thermostat
10Thermostat (Alt.)
11Indicator Light (250V)
12Selector Switch (4 Position)
12WP486579 Whirlpool Air Conditioner Screw
13Thermostat, Oven (Lower)
14Screw (2)
14WP313808 Whirlpool Screw
14Bracket, Thermostat
15Lockwasher
15Switch, Oven Light
16Timer, Automatic (Includes Illus. 15)
17Motor, Timer
18WP965173 Whirlpool Dishwasher Screw
18Rail, Top (Seal, Backguard)
20Escutcheon, Thermostat
22WP311069 Whirlpool Oven Dial
22Screw,
24Escutcheon Thermostat (Lower)
25WP3150371 Whirlpool Control Knob
26Bezel Switch (1)
27Spring (3)
27WP3169181 Whirlpool Knob
27350942 Whirlpool Spray Paint
27Grease
27Leveler (Thinner) (2oz.)
27Wire, 25“ Roll (White 14 GA.)
27Wire, 25` Roll (Red 14 Ga.)
27Wire, 25` Roll (Black 14 Ga.)
27FOIL, ALUMINUM OVEN (18“ X 25 )
27WPW10208653 Whirlpool Insulation
27WPL 799832
27511873 Whirlpool Refrigerator Paint
27Golden Harvest (Uncut)
27Golden Harvest
2772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27Almond (Uncut)
27WP72107 Whirlpool Touchup
27799344 Whirlpool Refrigerator Paint
2772017 Whirlpool Appliance Touch-Up Paint White
27350956 Whirlpool Spray Assembly
27285006 Whirlpool Spray
2772109 Whirlpool Dacor Avocado Touch-Up Paint
27Enamel, New Avocado (1 Qt. Uncut)
27Enamel, Coffee (1 Qt. Uncut)
27Wire (14 Ga. 150 c Green)
271
27Wire (14 Ga. 200 c Brown)
2718 Ga. 80~c Rating (Red)
27Wire (12 Ga. 150 c Black)
27Wire (14 Ga. 150 c Orange)
27Wire (14 Ga. 150 c Brown)
27Wire (14 Ga. 150 c Blue)
27242831 Whirlpool Oven Wire
27Touch-Up Oven (1 Oz.)
27Paint, Spray 13 Oz. (Avocado)
27paint, spray 13 oz. (coffee)
27Paint, Touch-Up 1/2 Oz. (Coffee)
27350930 Whirlpool White Spray Paint
