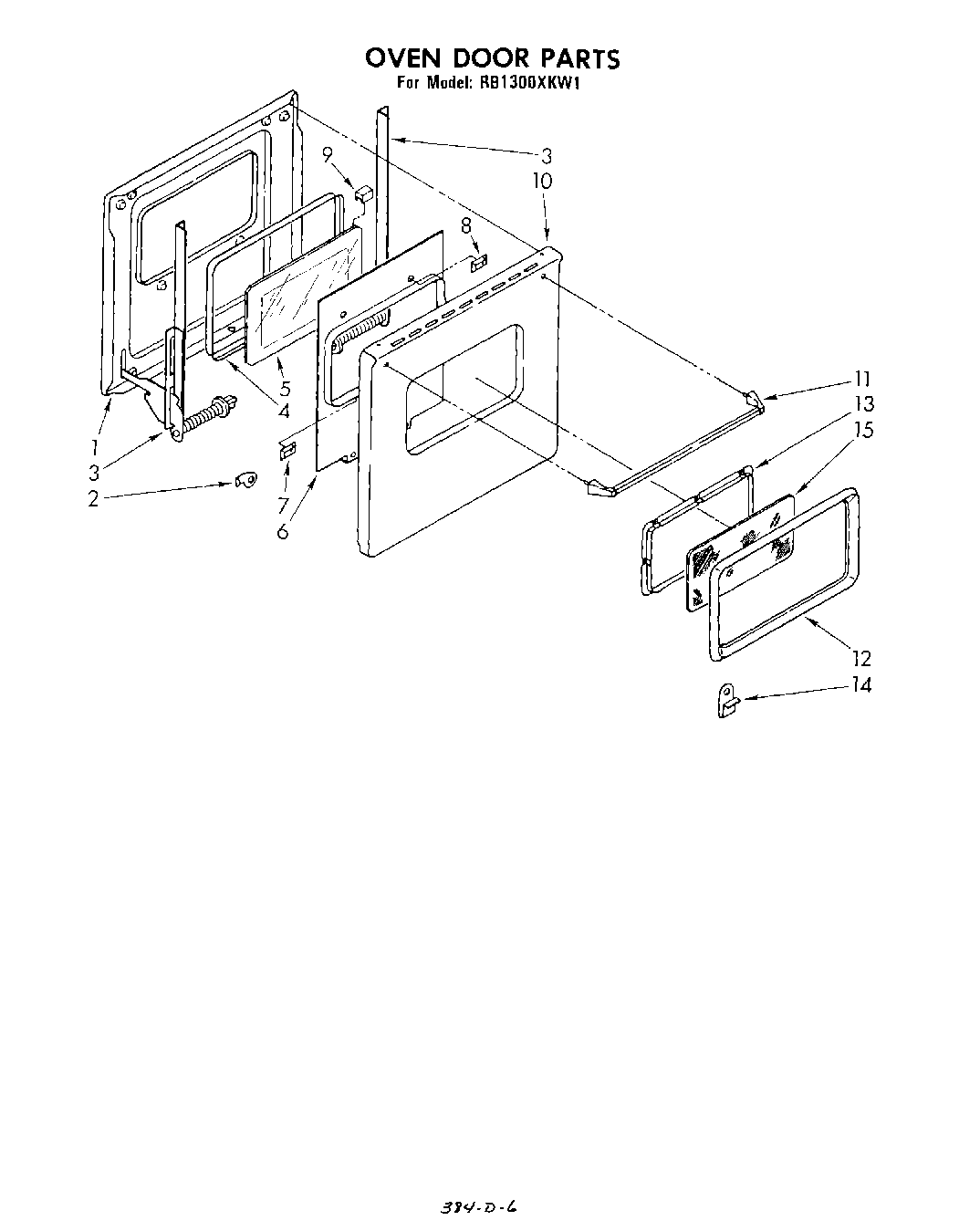

RB1300XKW1 05 – OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Washer, Fiber
1	Screw (3)
1	WP965173 Whirlpool Dishwasher Screw
2	Stop, Door (L.H.)
2	Stop, Door (Right Hand)
3	Bar, Torsion (L.H.)
3	Bar, Torsion (R.H.)
3	SCREW
3	Bar, Torsion (Pushnut (2))
4	Seal, Window
5	Glass, Inner
6	Baffle, Insulation
8	Screw, 10A x 1/2 (2) (Black)
8	spacer, insulation baffle (4)
9	Channel, Rubber (4)
10	Panel, Oven Door (White)
10	Panel, Oven Door (Almond)
10	Panel, Oven Door (Toast)
10	Panel, Oven Door (Harvest Gold)
10	panel, top (screw, 10a x 3/8 (3))
10	Panel, Oven Door (Platinum)
11	WP308499 Whirlpool Nut
11	Handle, Oven Door
11	Nut, Snap-In (2)
12	Frame, Window
13	Retainer, Glass
14	Clip, Frame
15	Hinge-Lt. or Rt.
15	Glass, Outer
15	Screw
