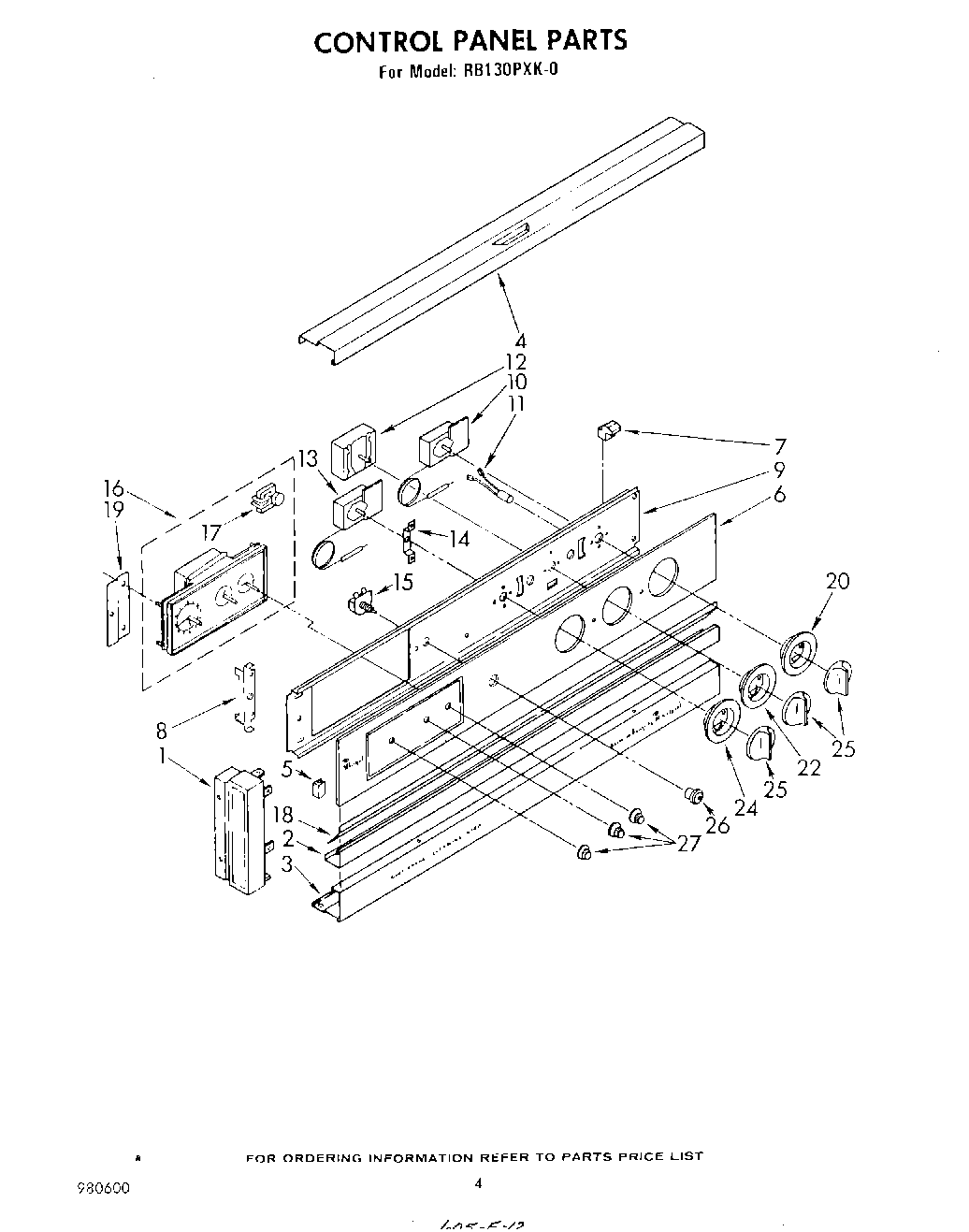

RB130PXK0 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

Position	Product
	Almond (Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	Golden Harvest (Uncut)
	511873 Whirlpool Refrigerator Paint
	799344 Whirlpool Refrigerator Paint
	Enamel, Coffee (1 Qt. Uncut)
1	End Cap (Right Side)
1	End Cap (Left Side)
2	Trim, Center
3	Screw (2)
3	Mounting Screw (Inc`s 86)
4	Trim, Upper
5	Rubber Channel (2) (Black Model Only)
6	Panel, Control Glass
7	Retainer, Glass (4)
8	Bracket, Control Panel (2)
9	Screw, 10-32 x 5/8 (4)
9	Control Bracket
10	screw, 6-32 x 1/4 (2)
10	Thermostat (Alt.)
10	Thermostat (Alt.)
11	Indicator Light (250V)
12	Selector Switch (4 Position)
12	WP486579 Whirlpool Air Conditioner Screw
13	Thermostat, Oven (Lower)
14	Screw (2)
14	Bracket, Thermostat
15	nut, 3/8 x 27
15	Switch, Oven Light
16	Timer, Automatic (Alternate)
16	Timer, Automatic (Palnut (Timer))
16	Timer, Automatic (Alternate (Includes Illus. 17))
17	Motor, Timer
18	Seal, Backguard
19	Bracket, Timer
19	WP965173 Whirlpool Dishwasher Screw
20	Escutcheon, Thermostat
22	Screw,
22	WP311069 Whirlpool Oven Dial
24	Escutcheon Thermostat (Lower)
24	WP488627 Whirlpool Refrigerator Screw
25	WP3150371 Whirlpool Control Knob
26	bezel, switch (2)
27	Grease
27	Wire, 25` Roll (Black 14 Ga.)
27	WPL 980600
27	Wire, 25` Roll (Red 14 Ga.)
27	WPL 311510
27	WPL 311419
27	Wire, 25“ Roll (White 14 GA.)
27	285006 Whirlpool Spray
27	350930 Whirlpool White Spray Paint
27	FOIL, ALUMINUM OVEN (18“ X 25 )
27	WPW10208653 Whirlpool Insulation
27	WPL 799832
27	350942 Whirlpool Spray Paint
27	Golden Harvest
27	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27	WP72107 Whirlpool Touchup
27	72017 Whirlpool Appliance Touch-Up Paint White
27	72109 Whirlpool Dacor Avocado Touch-Up Paint
27	Paint, Touch-Up 1/2 Oz. (Coffee)
27	WPL 799351
27	WPL 308500
27	Leveler (Thinner) (2oz.)
27	1
27	Wire (14 Ga. 150 c Green)
27	knob, timer
27	Wire (14 Ga. 200 c Brown)
27	18 Ga. 80~c Rating (Red)
27	Wire (12 Ga. 150 c Black)
27	Wire (14 Ga. 150 c Orange)
27	Wire (14 Ga. 150 c Brown)
27	Wire (14 Ga. 150 c Blue)
27	242831 Whirlpool Oven Wire
27	Touch-Up Oven (1 Oz.)
27	Paint, Spray 13 Oz. (Avocado)
27	paint, spray 13 oz. (coffee)
27	350956 Whirlpool Spray Assembly
