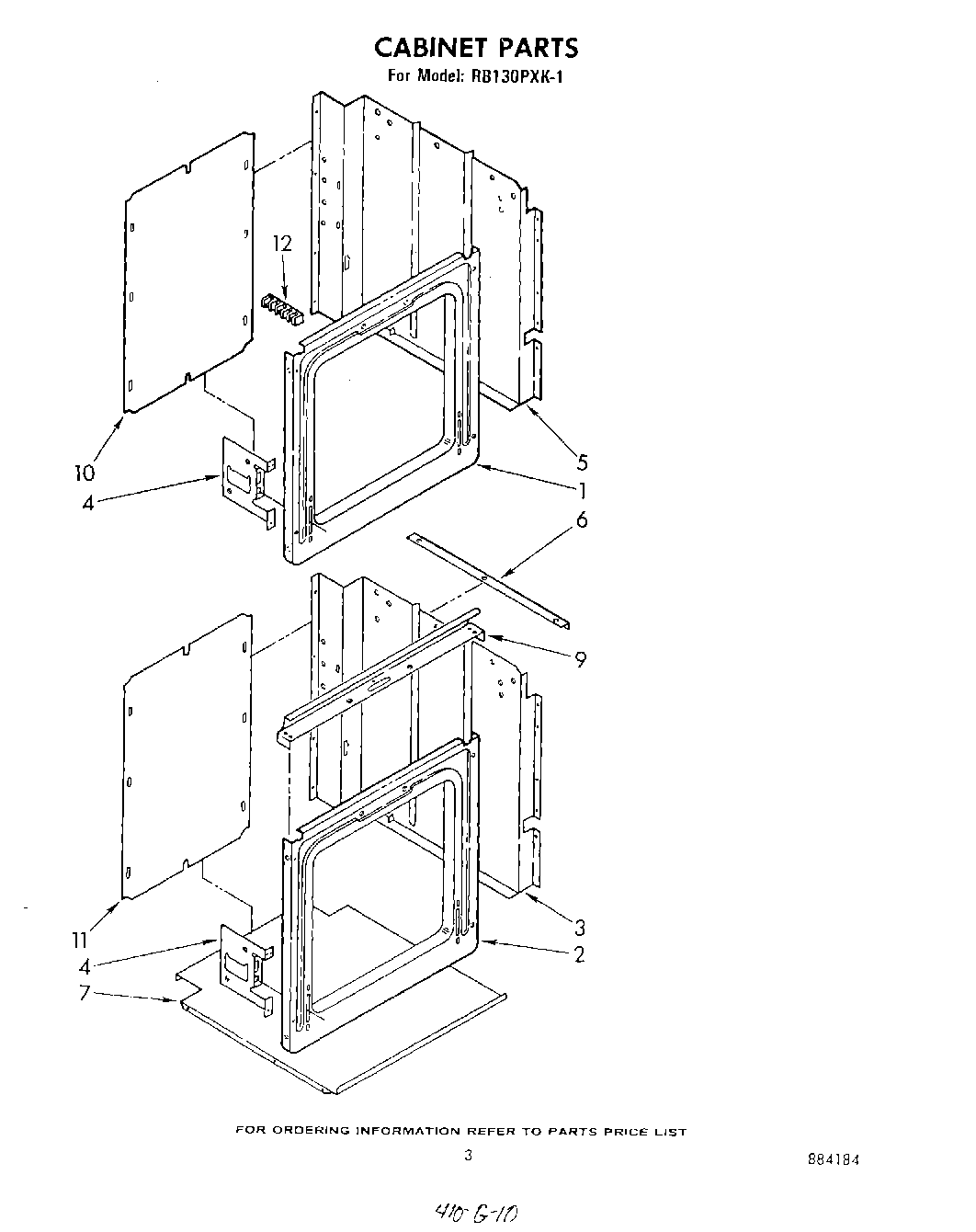

RB130PXK1 03 – CABINET

Products

Position	Product
1	Frame, Front (Upper Oven)
2	Black 2141B
3	Side Wrapper (2)
4	Plate, Hinge (2)
4	Screw, 10-32 x 1/2
5	Wrapper Side (L.H.)
5	Wrapper Side (R.H.)
5	WP488627 Whirlpool Refrigerator Screw
6	Support Angle (2)
7	Cover (Bottom)
7	Cover (Top)
9	Screw, 10A x 1/2 (2) (Black)
9	Vent Hood (24“)
10	Rear Cover (Double Oven)
10	WP308685 Whirlpool Microwave Screw
11	Cover, Rear
12	WP112432 Whirlpool Nut Assembly
12	W10841059 Whirlpool Screw
12	WP8203546 Whirlpool Terminal Block
