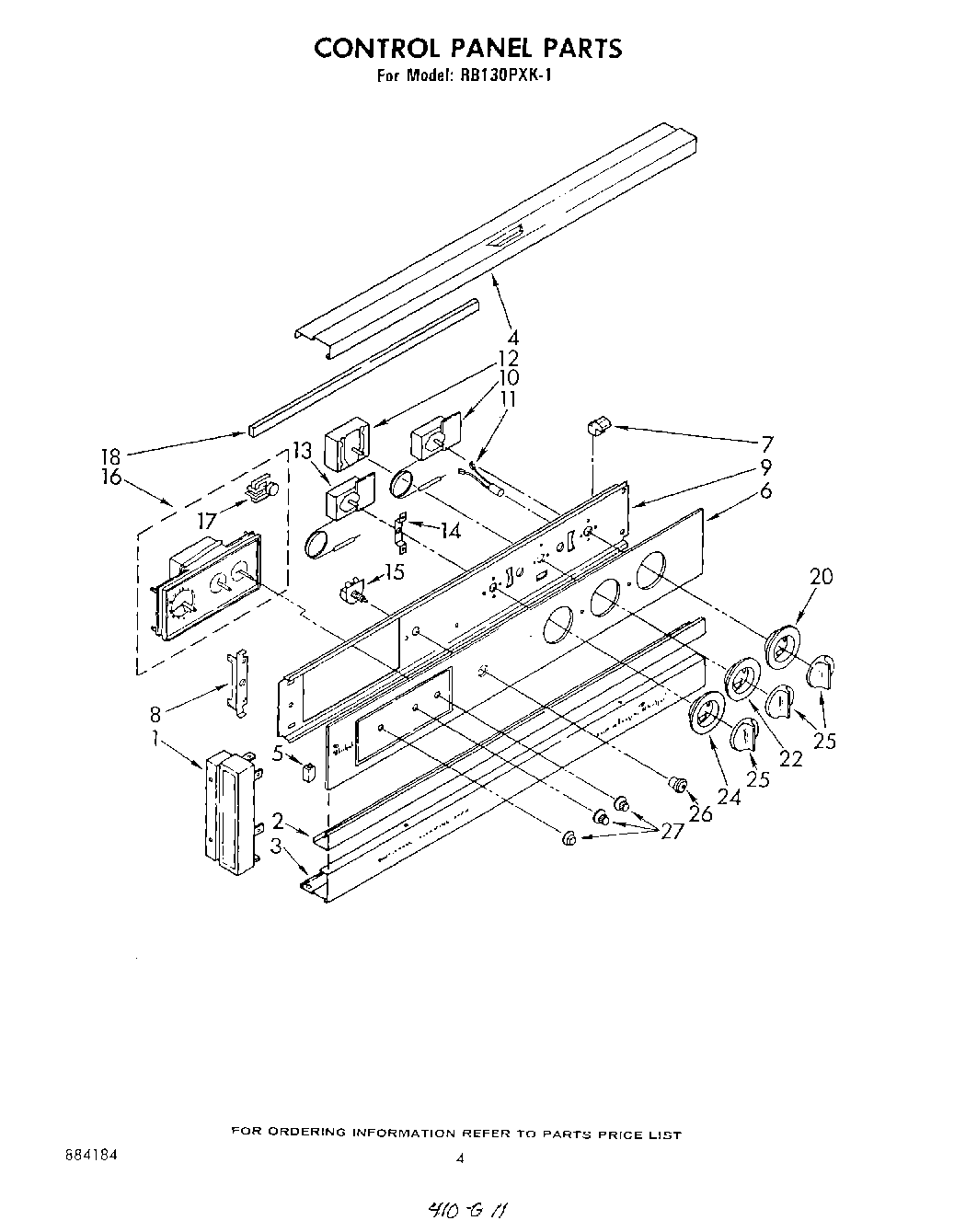

RB130PXK1 04 – CONTROL , LITERATURE AND OPTIONAL

Products

Position	Product
	screw, 6-32 x 1/4 (2)
	WPL LIT884184
	WPL LIT311419
	Instructions, Installation
	WPL LIT313358
1	WP488627 Whirlpool Refrigerator Screw
1	End Cap (Left Side)
1	Screw
1	Washer
1	End Cap (Right Side)
2	Trim, Center
3	WP965173 Whirlpool Dishwasher Screw
3	Trim, Bottom
4	Trim, Upper
5	Rubber Channel (2) (Black Model Only)
6	Panel, Control Glass
7	Retainer, Glass (4)
8	Bracket, Control Panel (2)
9	Screw, 10-32 x 5/8 (4)
9	Control Bracket
10	Thermostat (Alt.)
10	Thermostat
10	Thermostat (Alt.)
11	Indicator Light (250V)
12	WP486579 Whirlpool Air Conditioner Screw
12	Selector Switch (4 Position)
13	Thermostat, Oven (Lower)
14	Bracket, Thermostat
14	WP313808 Whirlpool Screw
15	Switch, Oven Light
15	Lockwasher
16	Timer, Automatic (Includes Illus. 15)
17	Motor, Timer
18	Rail, Top (Seal, Backguard)
20	Escutcheon, Thermostat
22	Screw,
22	WP311069 Whirlpool Oven Dial
24	Escutcheon Thermostat (Lower)
25	WP3150371 Whirlpool Control Knob
26	Bezel Switch (1)
27	WP3169181 Whirlpool Knob
27	Spring (3)
27	350930 Whirlpool White Spray Paint
27	Touch-Up C
27	Grease
27	Leveler (Thinner) (2oz.)
27	Wire, 25` Roll (Red 14 Ga.)
27	Wire, 25` Roll (Black 14 Ga.)
27	FOIL, ALUMINUM OVEN (18“ X 25 )
27	WPW10208653 Whirlpool Insulation
27	WPL 799832
27	511873 Whirlpool Refrigerator Paint
27	350942 Whirlpool Spray Paint
27	Golden Harvest (Uncut)
27	Golden Harvest
27	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27	Almond (Uncut)
27	WP72107 Whirlpool Touchup
27	799344 Whirlpool Refrigerator Paint
27	72017 Whirlpool Appliance Touch-Up Paint White
27	Wire, 25“ Roll (White 14 GA.)
27	285006 Whirlpool Spray
27	72109 Whirlpool Dacor Avocado Touch-Up Paint
27	Enamel, New Avocado (1 Qt. Uncut)
27	Enamel, Coffee (1 Qt. Uncut)
27	Wire (14 Ga. 150 c Green)
27	1
27	Wire (14 Ga. 200 c Brown)
27	18 Ga. 80~c Rating (Red)
27	Wire (12 Ga. 150 c Black)
27	Wire (14 Ga. 150 c Orange)
27	Wire (14 Ga. 150 c Brown)
27	Wire (14 Ga. 150 c Blue)
27	242831 Whirlpool Oven Wire
27	Paint, Spray 13 Oz. (Avocado)
27	paint, spray 13 oz. (coffee)
27	Paint, Touch-Up 1/2 Oz. (Coffee)
27	350956 Whirlpool Spray Assembly
