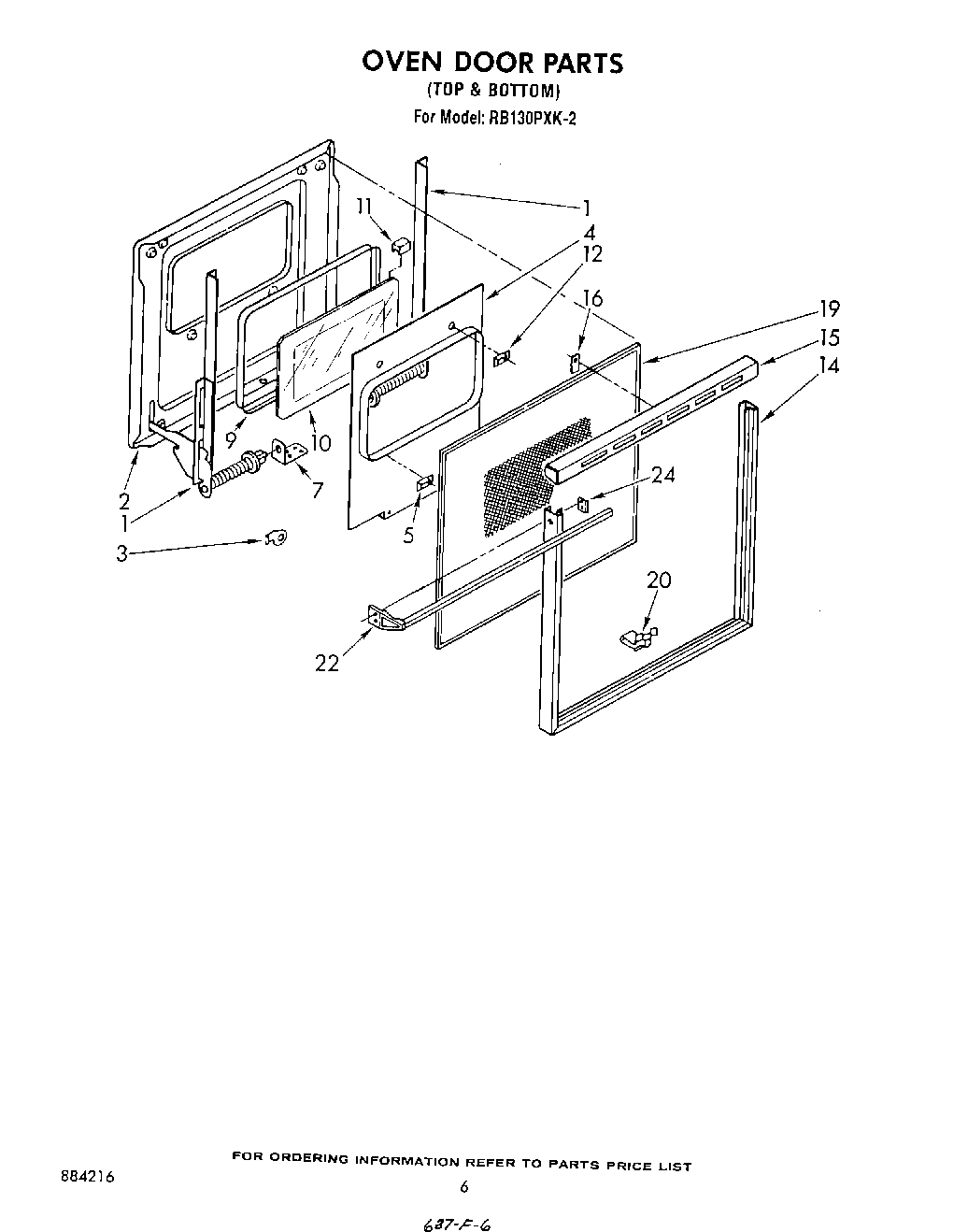

RB130PXK2 05 – OVEN DOOR

Products

Position	Product
1	SCREW
1	Bar, Torsion (L.H.)
1	Bar, Torsion (R.H.)
1	Bar, Torsion (Pushnut (2))
2	Liner, Door
2	Washer, Fiber
2	Nut, Snap-In (2)
2	panel, top (screw, 10a x 3/8 (3))
2	Screw (3)
3	Stop, Door (Right Hand)
3	Stop, Door (L.H.)
4	Baffle
5	Screw, 10A x 1/2 (2) (Black)
7	Support, Torsion Bar (2)
9	Seal, Window
10	Glass, Inner
11	Channel, Rubber (4)
12	spacer, insulation baffle (4)
12	WP308685 Whirlpool Microwave Screw
14	Frame, Door
15	Top, Door Frame
15	WP90296 Whirlpool Clip
16	hold down, glass (2)
19	Glass, Outer
20	clip, glass (10)
22	Handle, Door
22	WP912618 Whirlpool Dishwasher Screw
24	screw (3)
