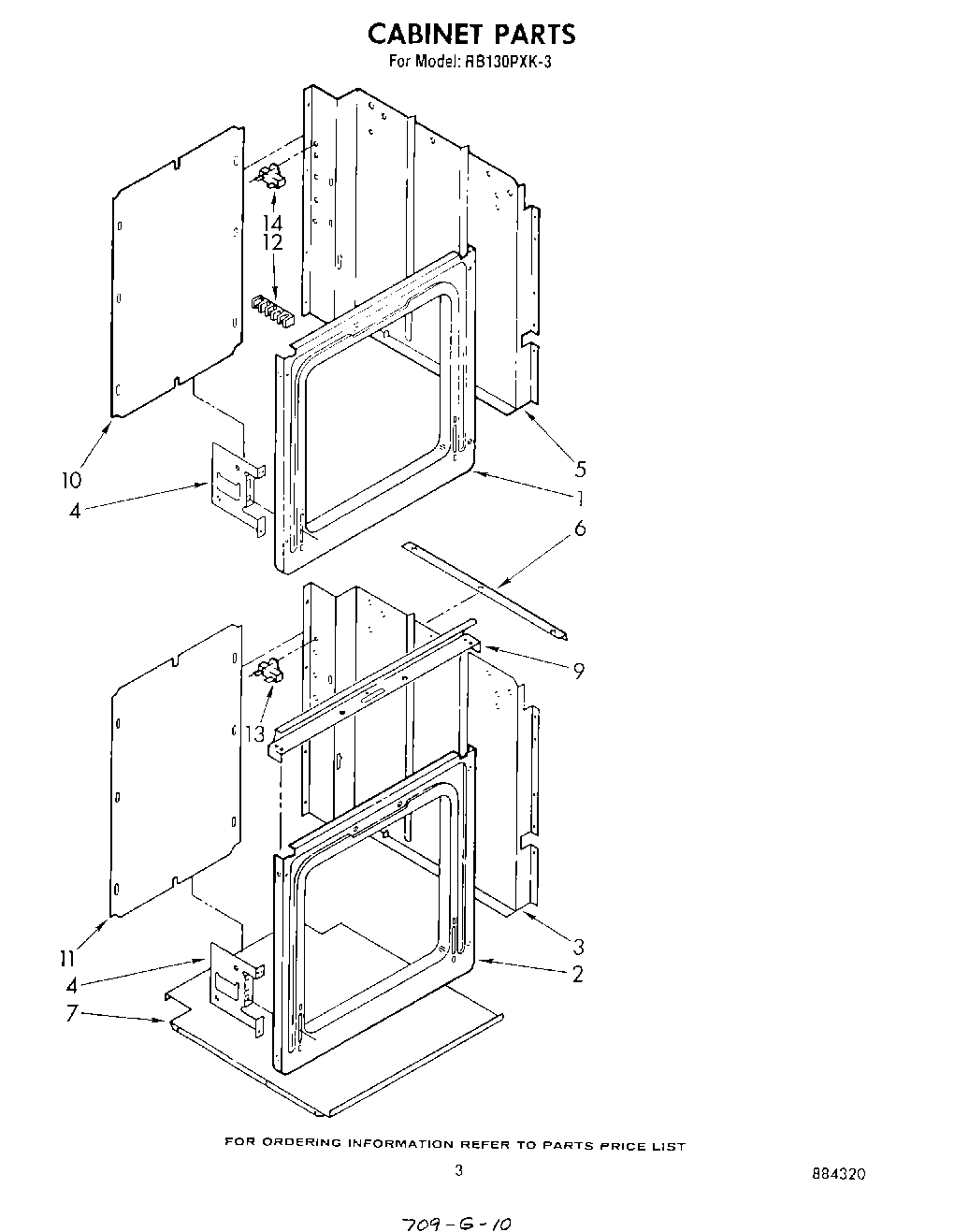

RB130PXK3 03 – CABINET

Products

Position	Product
1	Frame, Front (Upper Oven)
2	Black 2141B
3	Side Wrapper (2)
4	Plate, Hinge (2)
4	Screw, 10-32 x 1/2
5	Wrapper Side (R.H.)
5	WP488627 Whirlpool Refrigerator Screw
5	Wrapper Side (L.H.)
6	Support Angle (2)
7	Cover (Top)
7	Cover (Bottom)
9	Screw, 10A x 1/2 (2) (Black)
9	Vent Hood (24“)
10	Rear Cover (Double Oven)
10	WP308685 Whirlpool Microwave Screw
11	Cover, Rear
12	WP8203546 Whirlpool Terminal Block
12	WP112432 Whirlpool Nut Assembly
12	W10841059 Whirlpool Screw
13	WPL 3147621
14	screw
14	Fuse, Thermal
