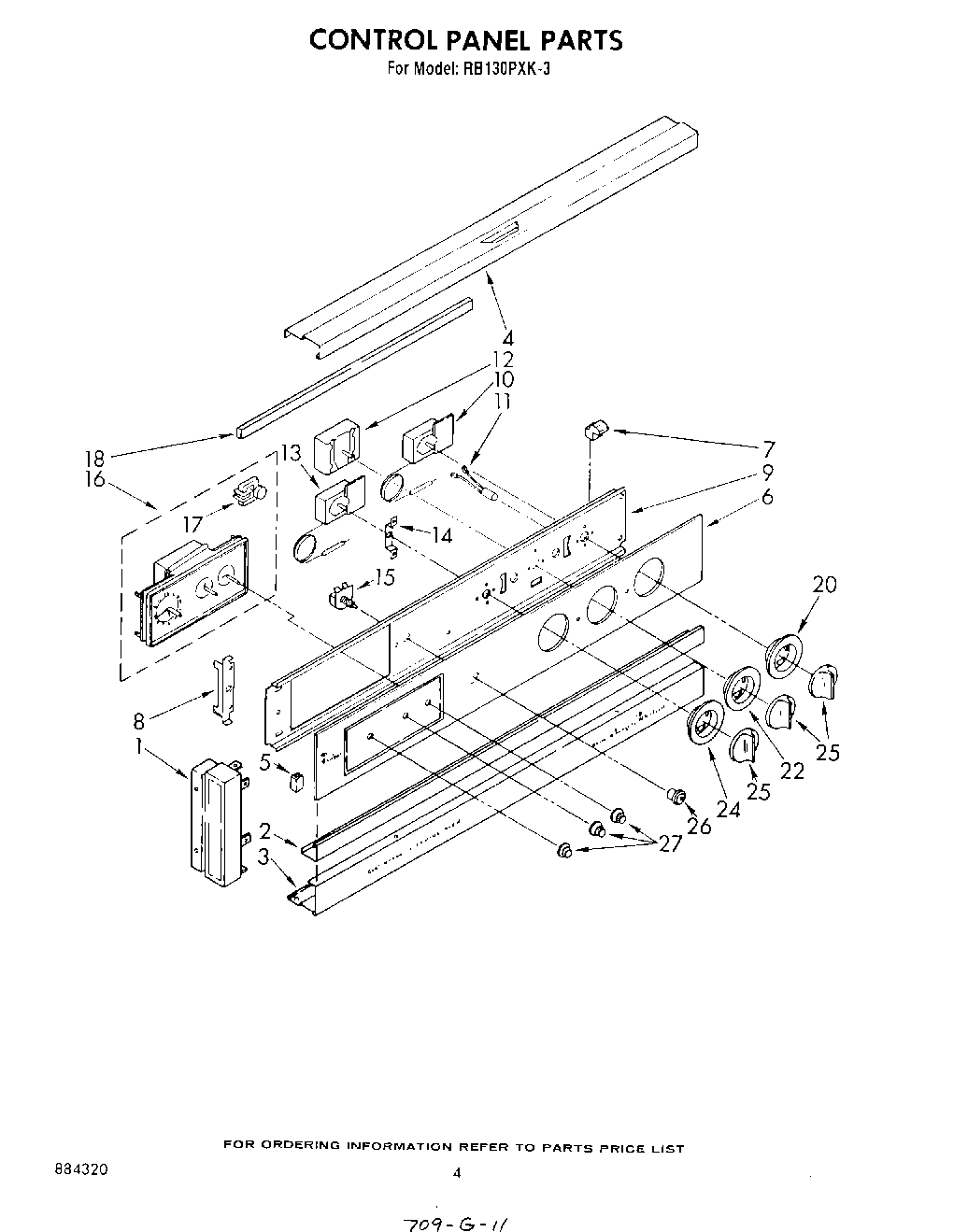

RB130PXK3 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

PositionProduct
screw, 6-32 x 1/4 (2)
WPL LIT884320
Instructions, Installation
WPL LIT311419
WPL LIT313358
1End Cap (Right Side)
1Washer
1End Cap (Left Side)
1Screw
1WP488627 Whirlpool Refrigerator Screw
2Trim, Center
3WP965173 Whirlpool Dishwasher Screw
3Trim, Bottom
4Trim, Upper
5Rubber Channel (2) (Black Model Only)
6Panel, Control Glass
7Retainer, Glass (4)
8Bracket, Control Panel (2)
9Control Bracket
9Screw
9Screw, 10-32 x 5/8 (4)
10Thermostat (Alt.)
10Thermostat
10Thermostat (Alt.)
11Indicator Light (4)
12WP486579 Whirlpool Air Conditioner Screw
12Selector Switch (4 Position)
13Thermostat, Oven (Lower)
14Bracket, Thermostat
14Screw (2)
15Switch, Oven Light
15Lockwasher
16Timer, Automatic (Includes Illus. 15)
17Motor, Timer
18Rail, Top (Seal, Backguard)
20Escutcheon, Thermostat
22WP311069 Whirlpool Oven Dial
22Screw,
24Escutcheon Thermostat (Lower)
25WP3150371 Whirlpool Control Knob
26Bezel Switch (1)
27Grease
27FOIL, ALUMINUM OVEN (18“ X 25 )
27WPW10208653 Whirlpool Insulation
27WPL 799832
27511873 Whirlpool Refrigerator Paint
27350930 Whirlpool White Spray Paint
27350942 Whirlpool Spray Paint
27Golden Harvest (Uncut)
27Golden Harvest
2772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27Almond (Uncut)
27WP72107 Whirlpool Touchup
27799344 Whirlpool Refrigerator Paint
2772017 Whirlpool Appliance Touch-Up Paint White
27Wire, 25` Roll (Black 14 Ga.)
27Wire, 25` Roll (Red 14 Ga.)
27Wire, 25“ Roll (White 14 GA.)
27WP3169181 Whirlpool Knob
27Spring (3)
27Touch-Up C
27Wire (14 Ga. 150 c Orange)
271
27Wire (14 Ga. 200 c Brown)
2718 Ga. 80~c Rating (Red)
27Wire (12 Ga. 150 c Black)
27Wire (14 Ga. 150 c Green)
27Wire (14 Ga. 150 c Brown)
27Wire (14 Ga. 150 c Blue)
27242831 Whirlpool Oven Wire
27285006 Whirlpool Spray
27350956 Whirlpool Spray Assembly
