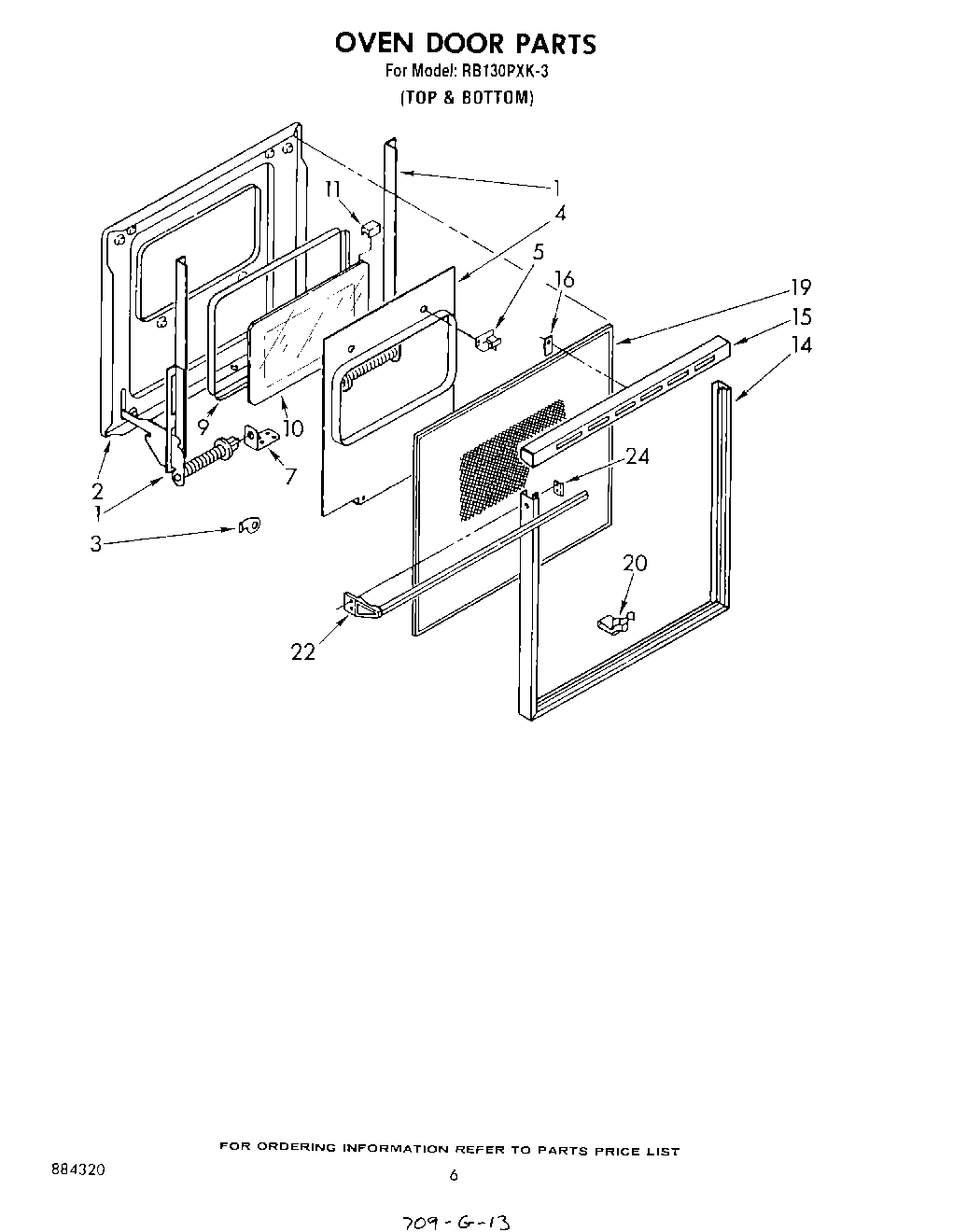

RB130PXK3 05 – OVEN DOOR

Products

Position	Product
1	SCREW
1	Bar, Torsion (L.H.)
1	Bar, Torsion (R.H.)
1	Bar, Torsion (Pushnut (2))
2	Liner, Door
2	Washer, Fiber
2	Nut, Snap-In (2)
2	panel, top (screw, 10a x 3/8 (3))
2	Screw (3)
3	Stop, Door (L.H.)
3	Stop, Door (Right Hand)
4	Baffle
5	Spacer (4)
5	Screw, 10A x 1/2 (2) (Black)
7	Support, Torsion Bar (2)
9	Seal, Window
10	Glass, Inner
11	Channel, Rubber (4)
14	Frame, Door
15	Top, Door Frame
15	WP90296 Whirlpool Clip
16	hold down, glass (2)
19	Glass, Outer
20	clip, glass (10)
22	WP912618 Whirlpool Dishwasher Screw
22	Handle, Door
24	screw (3)
