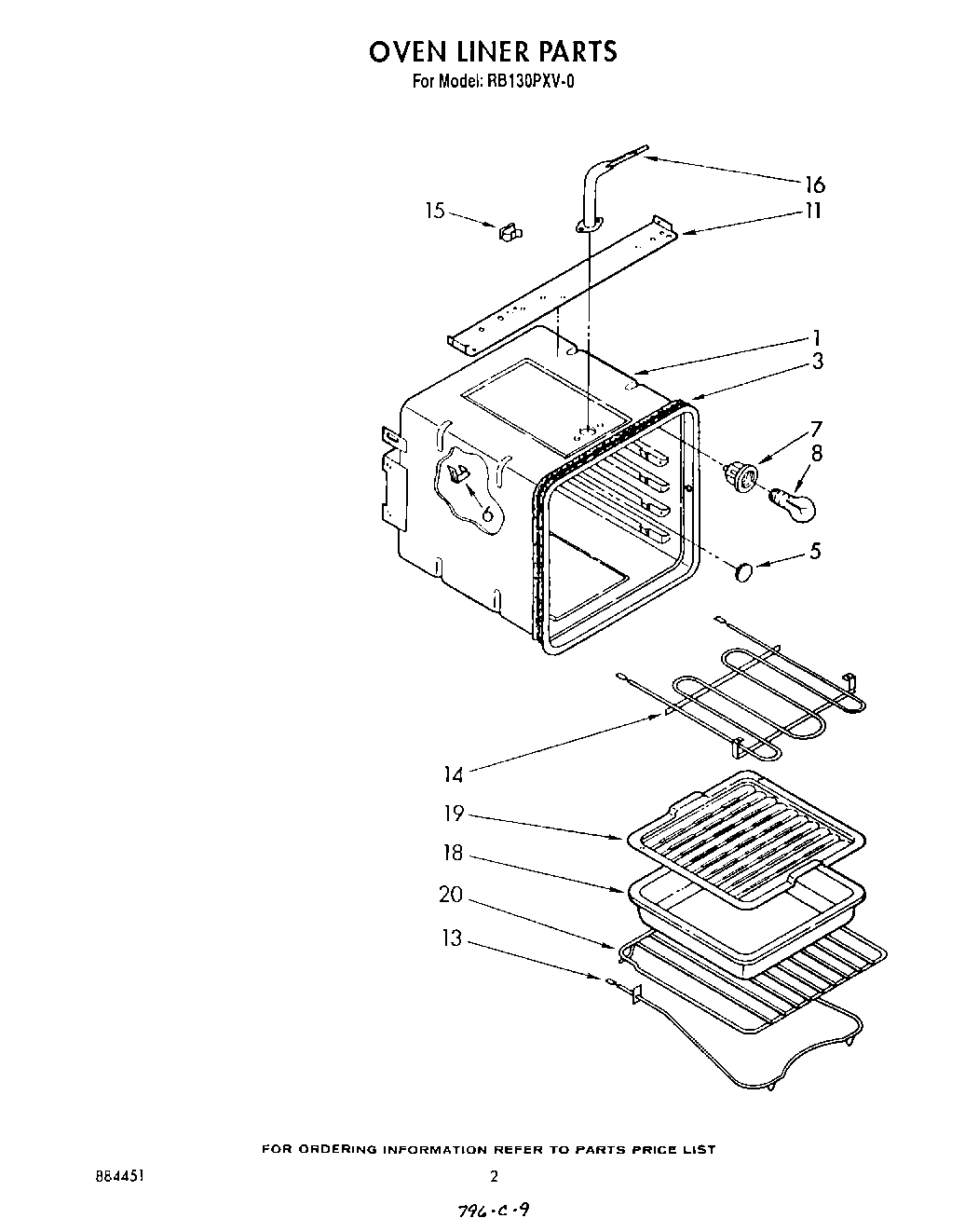

RB130PXV0 02 – OVEN LINER

Products

PositionProduct
Screw (10-12 x .875)
Screw, 10-32 x 5/8 (4)
1Screw (3)
1Main Back
3Seal, Oven
5Plug Button
698005642 Whirlpool Clip
7Socket, Oven Light
7Socket, Oven Light (Alt.)
7Socket, Oven Light (Alt.)
8RANGE ONLY 40W 120V APPL BULB
11Baffle, Top Insulation
13326791 Whirlpool Range Oven Bake Element
14WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
15Clip, Tube
16Vent, Oven
16Vent Tube (Lower Oven)
16WP308685 Whirlpool Microwave Screw
184396923 Whirlpool Broil Pan Set Gray Porcelain
20Rack, Oven (2)
