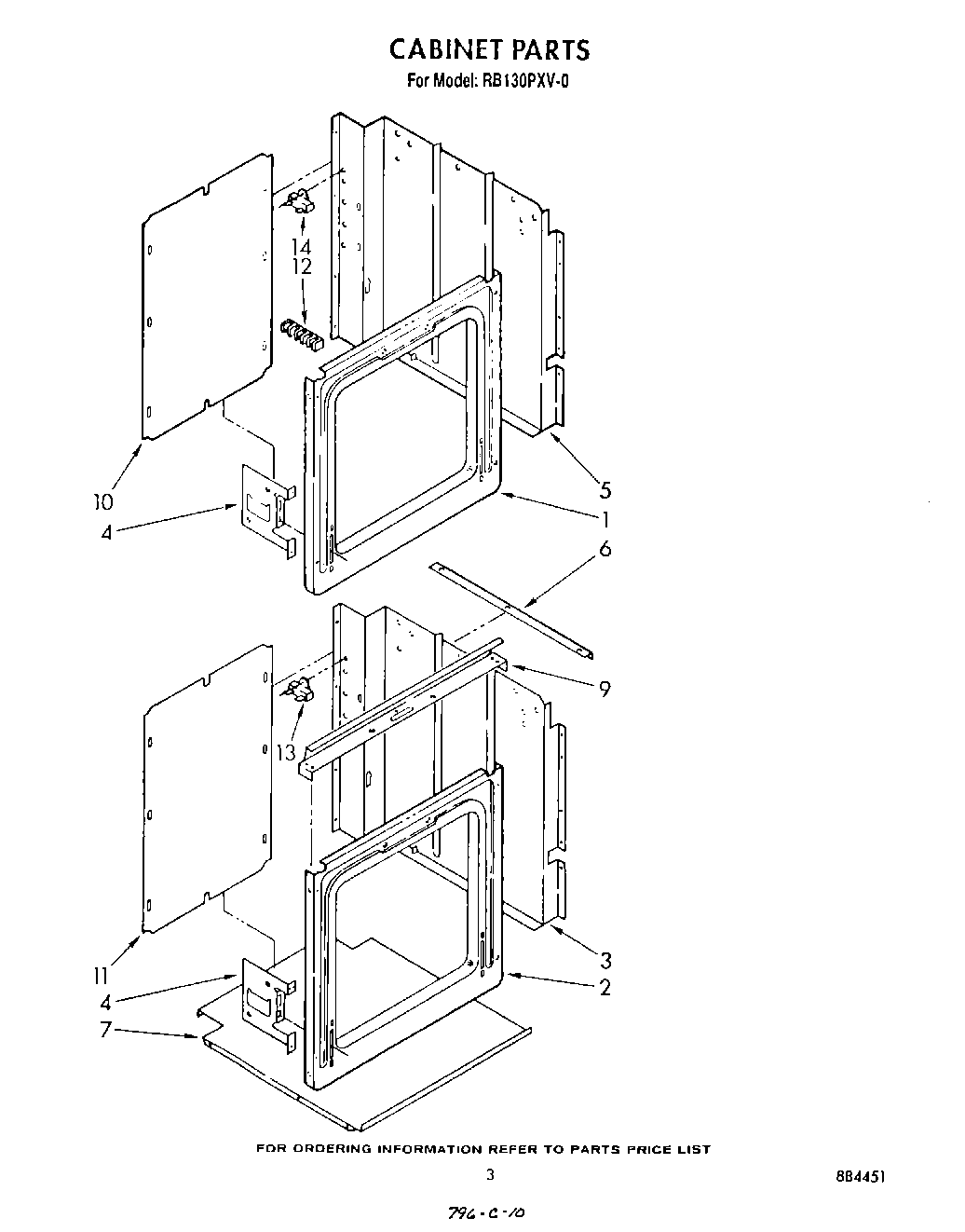

RB130PXV0 03 – CABINET

Products

Position	Product
1	Frame, Front (Upper Oven)
2	Black 2141B
3	Side Wrapper (2)
4	Plate, Hinge (2)
4	Screw, 10-32 x 1/2
5	Wrapper Side (R.H.)
5	Wrapper Side (L.H.)
5	Screw
6	Support Angle (2)
7	Cover (Top)
7	Cover (Bottom)
9	Vent Hood (24“)
9	Screw, 10A x 1/2 (2) (Black)
10	WP308685 Whirlpool Microwave Screw
10	Rear Cover (Double Oven)
11	Cover, Rear
12	W10841059 Whirlpool Screw
12	WP8203546 Whirlpool Terminal Block
12	WP112432 Whirlpool Nut Assembly
13	WPL 3147621
14	screw
14	Fuse, Thermal
