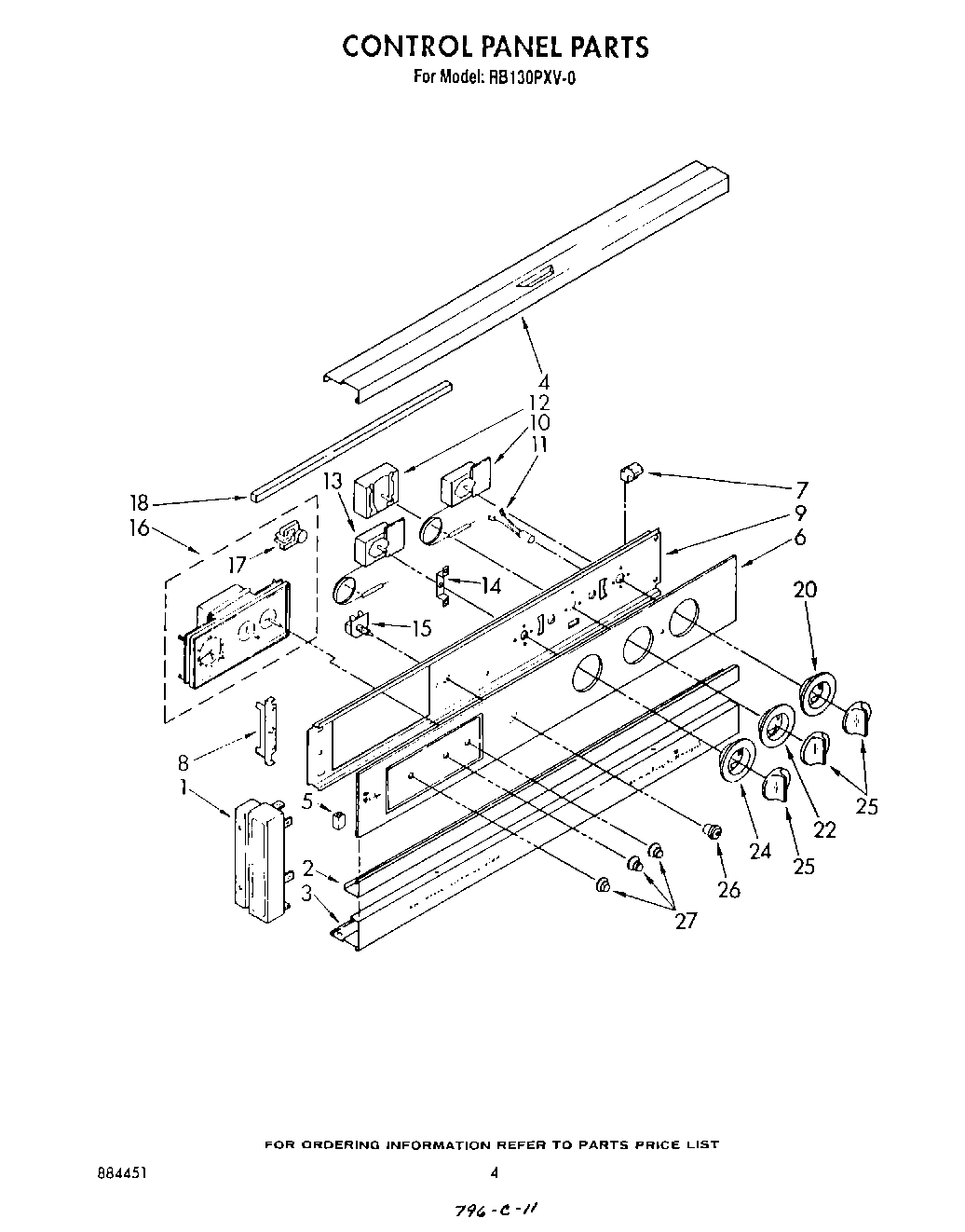

RB130PXV0 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT884451
Guide, Use & Care
Instructions, Installation
screw, 6-32 x 1/4 (2)
WPL LIT313358
1Washer
1End Cap (Left Side)
1End Cap (Right Side)
2Trim, Center
3WP965173 Whirlpool Dishwasher Screw
3Trim, Bottom
4Trim, Upper
5Rubber Channel (2) (Black Model Only)
6Glass, Control Panel
7Retainer, Glass (4)
8Bracket, Control Panel (2)
9Screw
9panel, top (screw, 10a x 3/8 (3))
9Control Bracket
10Thermostat (Alt.)
10Thermostat (Alt.)
10Thermostat
11Indicator Light (4)
12WP486579 Whirlpool Air Conditioner Screw
12Selector Switch (4 Position)
13Thermostat, Oven (Lower)
14Bracket, Thermostat
14Screw (2)
15Lockwasher
15Switch, Oven Light
16Timer, Clock (Includes No.6)
17Motor, Timer
18Rail, Top (Seal, Backguard)
20Escutcheon, Thermostat
22WP311069 Whirlpool Oven Dial
22Screw,
24Escutcheon Thermostat (Lower)
25WP3150371 Whirlpool Control Knob
26Bezel Switch (1)
27Grease
27FOIL, ALUMINUM OVEN (18“ X 25 )
27WPW10208653 Whirlpool Insulation
27WPL 799832
27511873 Whirlpool Refrigerator Paint
27350942 Whirlpool Spray Paint
27Golden Harvest (Uncut)
27Golden Harvest
2772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27Almond (Uncut)
27WP72107 Whirlpool Touchup
27799344 Whirlpool Refrigerator Paint
2772017 Whirlpool Appliance Touch-Up Paint White
27350956 Whirlpool Spray Assembly
27Wire, 25` Roll (Black 14 Ga.)
27Wire, 25` Roll (Red 14 Ga.)
271
27Wire (14 Ga. 200 c Brown)
27WP3169181 Whirlpool Knob
27Spring (3)
27Touch-Up C
2718 Ga. 80~c Rating (Red)
27Wire (12 Ga. 150 c Black)
27Wire (14 Ga. 150 c Orange)
27Wire (14 Ga. 150 c Green)
27Wire (14 Ga. 150 c Brown)
27Wire (14 Ga. 150 c Blue)
27242831 Whirlpool Oven Wire
27285006 Whirlpool Spray
27Wire, 25“ Roll (White 14 GA.)
27350930 Whirlpool White Spray Paint
