RB130PXV1 04 – CONTROL PANEL , LIT/OPTIONAL

RB130PXV1 04 – CONTROL PANEL , LIT/OPTIONAL

Written by

in

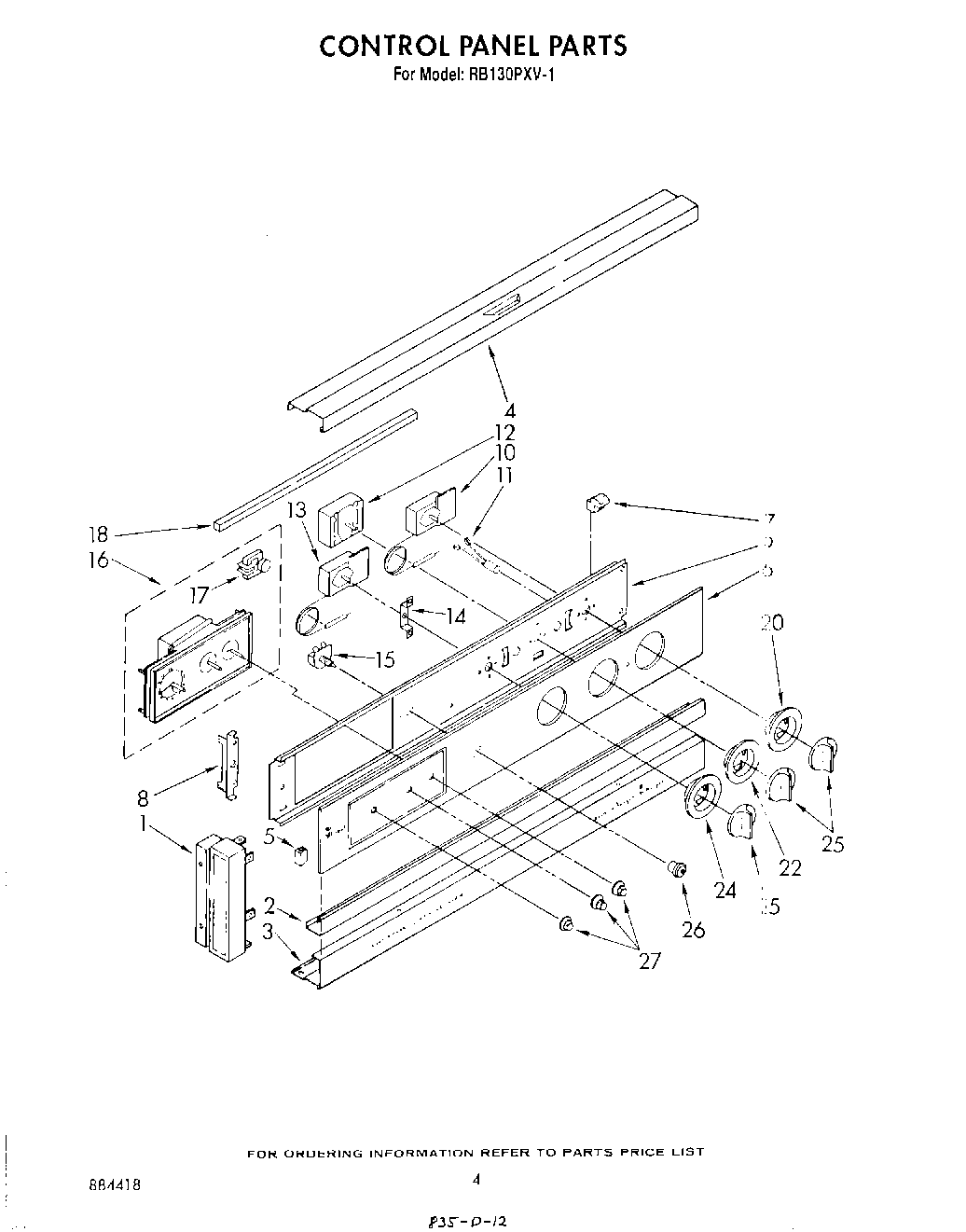

RB130PXV1 04 – CONTROL PANEL , LIT/OPTIONAL

Products

Position	Product
	511873 Whirlpool Refrigerator Paint
	WPL ARI119637A
1	Washer
1	End Cap (Right Side)
1	End Cap (Left Side)
2	Trim, Center
3	WP965173 Whirlpool Dishwasher Screw
3	Trim, Bottom
4	Trim, Upper
5	Rubber Channel (2) (Black Model Only)
6	Glass, Control Panel
7	Retainer, Glass (4)
8	Bracket, Control Panel (2)
9	Screw
9	panel, top (screw, 10a x 3/8 (3))
9	Control Bracket
10	screw, 6-32 x 1/4 (2)
10	Thermostat
11	Indicator Light (4)
12	Selector Switch (4 Position)
12	WP486579 Whirlpool Air Conditioner Screw
13	Thermostat, Oven (Lower)
14	Bracket, Thermostat
14	Screw (2)
15	Switch, Oven Light
15	Lockwasher
16	Timer, Clock (Includes No.6)
17	Motor, Timer
18	Rail, Top (Seal, Backguard)
20	Escutcheon, Thermostat
22	WP311069 Whirlpool Oven Dial
22	Screw,
24	Escutcheon Thermostat (Lower)
25	WP3150371 Whirlpool Control Knob
26	Bezel Switch (1)
27	Golden Harvest (Uncut)
27	Spring (3)
27	Enamel, Coffee (1 Qt. Uncut)
27	Enamel, New Avocado (1 Qt. Uncut)
27	242831 Whirlpool Oven Wire
27	Leveler (Thinner) (2oz.)
27	Grease
27	WP3169181 Whirlpool Knob
27	8212471 Whirlpool Oven Paint
27	1
27	WPL 799832
27	350942 Whirlpool Spray Paint
27	WPL 72112
27	Platinum (Uncut)
27	Enamal, Toast (1 Qt. Uncut)
27	Paint, Spray (13 Oz.) (Platinum)
27	Toast
27	Golden Harvest
27	72113 Whirlpool Touch-Up Paint
27	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27	Almond (Uncut)
27	WP72107 Whirlpool Touchup
27	799344 Whirlpool Refrigerator Paint
27	72017 Whirlpool Appliance Touch-Up Paint White
27	350956 Whirlpool Spray Assembly
27	WPW10208653 Whirlpool Insulation
27	FOIL, ALUMINUM OVEN (18“ X 25 )
27	Wire, 25` Roll (Black 14 Ga.)
27	Wire (14 Ga. 200 c Brown)
27	18 Ga. 80~c Rating (Red)
27	Wire (12 Ga. 150 c Black)
27	Wire (14 Ga. 150 c Yellow)
27	Wire (14 Ga. 150 c Orange)
27	Wire (14 Ga. 150 c Green)
27	Wire (14 Ga. 150 c Brown)
27	Wire (14 Ga. 150 c Blue)
27	Paint, Spray 13 Oz. (Avocado)
27	paint, spray 13 oz. (coffee)
27	Paint, Touch-Up 1/2 Oz. (Coffee)
27	72109 Whirlpool Dacor Avocado Touch-Up Paint
27	285006 Whirlpool Spray
27	Wire, 25“ Roll (White 14 GA.)
27	Wire, 25` Roll (Red 14 Ga.)
27	350930 Whirlpool White Spray Paint
