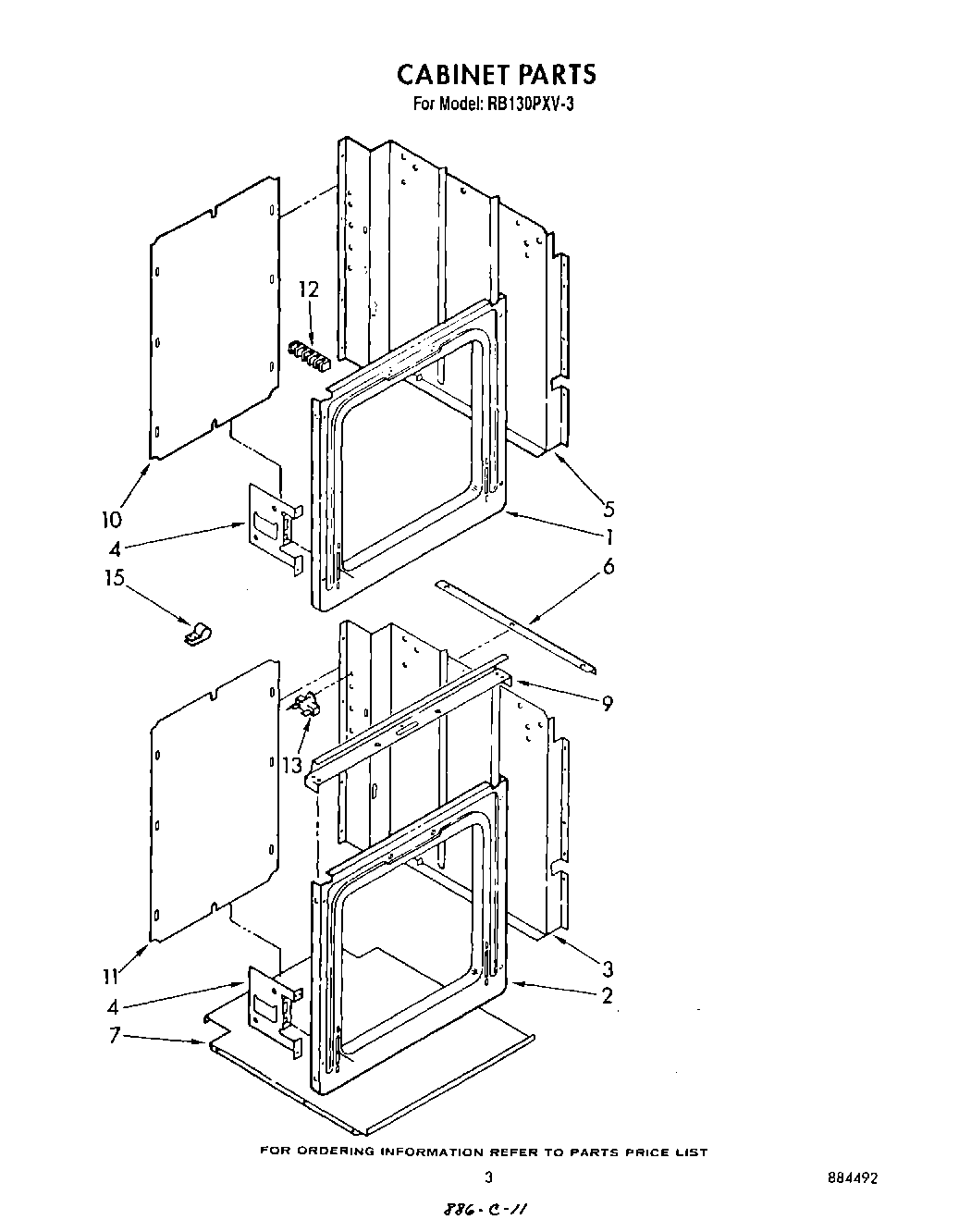

RB130PXV3 03 – CABINET

Products

Position	Product
1	Frame Front (Upper Oven)
2	Frame, Front (Lower Oven)
3	Side Wrapper (2)
4	Plate, Hinge (2)
4	Screw, 10-32 x 1/2
5	Wrapper Side (R.H.)
5	Wrapper Side (L.H.)
5	Screw
6	Support Angle (2)
7	Cover (Top)
9	Screw, 10A x 1/2 (2) (Black)
9	Vent Hood (24“)
10	WP308685 Whirlpool Microwave Screw
10	Rear Cover (Double Oven)
11	Cover, Rear
12	WP112432 Whirlpool Nut Assembly
12	W10841059 Whirlpool Screw
12	WP8203546 Whirlpool Terminal Block
13	screw
13	Thermostat, Oven
15	Harness, Wiring (Supply)
15	488946 Whirlpool Air Conditioner Clamp
15	Harness, Wire (Oven)
