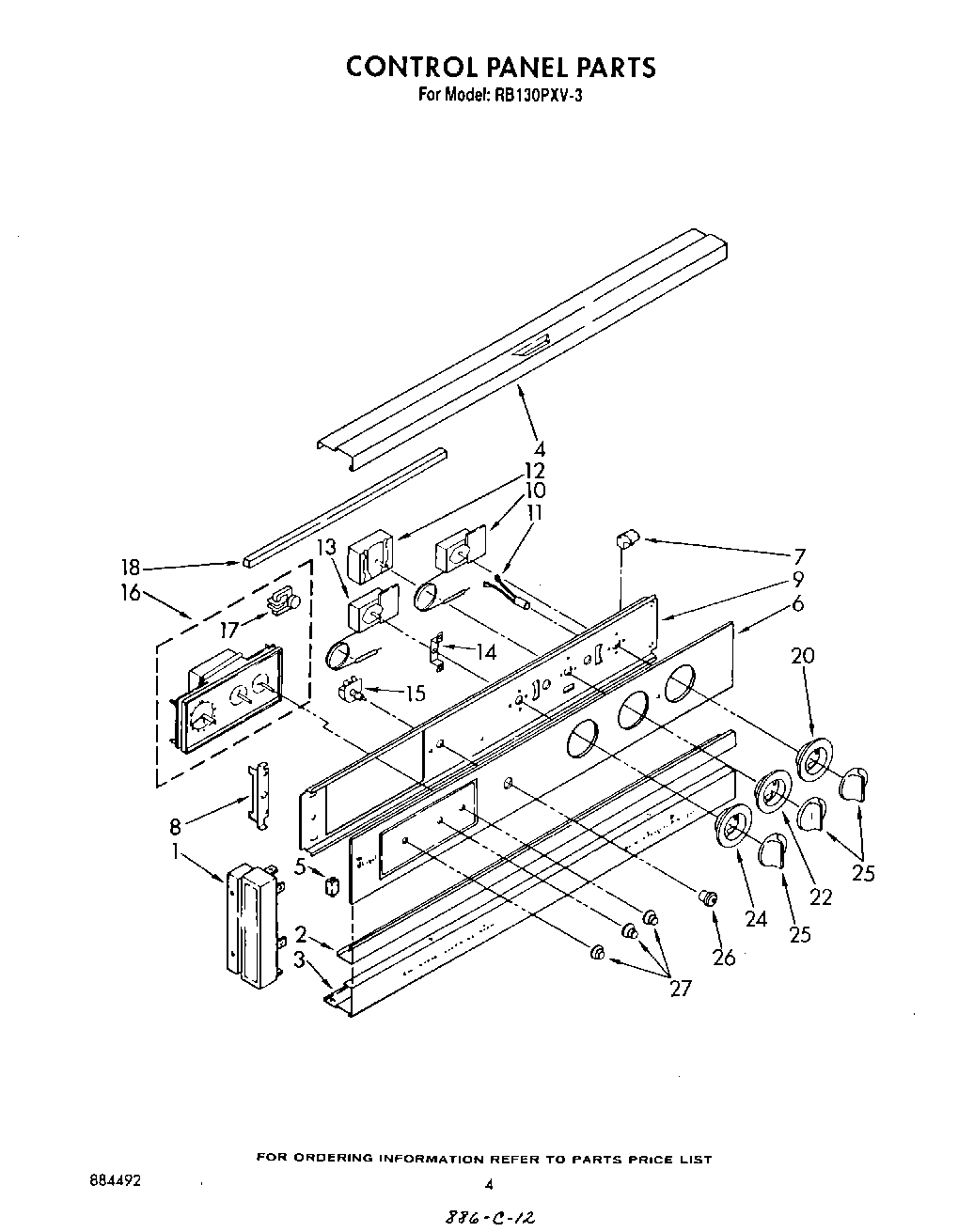

RB130PXV3 04 – CONTROL PANEL , LIT/OPTIONAL

RB130PXV3 04 – CONTROL PANEL , LIT/OPTIONAL

Written by

in

RB130PXV3 04 – CONTROL PANEL , LIT/OPTIONAL

Products

PositionProduct
1Washer
1End Cap (Right Side)
1End Cap (Left Side)
2Trim, Center
3Trim, Bottom
4Trim, Upper
5Rubber Channel (2) (Black Model Only)
6Glass, Control Panel
7Retainer, Glass (4)
8Bracket, Control Panel (2)
9panel, top (screw, 10a x 3/8 (3))
9Screw
9Control Bracket
10Thermostat
10screw, 6-32 x 1/4 (2)
11Indicator Light (4)
12Selector Switch (4 Position)
12WP486579 Whirlpool Air Conditioner Screw
13Thermostat, Oven (Lower)
14Bracket, Thermostat
14WP313808 Whirlpool Screw
14Screw (2)
15Switch, Oven Light
15Lockwasher
16Timer, Clock (Includes No.6)
17Motor, Timer
18Rail, Top (Seal, Backguard)
18WP965173 Whirlpool Dishwasher Screw
20Escutcheon, Thermostat
22WP311069 Whirlpool Oven Dial
22Screw,
24Escutcheon Thermostat (Lower)
25WP3150371 Whirlpool Control Knob
26Bezel Switch (1)
27WPL 786020
27Spring (3)
27WPL 350806
27261900 Whirlpool Microwave Spray
27WP3169181 Whirlpool Knob
27Golden Harvest
27Wire (14 Ga. 150 c Brown)
27350942 Whirlpool Spray Paint
27WPL 72112
27Platinum (Uncut)
27Enamal, Toast (1 Qt. Uncut)
27Paint, Spray (13 Oz.) (Platinum)
27Toast
27Golden Harvest (Uncut)
2772113 Whirlpool Touch-Up Paint
2772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27Almond (Uncut)
27Leveler (Thinner)
27WP72107 Whirlpool Touchup
27799344 Whirlpool Refrigerator Paint
2772017 Whirlpool Appliance Touch-Up Paint White
27350930 Whirlpool White Spray Paint
27Wire, 25` Roll (Blue 16 Ga.)
271
27Wire (14 Ga. 200 c Brown)
2718 Ga. 80~c Rating (Red)
27Wire (12 Ga. 150 c Black)
27Wire (14 Ga. 150 c Yellow)
27Wire (14 Ga. 150 c Orange)
27Wire (14 Ga. 150 c Green)
27Wire (14 Ga. 150 c Blue)
27242831 Whirlpool Oven Wire
2772032 Whirlpool Touch Up Paint Black
27285006 Whirlpool Spray
27Wire, 25“ Roll (White 14 GA.)
27Wire, 25` Roll (Red 14 Ga.)
27Wire, 25` Roll (Black 14 Ga.)
27350956 Whirlpool Spray Assembly
