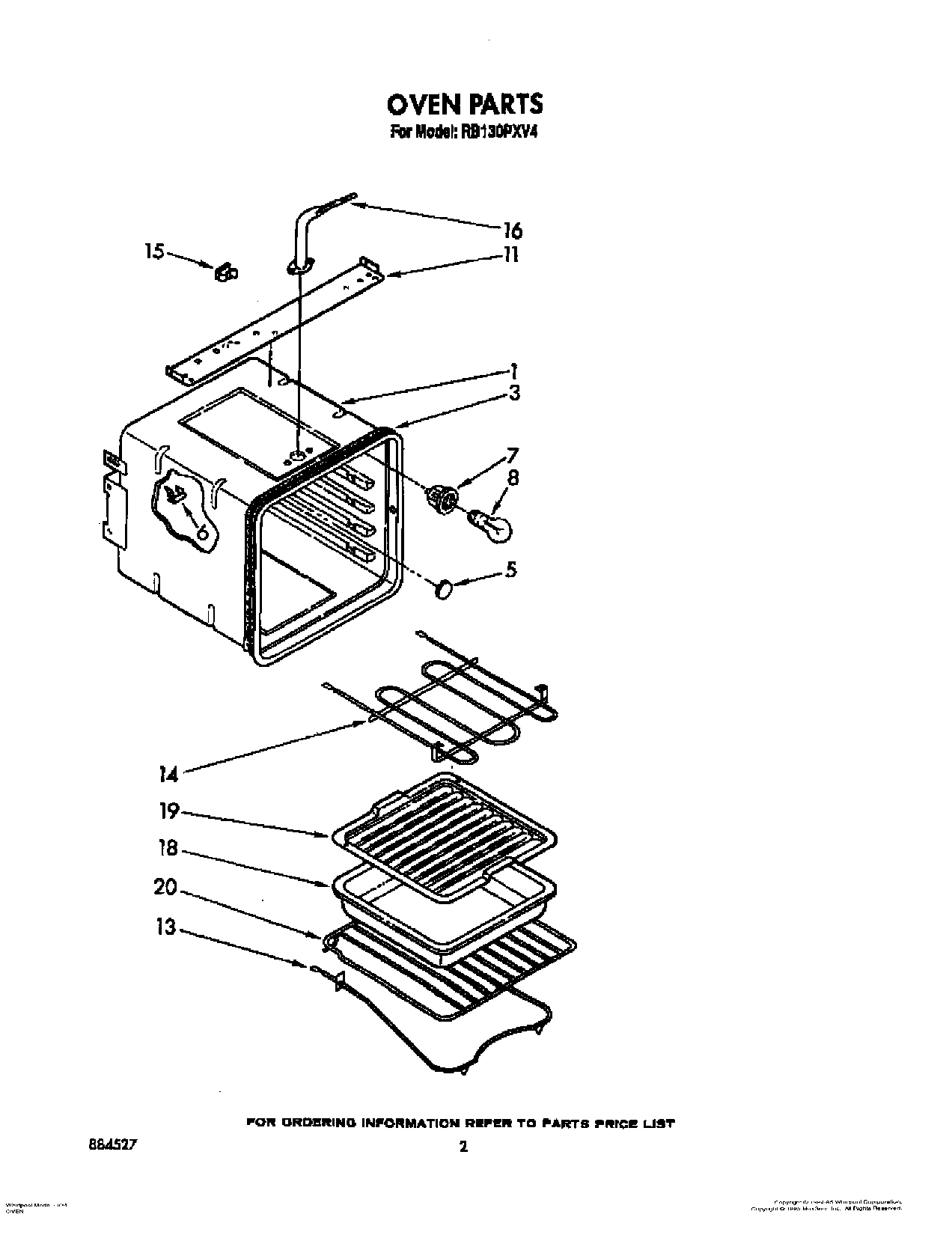

RB130PXV4 02 – OVEN, LIT/OPTIONALadmin2025-04-26T11:30:49+00:00RB130PXV4 02 – OVEN, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Repair Parts List |
| Guide, Use & Care |
| Instructions, Installation |
| WPL LIT313358 |
| 1 | Main Back |
| 1 | Screw (3) |
| 3 | Heat Seal |
| 5 | Plug Button |
| 6 | 98005642 Whirlpool Clip |
| 7 | Socket, Oven Light |
| 7 | Screw (10-12 x .875) |
| 8 | RANGE ONLY 40W 120V APPL BULB |
| 11 | Baffle, Top Insulation |
| 13 | 326791 Whirlpool Range Oven Bake Element |
| 14 | Screw, 10-32 x 5/8 (4) |
| 14 | WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V |
| 15 | Clip, Tube |
| 16 | Vent, Oven |
| 16 | Vent Tube (Lower Oven) |
| 16 | WP308685 Whirlpool Microwave Screw |
| 18 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 20 | Rack, Oven (2) |
