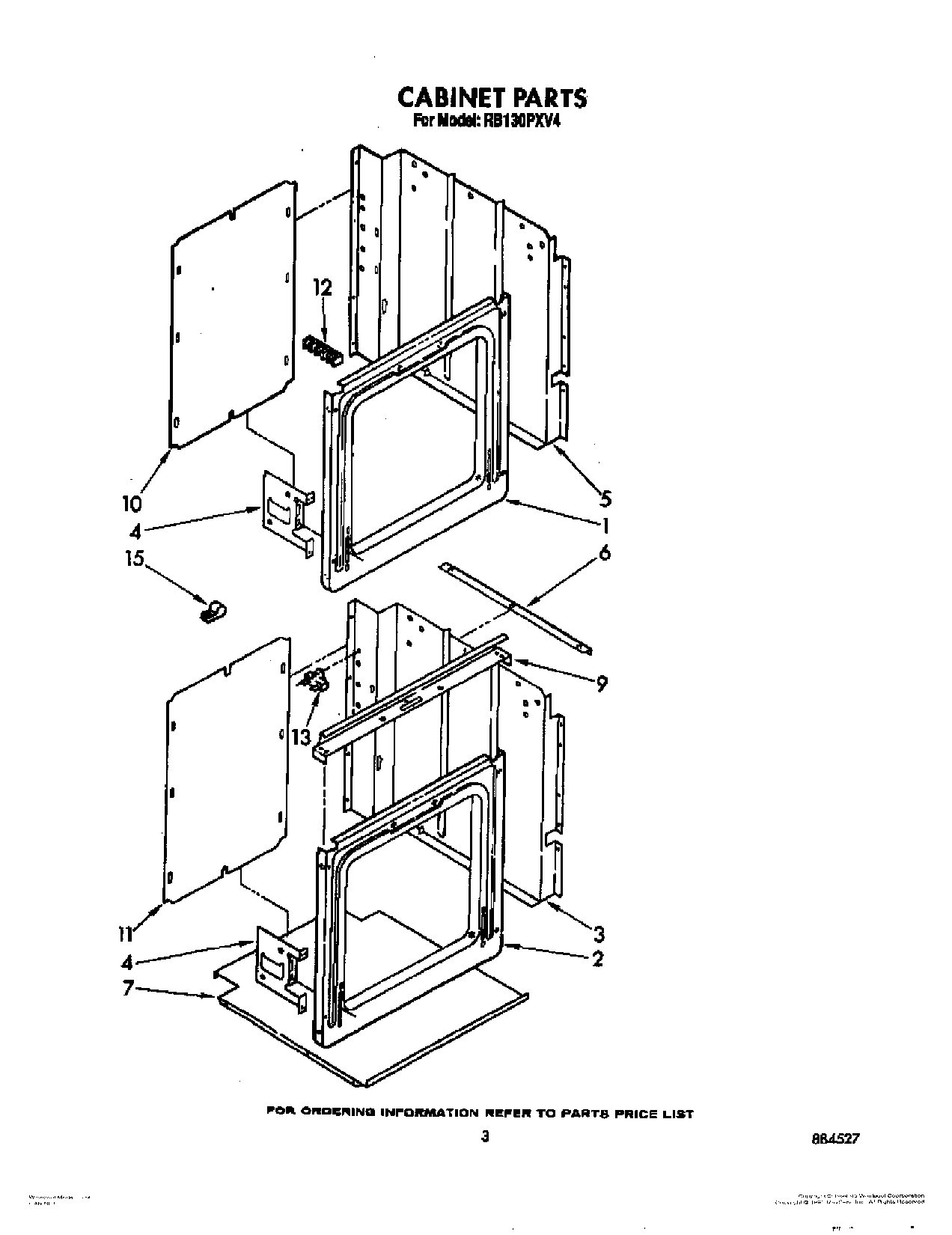

RB130PXV4 03 – CABINET

Products

Position	Product
1	Frame Front (Upper Oven)
2	Frame, Front (Lower Oven)
3	Side Wrapper (2)
4	Plate, Hinge (2)
4	Screw, 10-32 x 1/2
5	Wrapper Side (L.H.)
5	Screw
5	Wrapper Side (R.H.)
6	Support Angle (2)
7	Cover (Top)
7	Cover (Bottom)
9	Screw, 10A x 1/2 (2) (Black)
9	Vent Hood (24“)
10	Rear Cover (Double Oven)
10	WP308685 Whirlpool Microwave Screw
11	Cover, Rear
12	WP8203546 Whirlpool Terminal Block
12	W10841059 Whirlpool Screw
12	WP112432 Whirlpool Nut Assembly
13	Thermostat, Oven
13	screw
15	Harness, Wiring (Supply)
15	488946 Whirlpool Air Conditioner Clamp
15	Harness, Wiring (Oven Main)
