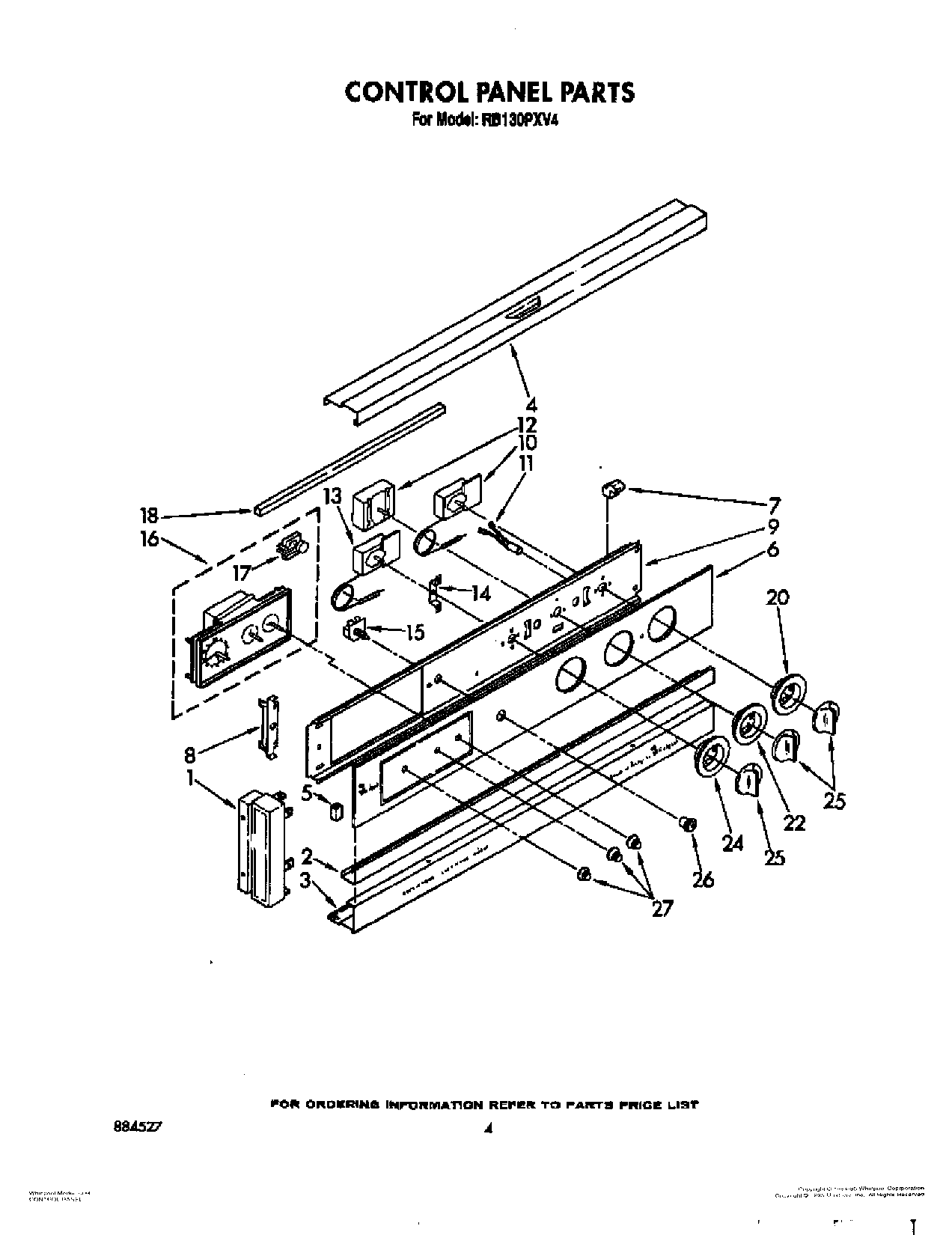

RB130PXV4 04 – CONTROL PANEL, OPTIONAL

Products

PositionProduct
1End Cap (Right Side)
1Washer
1End Cap (Left Side)
2Trim, Center
3Trim, Bottom
4Trim, Upper
5Rubber Channel (2) (Black Model Only)
6Glass, Control Panel
7Retainer, Glass (4)
8Bracket, Control Panel (2)
9Screw
9Control Bracket
9panel, top (screw, 10a x 3/8 (3))
10screw, 6-32 x 1/4 (2)
10Thermostat
11Indicator Light (4)
12Selector Switch (4 Position)
12WP486579 Whirlpool Air Conditioner Screw
13Thermostat, Oven (Lower)
14Screw (2)
14WP313808 Whirlpool Screw
14Bracket, Thermostat
15Switch, Oven Light
15Lockwasher
16Timer, Clock (Includes No.6)
17Motor, Timer
18Rail, Top (Seal, Backguard)
18WP965173 Whirlpool Dishwasher Screw
20Escutcheon, Thermostat
22WP311069 Whirlpool Oven Dial
22Screw,
24Escutcheon Thermostat (Lower)
25WP3150371 Whirlpool Control Knob
26Bezel Switch (1)
27Golden Harvest
27WPL 350806
27WPL 591014
27WPL 832985
27Wire (14 Ga. 150 c Blue)
27Spring (3)
27WP3169181 Whirlpool Knob
271
27WPL 72112
27Platinum (Uncut)
27Enamal, Toast (1 Qt. Uncut)
27Paint, Spray (13 Oz.) (Platinum)
27Toast
27Golden Harvest (Uncut)
2772113 Whirlpool Touch-Up Paint
2772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27Almond (Uncut)
27Leveler (Thinner)
27WP72107 Whirlpool Touchup
27799344 Whirlpool Refrigerator Paint
2772017 Whirlpool Appliance Touch-Up Paint White
27350956 Whirlpool Spray Assembly
27350942 Whirlpool Spray Paint
27WPL 799832
27Wire, 25` Roll (Black 14 Ga.)
27Wire (14 Ga. 200 c Brown)
2718 Ga. 80~c Rating (Red)
27Wire (12 Ga. 150 c Black)
27Wire (14 Ga. 150 c Yellow)
27Wire (14 Ga. 150 c Orange)
27Wire (14 Ga. 150 c Green)
27Wire (14 Ga. 150 c Brown)
27WP261869 Whirlpool Microwave Paint
27242831 Whirlpool Oven Wire
27WP482338 Whirlpool Refrigerator Adhesive
2772032 Whirlpool Touch Up Paint Black
27285006 Whirlpool Spray
27Wire, 25“ Roll (White 14 GA.)
27Wire, 25` Roll (Red 14 Ga.)
27350930 Whirlpool White Spray Paint
