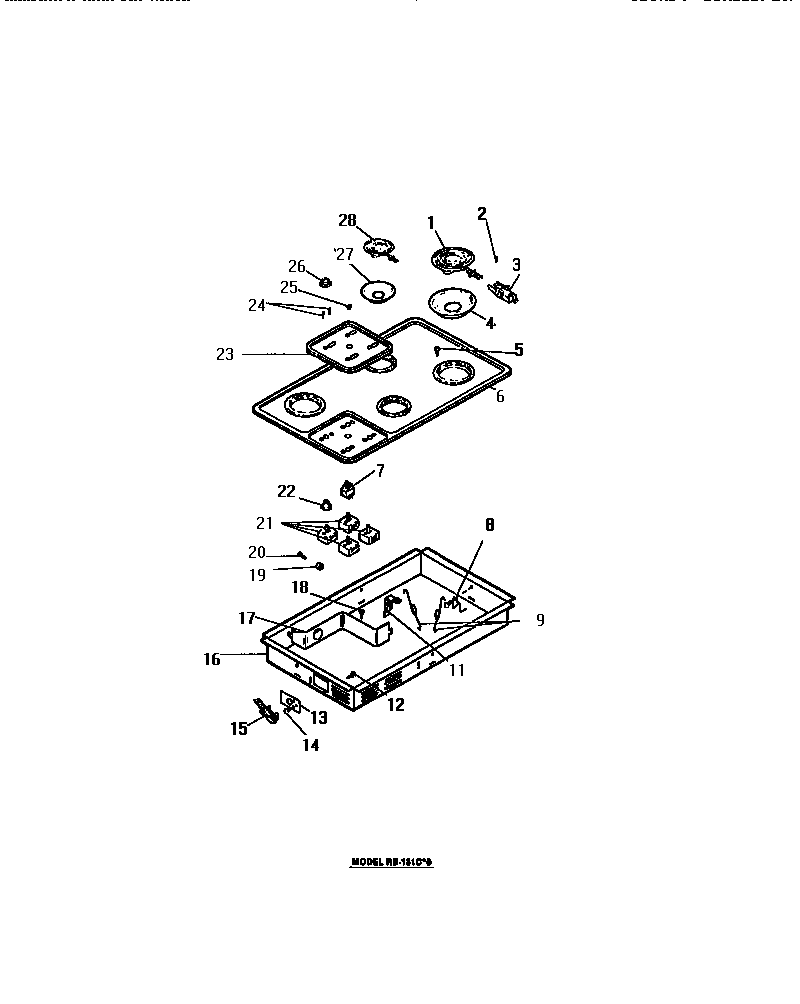

RB131CH0 02 – COOKTOP

Products

Position	Product
1	SURFACE UNIT, 8“ (2)
3A	WCI 8002879
3	WCI 8002830
4	PAN, 8“ DRIP (2)
5	SCREW (2)
6	WCI 8007831
7	WCI 8008876
8A	WCI 8010975
8B	SCREW (4)
8C	WCI 8013421
9A	WCI 8007826
9	SUPPORTS, WIRING, SHORT
11	WCI 8007818
12	SCREW, GROUND WIRE
13	WCI 8007820
14	SCREWS
16	WCI 8007816
17	WCI 8007819
18	WCI 8003159
19	SPACERS (4)
20	SCREWS (2)
21	SWITCH, 8“ SURFACE UNIT (2)
22	WCI 8007822
23	WCI 8013422
24	WCI 8003135
25	LENS
26	KNOB, LEFT OVEN THERMOSTAT
27	WCI 012559
28	SURFACE UNIT, 6“ (2)
