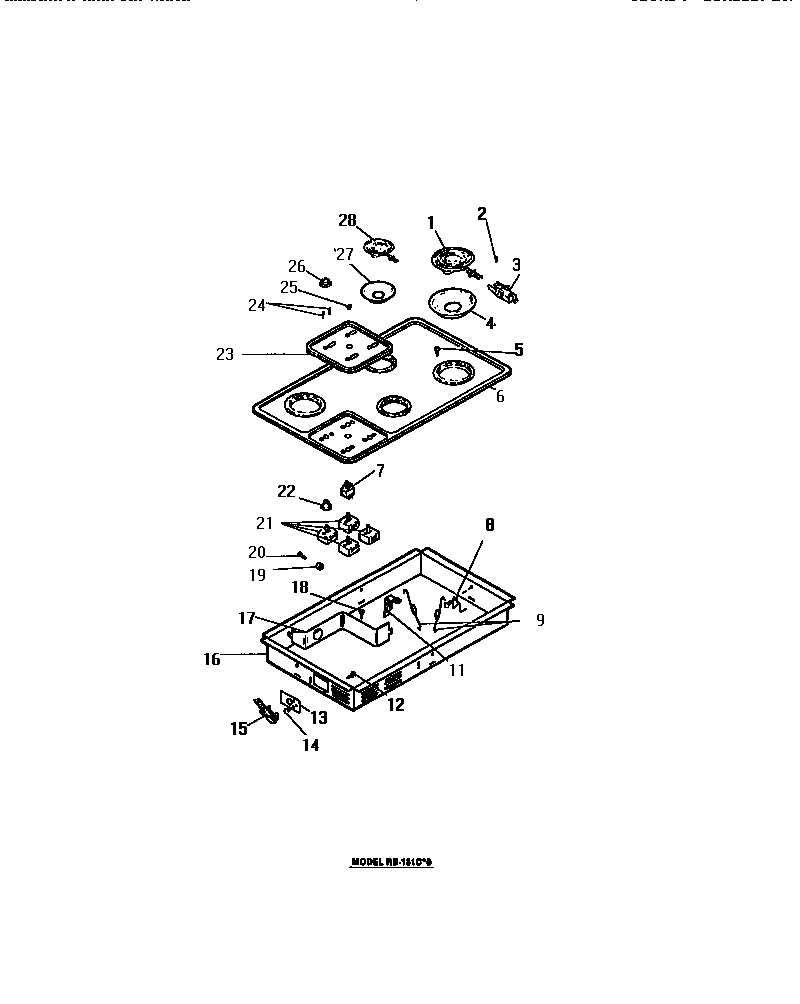

| 1 | SURFACE UNIT, 8`` (2) |
| 3A | WCI 8002879 |
| 3 | WCI 8002830 |
| 4 | PAN, 8`` DRIP (2) |
| 5 | SCREW (2) |
| 6 | WCI 8007828 |
| 7 | WCI 8008876 |
| 8B | SCREW (4) |
| 8A | WCI 8010975 |
| 8C | WCI 8013421 |
| 9 | SUPPORTS, WIRING, SHORT |
| 9A | WCI 8007826 |
| 11 | WCI 8007818 |
| 12 | SCREW, GROUND WIRE |
| 13 | WCI 8007820 |
| 14 | SCREWS |
| 16 | WCI 8007816 |
| 17 | WCI 8007819 |
| 18 | WCI 8003159 |
| 19 | SPACERS (4) |
| 20 | SCREWS (2) |
| 21 | SWITCH, 8`` SURFACE UNIT (2) |
| 22 | WCI 8007822 |
| 23 | WCI 8013422 |
| 24 | WCI 8003135 |
| 25 | LENS |
| 26 | KNOB, LEFT OVEN THERMOSTAT |
| 27 | WCI 012559 |
| 28 | SURFACE UNIT, 6`` (2) |
