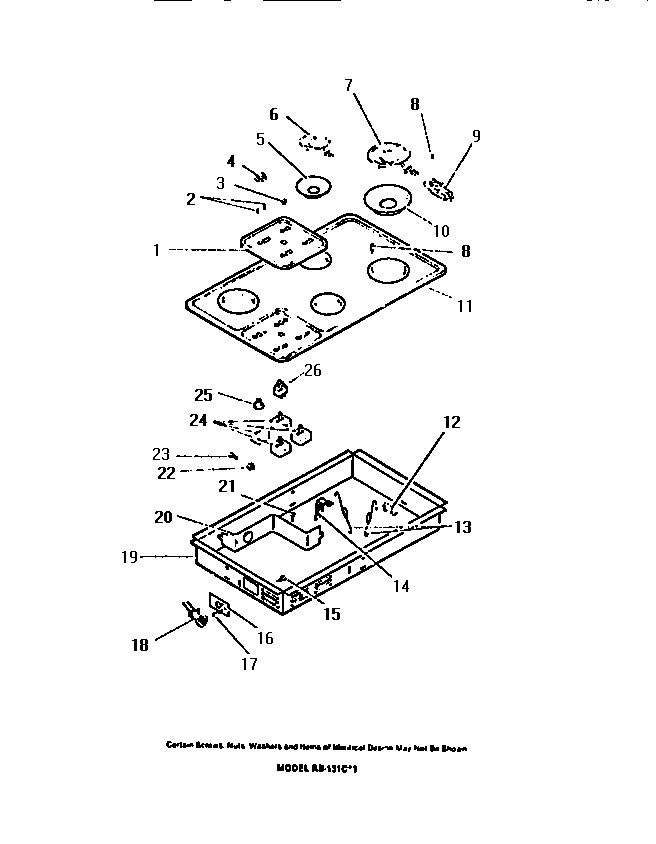

RB131CW1 02 – CONTROL PANEL, TOP, SWITCHES, SURFA

Products

PositionProduct
1WCI 8013422
3WCI 8016270
4KNOB, SURFACE UNITS (4)
5PAN, 6“ DRIP (2)
6SURFACE UNIT, 6“ (2)
7SURFACE UNIT, 8“ (2)
8SCREWS (4)
9RECEPTACLE (4)
10PAN, 8“ DRIP (2)
11ATOP, COOK, WHITE
12BWCI 8016269
12AWCI 8016271
12CWCI 8012213
13ASUPPORTS, WIRING, SHORT
13BWCI 8007826
14WCI 8007818
15SCREW, GROUND WIRE
16WCI 8007820
17SCREWS
19WCI 8007816
20WCI 8007819
21WCI 8003135
22SPACERS (4)
23SCREWS (2)
24SWITCH, 8“ SURFACE UNIT (2)
25WCI 8007822
26WCI 8008876
