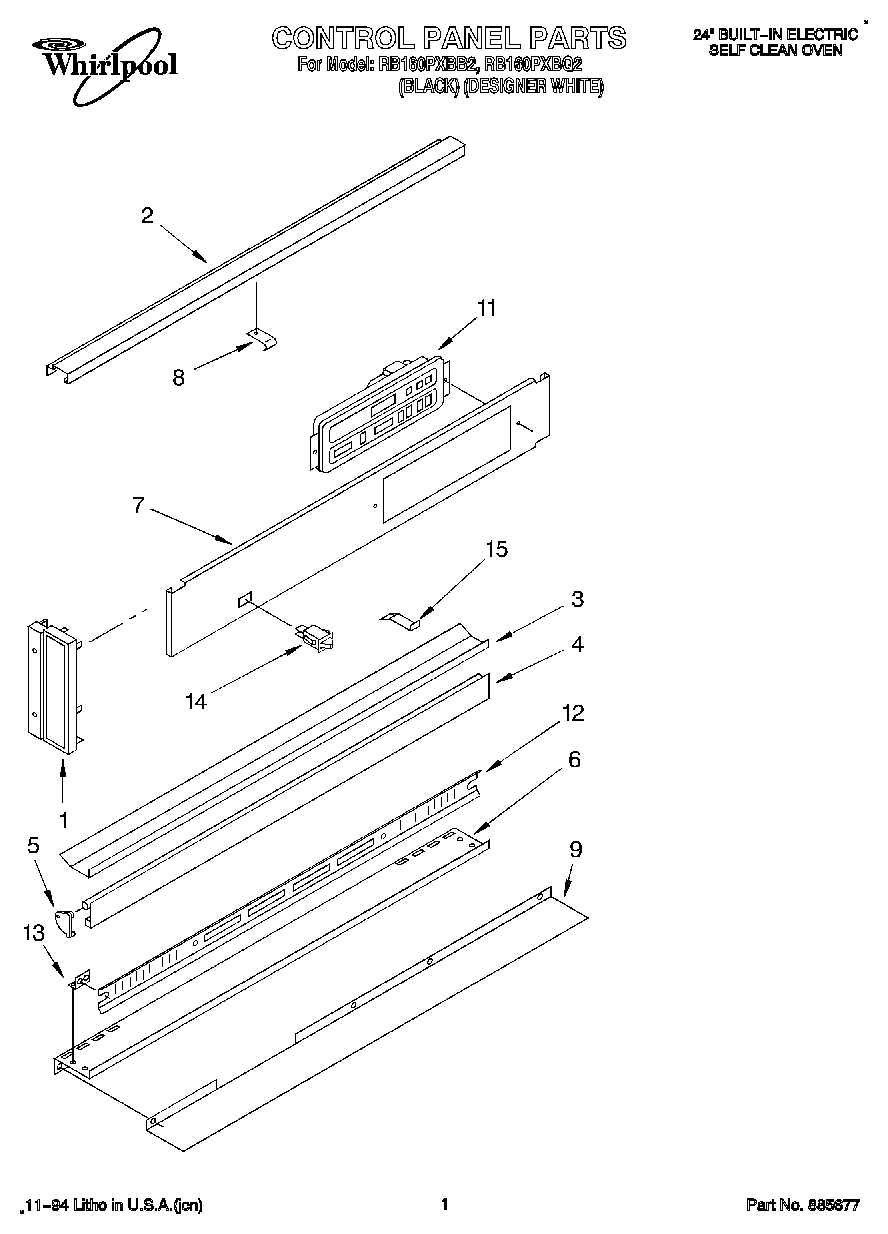

RB160PXBB2 01 – CONTROL PANEL

Written by

Products

Position	Product
1	End Cap (White Model, LH)
1	End Cap (Black Model, LH)
1	End Cap (Black Model, RH)
1	End Cap (White Model, RH)
2	Trim, Top (Black Model)
2	Trim, Top (White Model)
2	Screw (2)
3	Trim, Center (Black Model)
3	Trim, Center (White Model)
4	Vent Door (Black Model)
4	Vent Door (White Model)
5	End Trim, Vent (Left Side)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	End Trim, Vent (Right Side)
6	Trim, Bottom (White Model)
6	Trim, Bottom (Black Model)
6	Screw, 10-32 x 1/2
7	Control Panel (White Model)
7	Control Panel (Black Model)
8	Stiffener, Bracket
9	Trim, Vent Upper (White Model)
9	Trim, Vent Upper (Black Model)
11	Control, Electronic (White)
11	Control, Electronic (Black)
12	Insert, Vent
13	Screw
13	Bracket, Mounting
14	Switch, Rocker
14	Switch, Rocker (White)
15	Stiffner, Bracket
15	panel, top (screw, 10a x 3/8 (3))
15	WP965173 Whirlpool Dishwasher Screw
