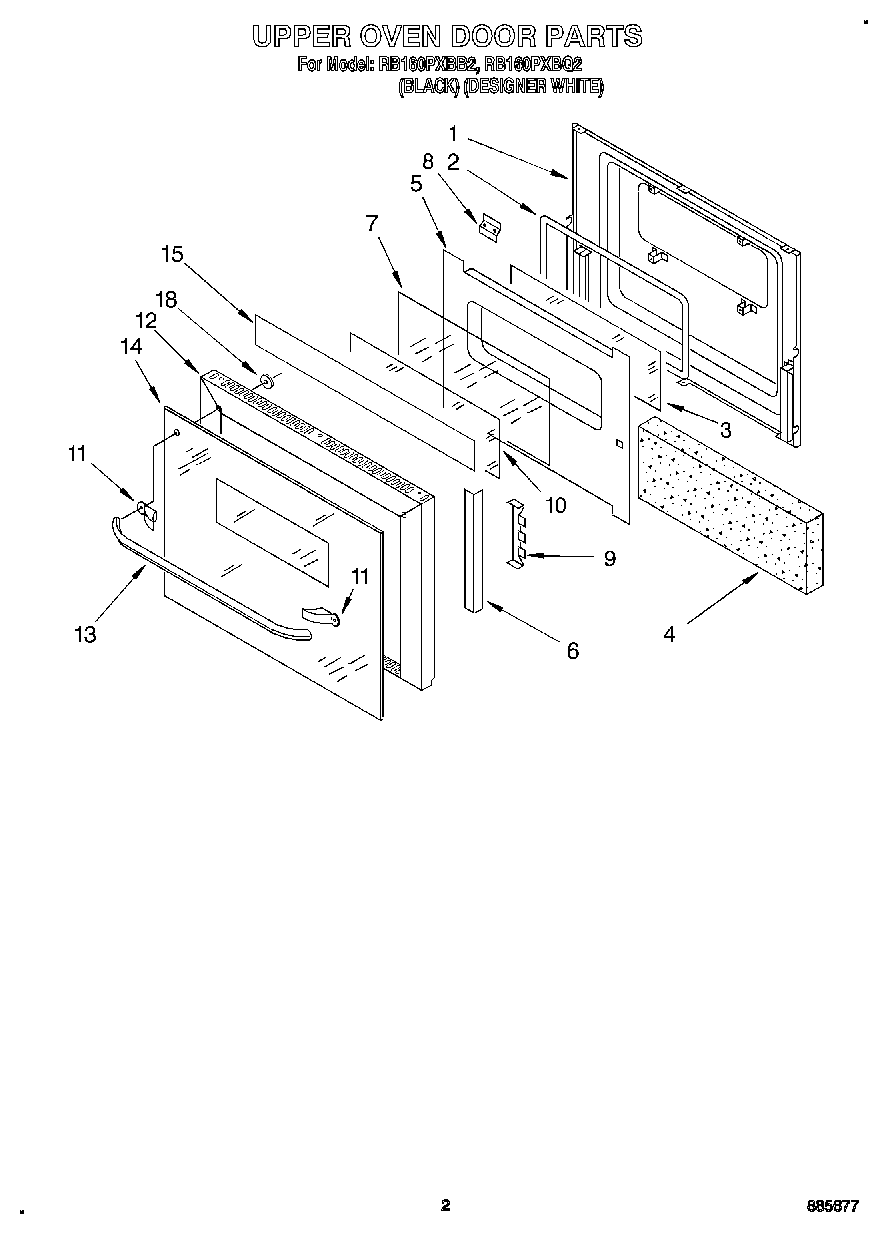

RB160PXBB2 02 – UPPER OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Retainer, Insulation
5	Vent, Lower Trim (Screw (2))
6	Foil-Adhesive
6	Screw, Black (2)
6	Screw
7	Glass, Reflective
8	Latch, Strike
9	Retainer, Glass
10	Glass, Clear
10	Screw
11	Spacer (Black Model)
11	Spacer (White Model)
12	Frame, Door (White Model)
12	Frame, Door (Black Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Glass, Door (Black Model)
14	Glass, Door (White Model)
15	Foil-Adhesive
18	Screw (2)
18	Bushing, Door Handle
