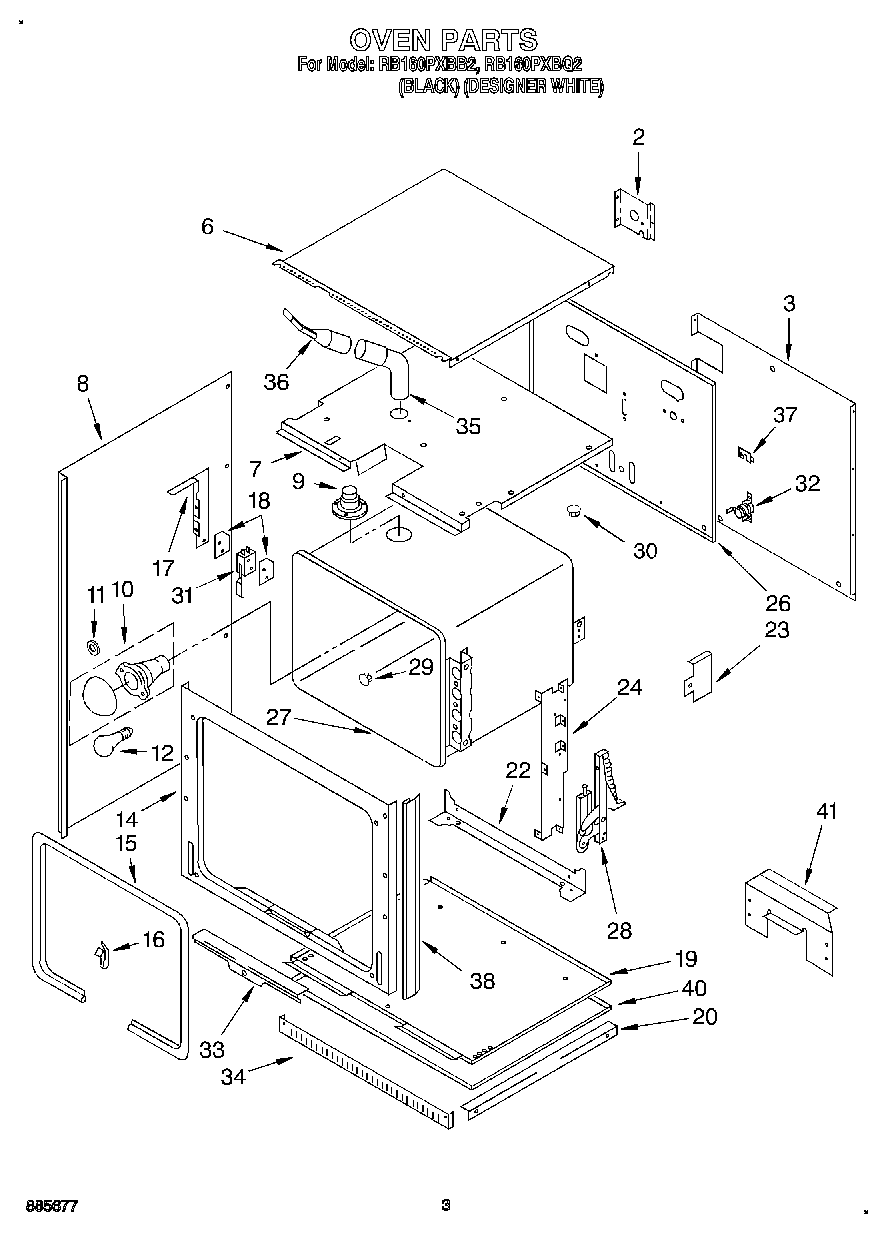

RB160PXBB2 03 – OVEN
Written by
in
RB160PXBB2 03 – OVEN
Products
Position
Product
2
Bracket, Conduit
3
Cabinet, Back
6
Cabinet, Top
7
Module, Top
8
Side, Cabinet (R.H. & L.H.)
9
Tube, Vent
10
W11594027 Whirlpool Range Oven Light Socket
11
WP3184533 Whirlpool Range Light Lens Gasket
12
RANGE ONLY 40W 120V APPL BULB
14
Frame, Front
15
Seal, Door
16
Clip, Oven Seal
17
Bracket, Switch
18
Insulator, Switch
19
Bottom, Modual
20
Rail, Support (2)
22
Support, Oven
23
Shield, Radiation
24
Bracket, Hinge
26
Back, Module
27
Liner, Oven
28
Hinge, Door
28
Screw (6)
29
Button, Plug
30
Button, Plug
31
Switch, Door
31
Nut (2)
31
Screw (2)
32
Thermostat
33
Retainer, Seal
34
Vent, Lower Trim (Screw (4))
34
Trim, Lower Vent (Black Model)
34
Vent, Lower Trim (Screw (2))
34
Trim, Lower Vent (White Model)
35
Vent, Tube (Upper, Female)
36
Screw
36
Tube, Vent (Male)
36
Screw,
37
Cover, Cap Tube
37
Screw
38
Trim, Door Side (2) (Black Model)
38
Side Trim, Door (2) (White Model)
40
Bottom, Oven
41
WPL 3177870
41
WPL 3182584
41
WP3177991 Whirlpool Screw
41
WPL 3185550
←
