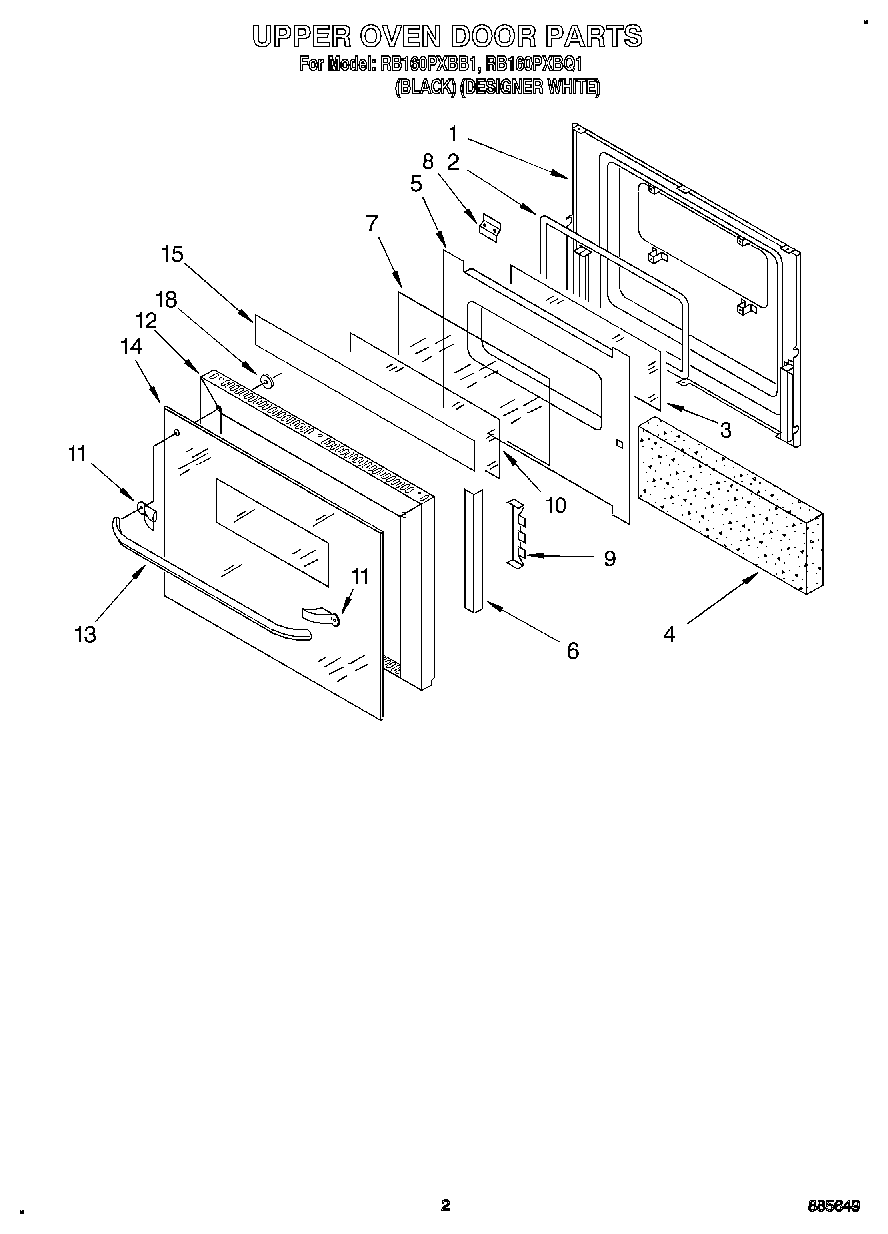

RB160PXBQ1 02 – UPPER OVEN DOOR

Products

PositionProduct
1Liner, Door
2Seal, Window
3Glass, Clear
4Insulation, Door
5Retainer, Insulation
5Vent, Lower Trim (Screw (2))
6Foil-Adhesive
6Screw, Black (2)
6Screw
7Glass, Reflective
8Latch, Strike
9Retainer, Glass
10Glass, Clear
10Screw
11Spacer (Black Model)
11Spacer (White Model)
12Frame, Door (White Model)
12Frame, Door (Black Model)
13Handle, Door (Black Model)
13Handle, Door (White Model)
13Handle, Door (Screw)
14Glass, Door (Black Model)
14Glass, Door (White Model)
15Foil-Adhesive
18Screw (2)
18Bushing, Door Handle
