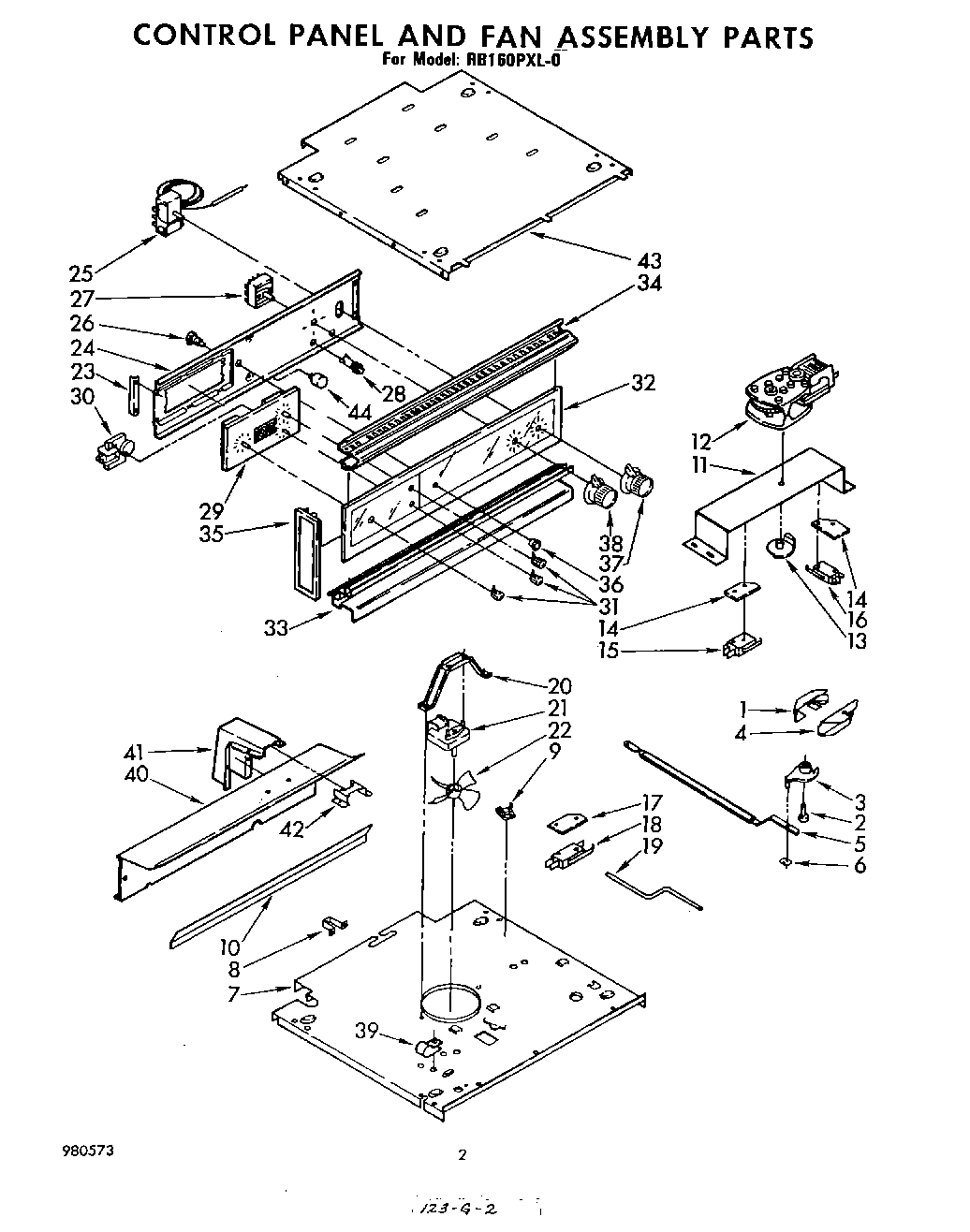

RB160PXL0 02 – CONTROL PANEL AND FAN ASSEMBLY

Products

Position	Product
1	Housing, Latch
1	Washer (2)
2	Axle, Latch
3	Latch, Door
4	Pushnut, 1/4
4	Cover, Latch Housing
5	Tie Bar
7	Casing, Fan
8	Washer (3)
8	Spacer, Fan Casing
9	WP486754 Whirlpool Compactor Screw
9	Thermal Protector
10	Shield, Control Panel
11	Support, Latch Motor
12	Motor (Alternate)
12	Motor (Alternate)
13	Cam, Door Latch (Pushnut, 3/16“)
13	Cam, Door Latch (Pin, Spring)
13	cam, door latch (alternate)
13	Cam, Door Latch (Alternate)
14	Insulator, Limit Switch (3)
15	Switch, Lower Limit (2) (Screw, 4-40 x 5/8 (2))
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Lower Limit (2) (Alternate)
16	Switch, Upper Limit (Alternate)
16	Switch, Upper Limit (Alternate)
16	Switch, Upper Limit (Alternate)
16	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
17	Insulator, Switch
18	Screw (2)
18	Switch, Limit
19	Rod Switch Interlock
20	Bracket, Fan Motor
21	Nut
21	Motor, Fan (Alternate)
21	Motor, Fan (A
22	WPL 866392
22	WPL 868990
23	WPL 866395
24	WPL 868402
25	WPL 868808
26	WPL 866138
26	WPL 98754
27	WPL 868991
27	WPL 486525
28	WPL 868172
28	WPL 868433
29	Hex Nut, 10-32 (6)
29	WPL 868992
30	WPL 866403
31	WPL 241383
32	WPL 866454
32	WPL 868993
33	WPL 868531
34	WPL 595119
34	WPL 868994
35	WPL 868996
35	WPL 868995
35	Screw 10-24 x 1/2
36	WPL 866053
37	WPL 868997
38	WPL 868998
39	WPL 865797
39	WPL 273225
40	WPL 866411
41	WPL 866412
42	WPL 868222
43	Screw, 10-24 x 1/2 (3)
43	WPL 868102
44	WPL 834956
