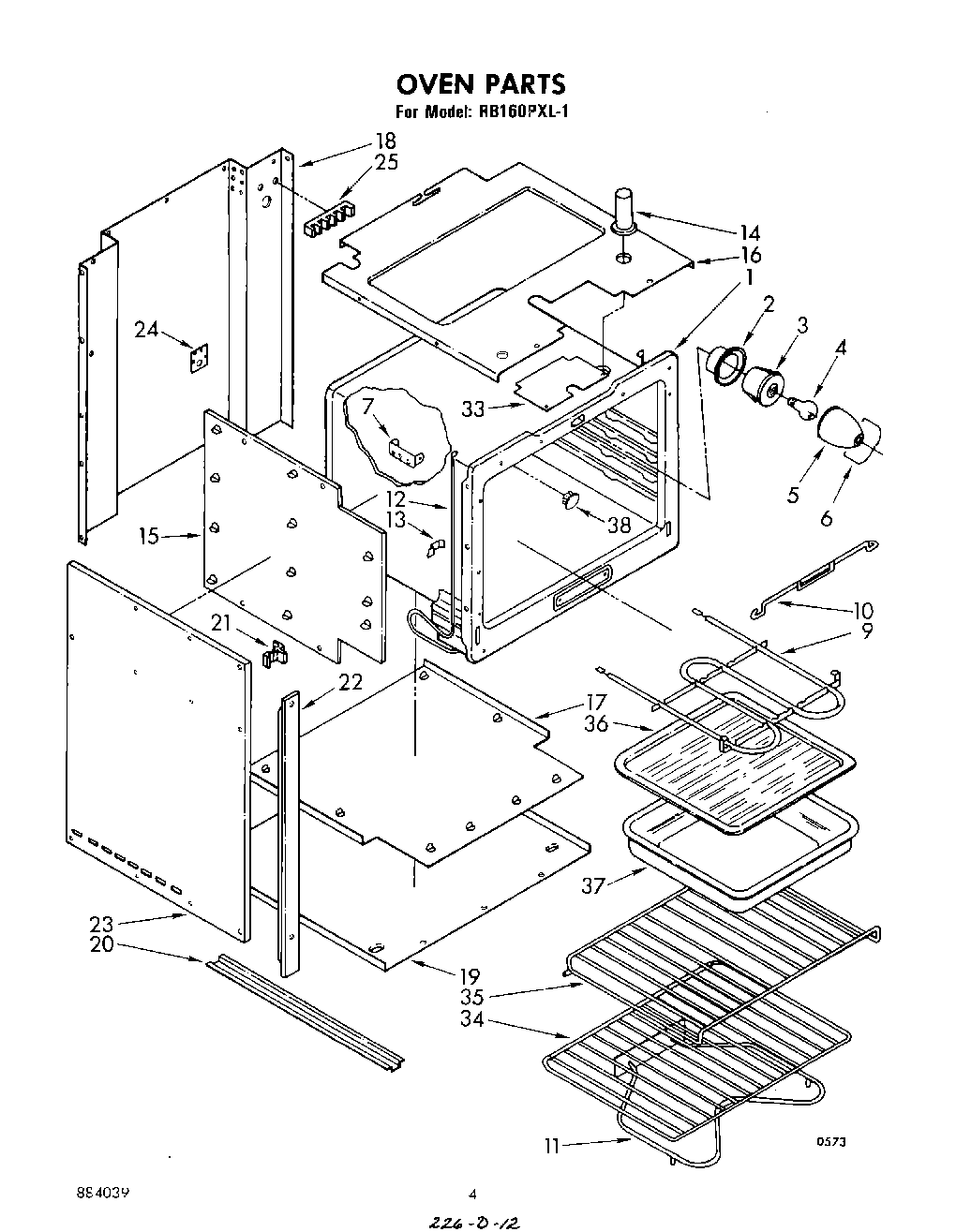

RB160PXL1 03 – SECTION

Products

Position	Product
1	Oven (27“ Pyro)
2	Cup, Light
3	W10856866 Whirlpool Light Socket
4	RANGE ONLY 40W 120V APPL BULB
5	Lens, Light
6	Retainer, Lens
7	Bracket, Thermo Bulb
9	Unit, Broil
10	Hanger, Broil Unit
11	Unit Bake (Screw, 10-24 x 1/2 (2))
11	WP866375 Whirlpool Range Bake Element
12	Heater, Mullion
13	Clip, Heater L.H.
13	Clip, Heater R.H.
14	vent tube (alternate)
14	vent tube (alternate)
14	Screw, 10-24 x 3/8 (2)
15	Retainer, Insulation Side (2)
16	Retainer, Insulation Top
17	Retainer, Insulation Bottom
18	Casing, Back
19	Casing, Bottom
20	Support, Bottom Casing (2)
21	Spacer Trim (4)
22	Trim, Oven Front (2)
23	Casing, Side (2)
24	Plate, Conduit
25	WPL 834649
25	Hex Nut, 10-32 (6)
25	Screw,10-24 x 1/2
25	WP8203546 Whirlpool Terminal Block
33	Screw, 10-24 x 1/2 (3)
33	Cover, Access
34	Rack, Oven Regular
35	Rack, Oven (Offset)
36	4396923 Whirlpool Broil Pan Set Gray Porcelain
37	Pan, Broiler
38	Touch-Up Oven (1 Oz.)
38	Wire, 25“ Roll (White 14 GA.)
38	Wire, 25` Roll (Red 14 Ga.)
38	Wire, 25` Roll (Black 14 Ga.)
38	FOIL, ALUMINUM OVEN (18“ X 25 )
38	WPW10208653 Whirlpool Insulation
38	242831 Whirlpool Oven Wire
38	Wire (14 Ga. 150 c Blue)
38	Grease
38	1
38	Plug, Button
38	WPL 866338
38	WPL 877797
38	Wire (14 Ga. 200 c Brown)
38	WPL 877806
38	18 Ga. 80~c Rating (Red)
38	WPL 884039
38	Wire (12 Ga. 150 c Black)
38	Wire (14 Ga. 150 c Yellow)
38	Wire (14 Ga. 150 c Orange)
38	Wire (14 Ga. 150 c Green)
38	Wire (14 Ga. 150 c Brown)
38	WPL 308500
