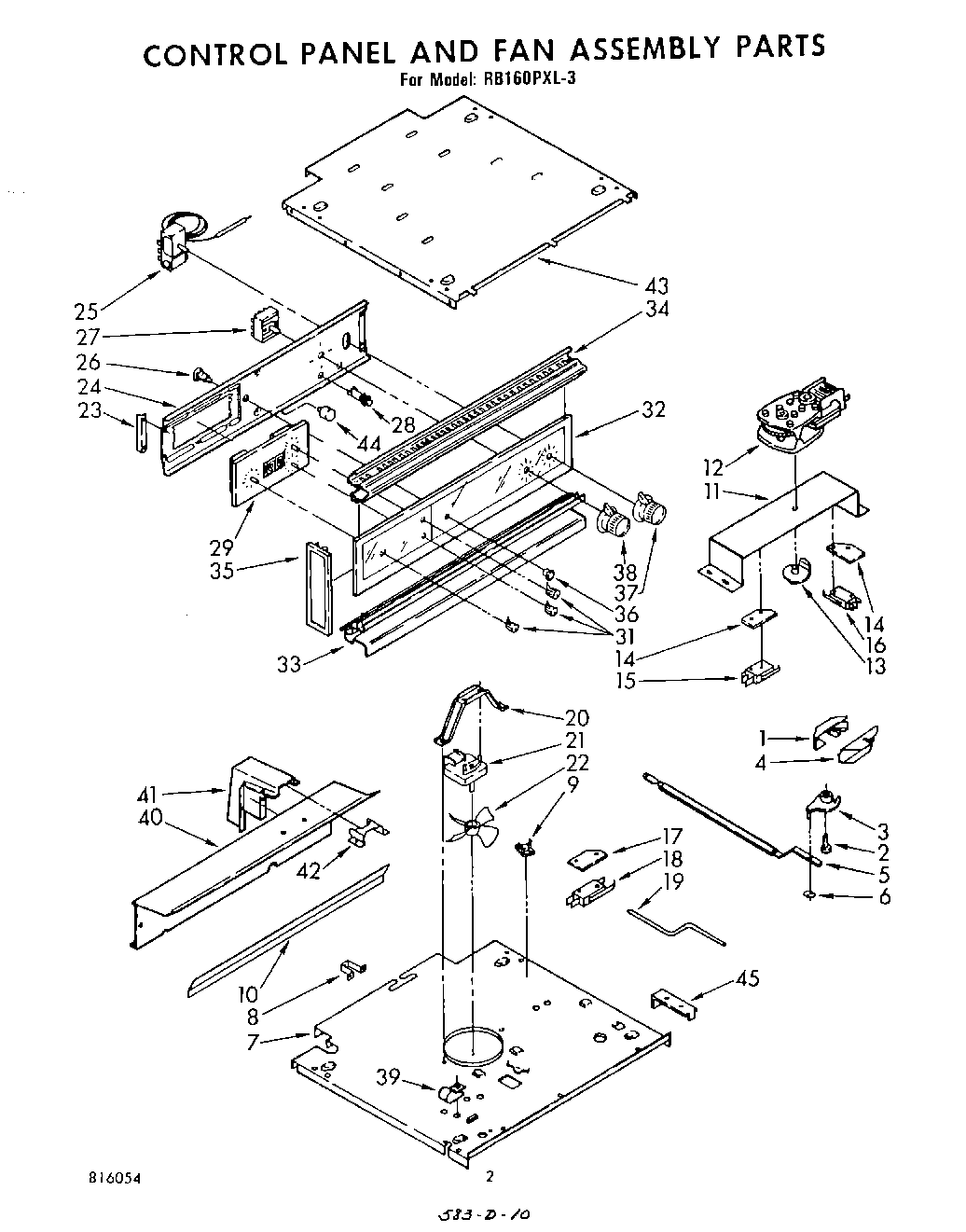

RB160PXL3 02 – SECTION

Products

Position	Product
1	Washer (2)
1	Housing, Latch
2	Pin, Hinge (2)
3	Latch, Door
4	Cover, Latch Housing
4	Washer
4	Pushnut, 1/4
5	Tie Bar
7	Casing, Fan
8	Washer (3)
8	Spacer, Fan Casing
9	Thermal Protector
9	WP486754 Whirlpool Compactor Screw
10	Shield, Control Panel
11	Support, Latch Motor
12	Motor (Alternate)
12	Motor (Alternate)
12	motor, door latch (alternate)
12	Motor, Door Latch (Alternate)
13	Cam, Door Latch (Pin, Spring)
13	Cam, Door Latch (Alternate)
13	cam, door latch (alternate)
13	Cam, Door Latch (Pushnut, 3/16“)
14	Insulator, Limit Switch (3)
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Lower Limit (Alternate)
16	Switch, Upper Limit (Alternate)
16	Switch, Upper Limit (Alternate)
16	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
17	Insulator, Switch
18	Switch, Limit
18	Switch, Door (Alternate)
18	Screw (2)
19	Rod Switch Interlock
20	Bracket, Fan Motor
21	Nut
21	Motor, Fan (A
22	WPL 866392
22	WPL 868990
23	WPL 866395
24	WPL 877886
25	WPL 816061
26	WPL 98754
26	WPL 866138
27	Screw, 8-32 x 3/16 (2)
27	WPL 816059
28	WPL 868433
28	WPL 877881
29	WPL 816060
29	Hex Nut, 10-32 (6)
31	WP3169181 Whirlpool Knob
32	WPL 816062
32	WPL 866454
33	WPL 816063
34	WPL 816065
34	WPL 816064
35	Screw 10-24 x 1/2
35	WPL 868995
35	WPL 868996
36	WPL 866053
37	WPL 868997
38	WPL 868998
39	WPL 273225
39	WPL 865797
40	WPL 866411
41	WPL 866412
42	WPL 868222
43	WPL 868102
43	Screw, 10-24 x 1/2 (3)
44	WPL 834956
45	WPL 868799
