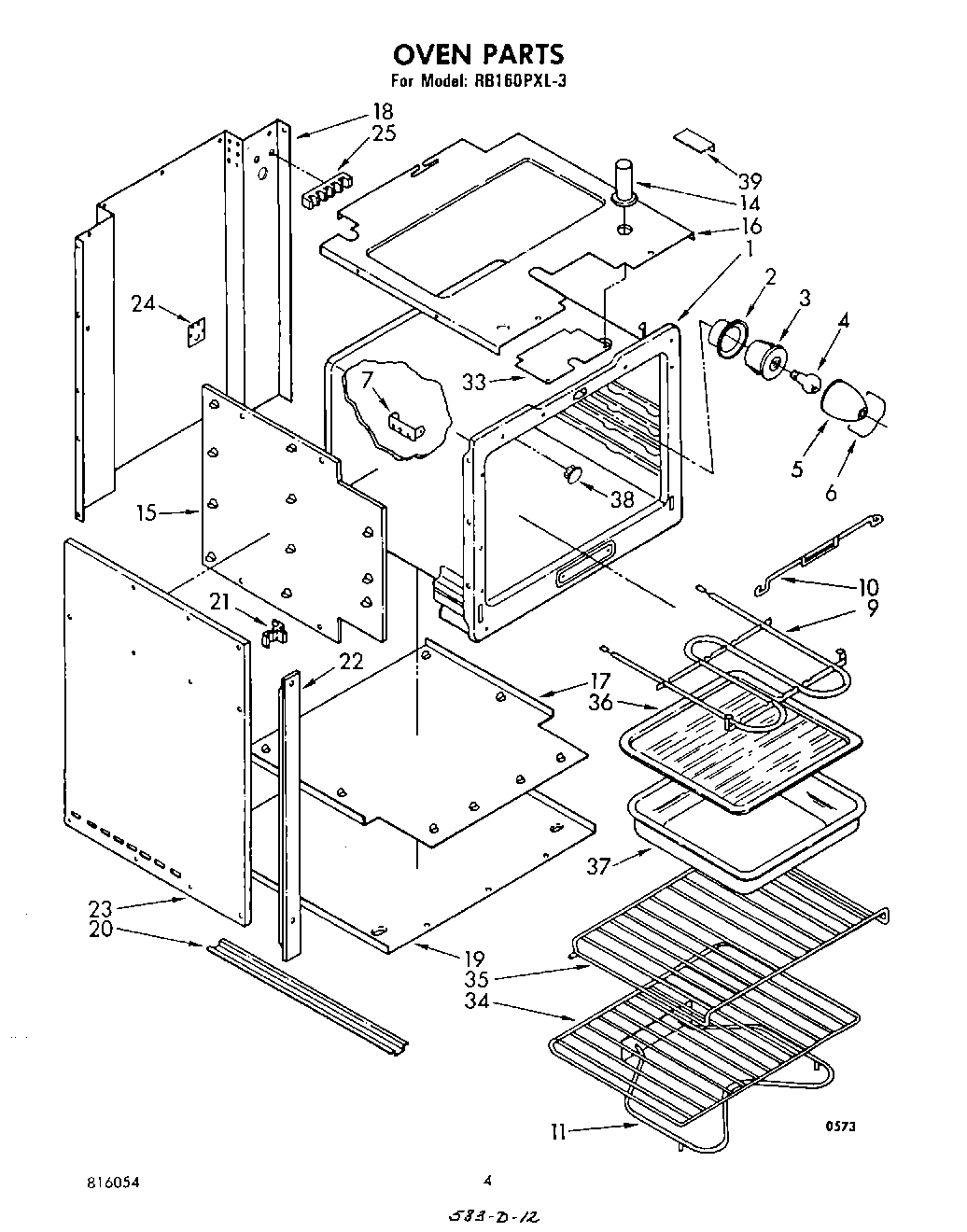

RB160PXL3 03 – SECTION

Products

Position	Product
	WPL LIT866338
	WPL LIT877952
	WPL LIT816017
	WPL LIT816027
	WPL LIT816054
1	Oven (27“ Pyro)
2	Cup, Light
3	W10856866 Whirlpool Light Socket
4	RANGE ONLY 40W 120V APPL BULB
5	Lens, Light
6	Retainer, Lens
7	Bracket, Thermo Bulb
9	Unit, Broiler (208V)
9	Unit, Broil
10	Hanger, Broil Unit
11	Unit, Bake (Alternate (208V))
11	WP866375 Whirlpool Range Bake Element
11	Unit Bake (Screw, 10-24 x 1/2 (2))
14	Screw, 10-24 x 3/8 (2)
14	Vent Tube
15	Retainer, Insulation Side (2)
16	Retainer, Insulation Top
17	Retainer, Insulation Bottom
18	Casing, Back
19	Casing, Bottom
20	Support, Bottom Casing (2)
21	Spacer Trim (4)
22	Trim, Oven Front (2)
23	Casing, Side (2)
24	Plate, Conduit
25	WP8203546 Whirlpool Terminal Block
25	Hex Nut, 10-32 (6)
25	Screw,10-24 x 1/2
25	WPL 834649
33	Cover, Access
33	Screw, 10-24 x 1/2 (3)
34	Rack, Oven Regular
35	Rack, Oven (Offset)
36	4396923 Whirlpool Broil Pan Set Gray Porcelain
37	Pan, Broiler
38	Plug, Button
39	1
39	WPW10208653 Whirlpool Insulation
39	FOIL, ALUMINUM OVEN (18“ X 25 )
39	Wire (14 Ga. 150 c Brown)
39	Wire (14 Ga. 200 c Brown)
39	18 Ga. 80~c Rating (Red)
39	Wire (12 Ga. 150 c Black)
39	Wire (14 Ga. 150 c Yellow)
39	Wire (14 Ga. 150 c Orange)
39	Wire (14 Ga. 150 c Green)
39	Wire (14 Ga. 150 c Blue)
39	242831 Whirlpool Oven Wire
39	Touch-Up Oven (1 Oz.)
39	Wire, 25“ Roll (White 14 GA.)
39	Wire, 25` Roll (Red 14 Ga.)
39	Wire, 25` Roll (Black 14 Ga.)
39	WPL 816068
39	Grease
