RB160PXYB0 02 – CONTROL PANEL, LIT/OPTIONAL

RB160PXYB0 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

RB160PXYB0 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT884541
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Tech Sheet
	Installation Instructions
	Use & Care Guide
	WPL 282831
	WPL 591014
	WPL 350806
	1
	Wire (14 Ga. 200 c Brown)
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
	Leveler (Thinner)
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	WP72107 Whirlpool Touchup
	Golden Harvest
	Golden Harvest (Uncut)
	Wire, 25` Roll (Black 14 Ga.)
	WPL 799832
	350942 Whirlpool Spray Paint
	WPL 72112
	Platinum (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)

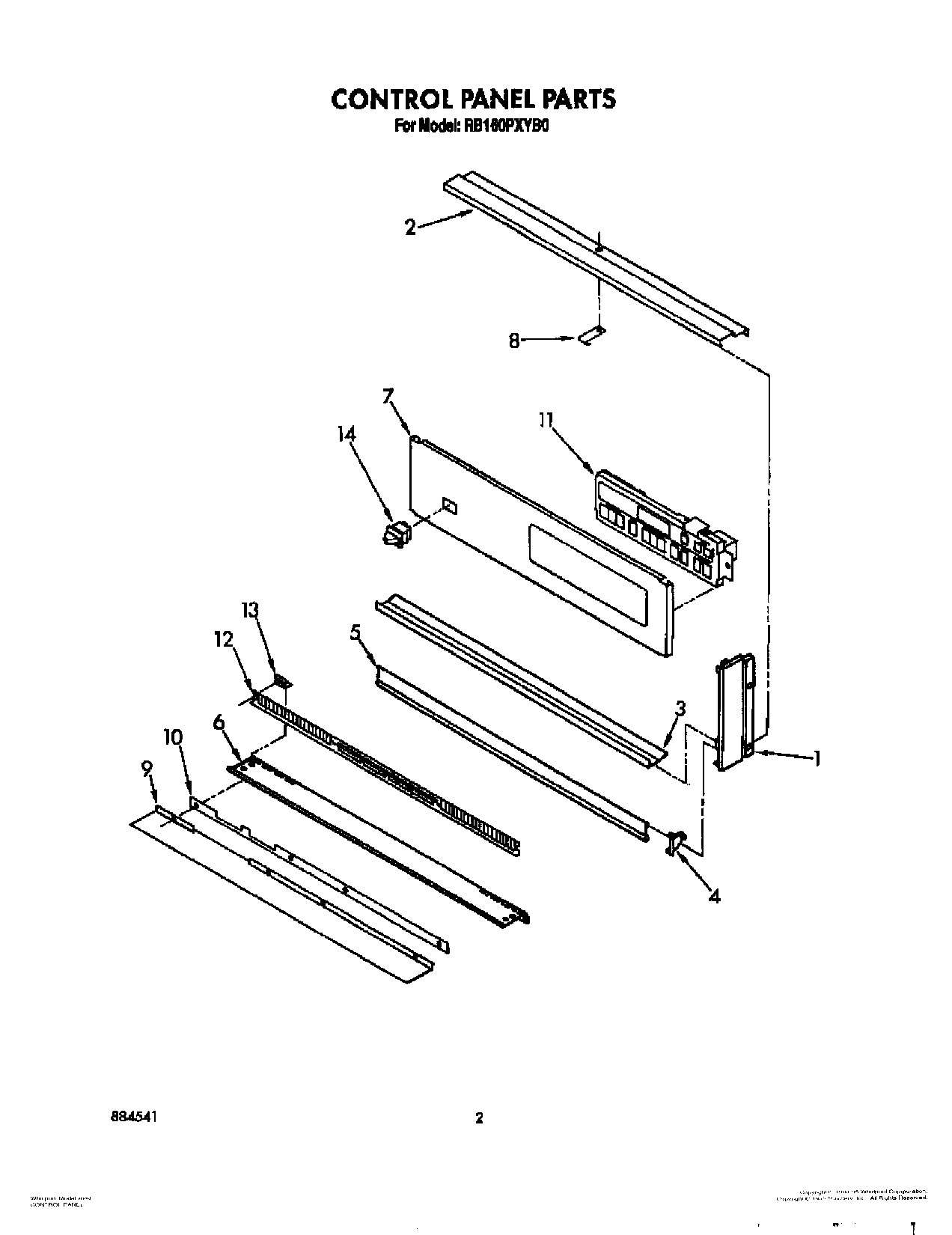

1	End Cap (Right Hand)
1	End Cap (Left Hand)
2	Screw (3)
2	Trim, Top
3	Trim, Center (White Model)
3	Trim, Center (Black Model)
4	Vent Door (White Model)
4	Vent Door (Black Model)
5	End Trim, Vent (Right Side)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	End Trim, Vent (Left Side)
6	Trim, Bottom (White Model)
6	Trim, Bottom (Black Model)
7	Control Panel (White Model)
7	Control Panel (Black Model)
8	Stiffener, Bracket
8	Screw
9	Trim, Vent Upper (Black Model)
9	Trim, Vent Upper (White Model)
10	Shim
11	Control, Electronic (Black)
11	Control, Electronic (White)
12	Insert, Vent
13	WP90767 Whirlpool Screw
13	Bracket, Mounting
14	Switch, Rocker
14	Switch, Rocker (White)
