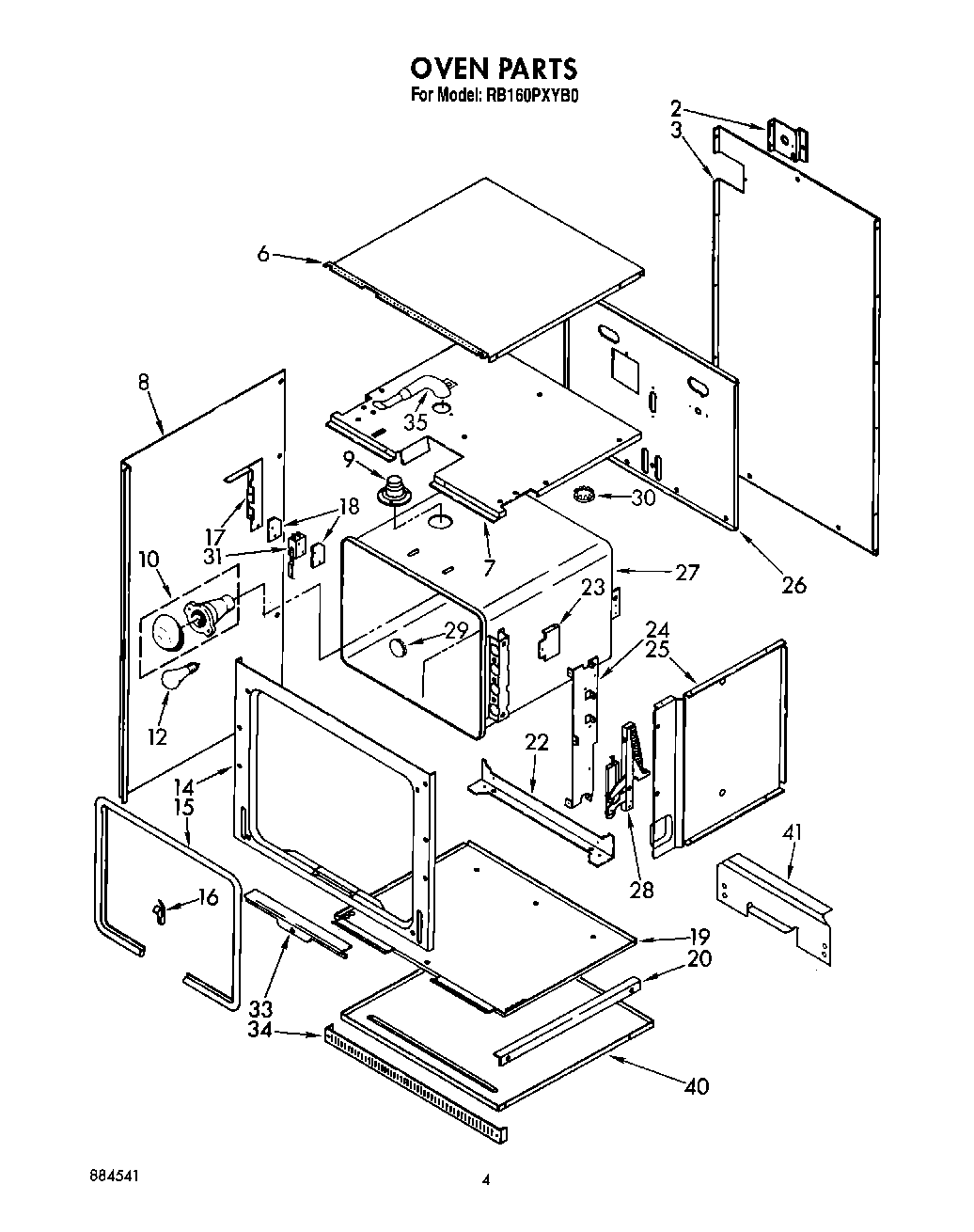

RB160PXYB0 03 – OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Screw (3)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
14	Screw (4)
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
26	WP90767 Whirlpool Screw
27	Liner, Oven (Black)
28	Screw (6)
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Nut (2)
31	Switch, Door
31	Screw (2)
33	Retainer, Seal
34	Trim, Lower Vent (Black Model)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (White Model)
34	Vent, Lower Trim (Screw (4))
35	Tube, Vent
39	Cover, Cap Tube
39	Screw
40	Bottom, Oven
41	Insulation, Wrap
41	WPL 3182584
41	WP3177991 Whirlpool Screw
41	WPL 3177870
