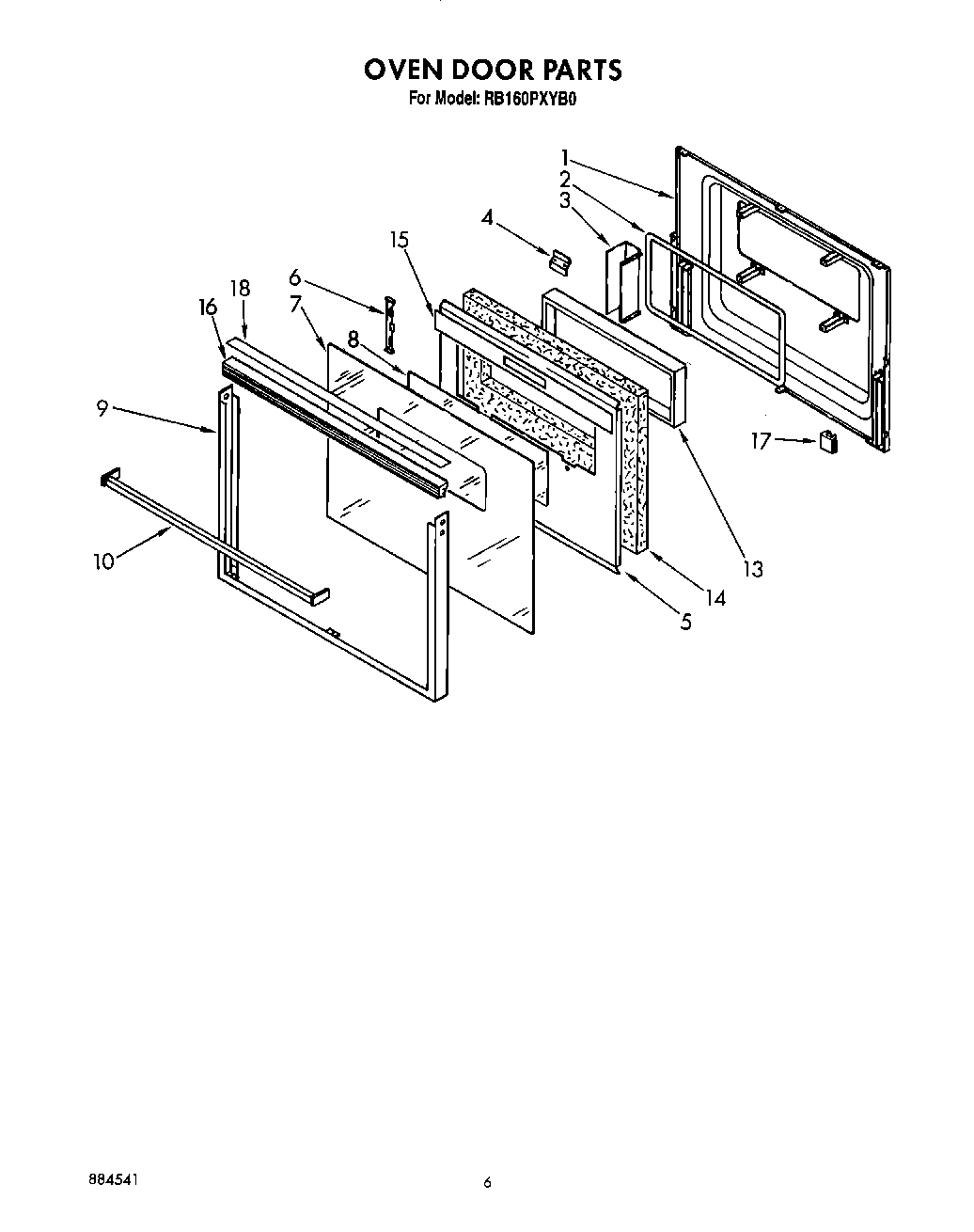

RB160PXYB0 04 – OVEN DOOR

RB160PXYB0 04 – OVEN DOOR

Written by

in

RB160PXYB0 04 – OVEN DOOR

Products

Position	Product
1	Screw, Black (2)
1	Liner, Door
1	Vent, Lower Trim (Screw (2))
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Retainer, Insulation
6	Bracket, Glass Mtg.
7	Glass, Door (White Model)
7	Glass, Door (Black Model)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (White Model)
10	WP355515 Whirlpool Screw
10	Handle, Door (Black Model)
13	Window Package
14	Insulation, Door
15	Shield, Door
15	WP90767 Whirlpool Screw
16	Trim, Top (Black Model)
16	Trim, Top (White Model)
17	Bumper, Door Glass
18	Cap, Top (White Model)
