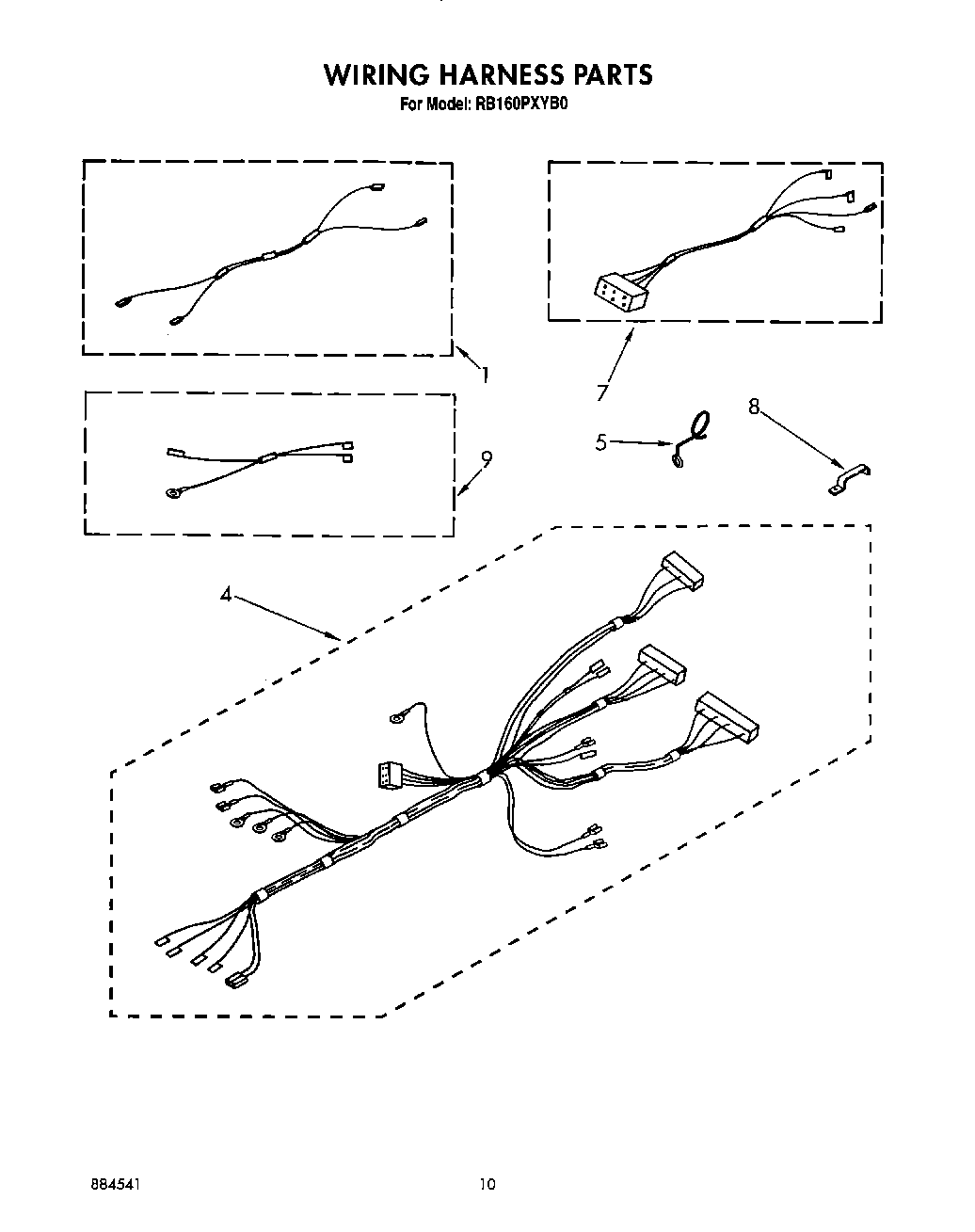

RB160PXYB0 07 – WIRING HARNESS

Written by

Products

Position	Product
1	Harness Wire (Door Switch)
4	Wiring Harness (Oven)
5	WP90767 Whirlpool Screw
5	WP112432 Whirlpool Nut Assembly
5	Standoff, Wire
7	Wiring Harness (Latch Assembly)
8	7111P002-60 Whirlpool Clamp
9	Harness, Wire (Blower Fan)
