RB160PXYB2 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT885520
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Tech Sheet
	Installation Instructions
	Use & Care Guide
	WPL 591014
	WPL 350806
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	285006 Whirlpool Spray
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	350956 Whirlpool Spray Assembly
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	WPL 799832
	350930 Whirlpool White Spray Paint
	Wire, 25` Roll (Black 14 Ga.)
	350942 Whirlpool Spray Paint
	WPL 72112
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)

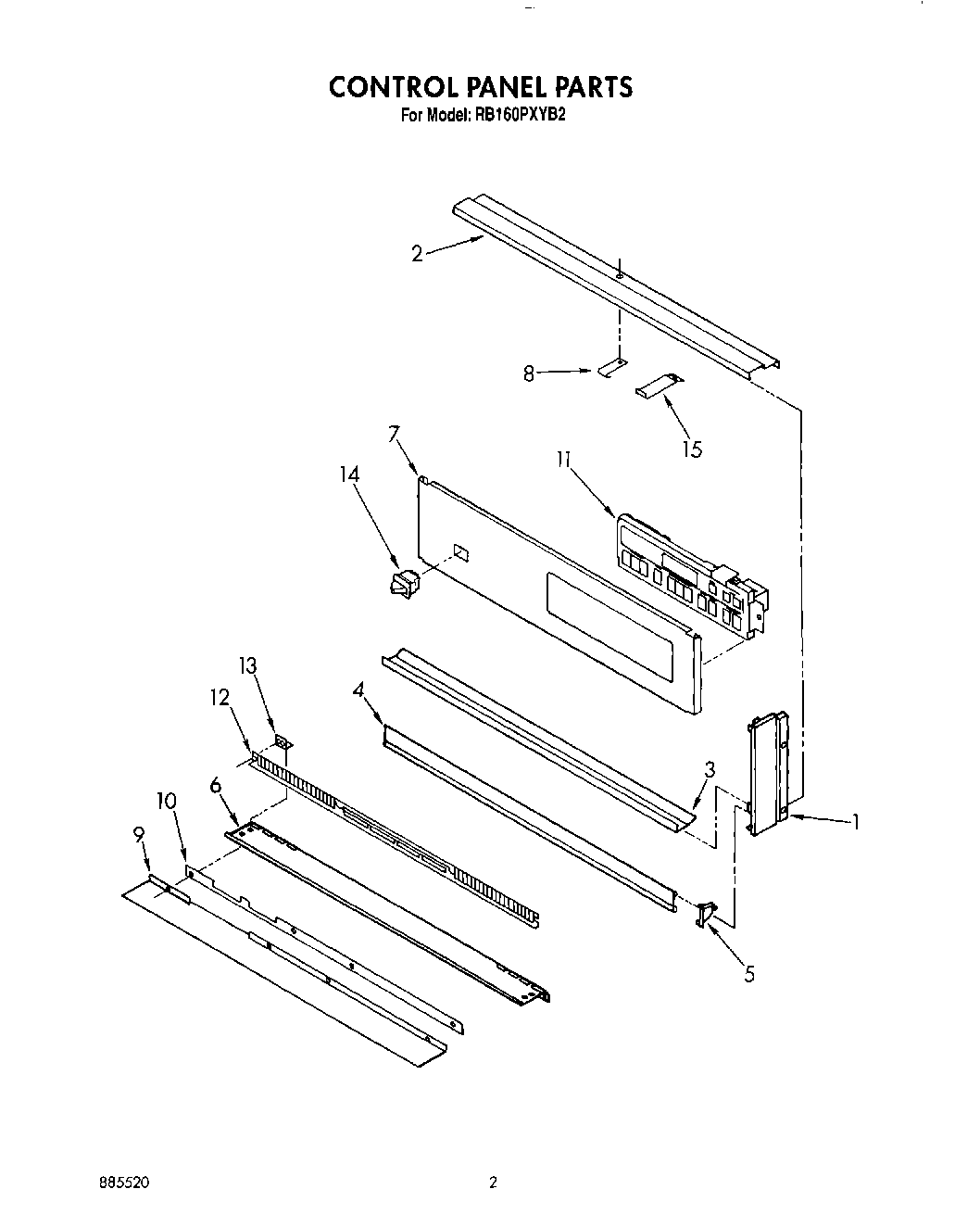

1	End Cap (Right Hand)
1	End Cap (Left Hand)
2	Trim, Top
2	Screw (3)
3	Trim, Center (White Model)
3	Trim, Center (Black Model)
4	Vent Door (White Model)
4	Vent Door (Black Model)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
5	Trim, Vent Door (Brite Aluminum, R.H.)
6	Trim, Bottom (Black Model)
6	Trim, Bottom (White Model)
7	Control Panel (White Model)
7	Control Panel (Black Model)
8	Stiffener, Bracket
8	panel, top (screw, 10a x 3/8 (3))
9	Trim, Vent Upper (Black Model)
9	Trim, Vent Upper (White Model)
10	Screw
10	Shim
11	Control, Electronic (White)
11	Control, Electronic (Black)
12	Insert, Vent
13	Bracket, Mounting
13	Screw
14	Switch, Rocker
14	Switch, Rocker (White)
15	Stiffner, Bracket
15	Screw
