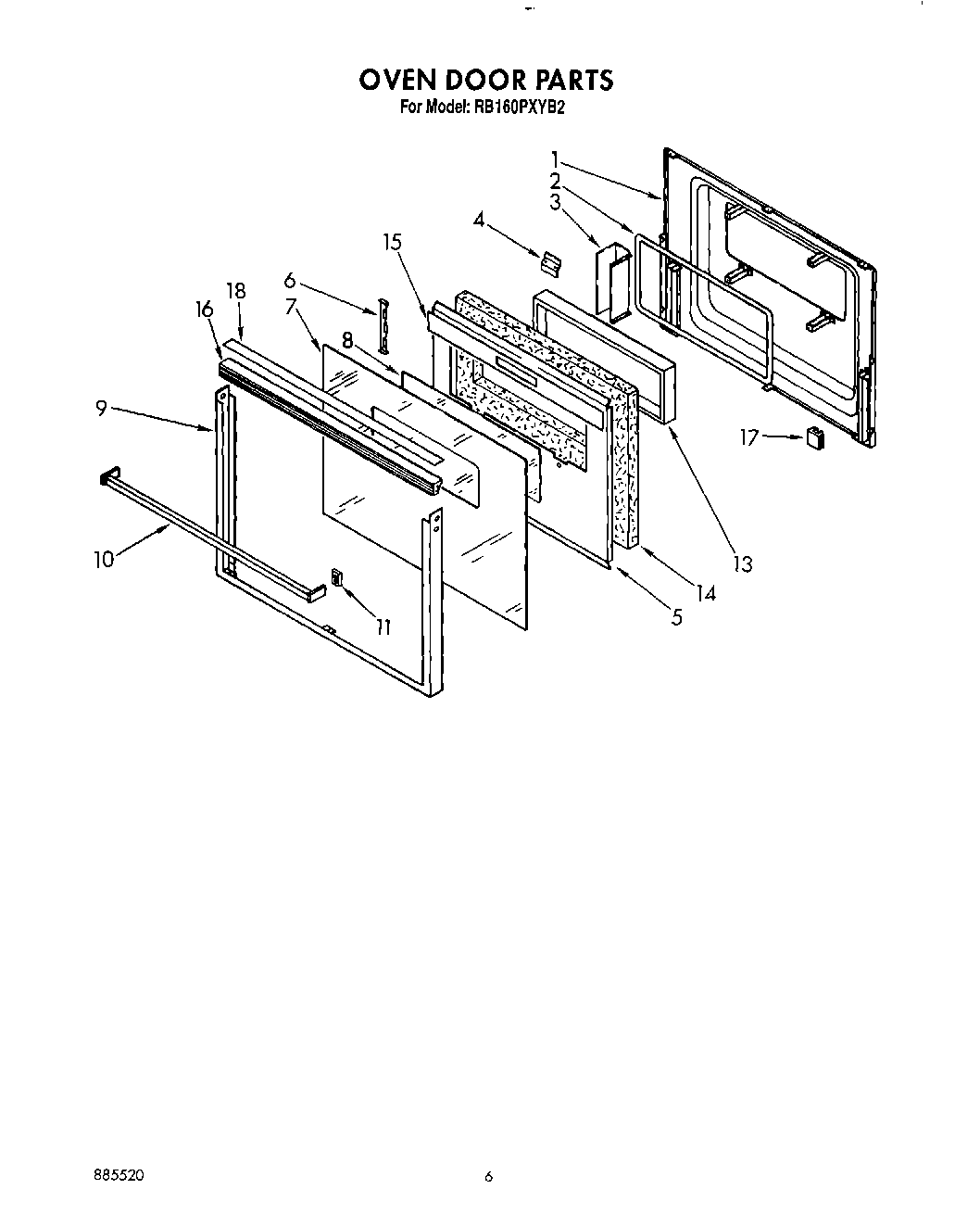

RB160PXYB2 04 – OVEN DOOR

Products

Position	Product
1	Screw, Black (2)
1	Liner, Door
1	Screw (5)
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Retainer, Insulation
6	Screw (4)
6	Bracket, Glass Mtg.
7	Glass, Door (White Model)
7	Glass, Door (Black Model)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (White Model)
10	Handle, Door (Black Model)
10	WP355515 Whirlpool Screw
11	Clip, Mtg (2)
13	Window Package
14	Insulation, Door
15	Screw
15	Shield, Door
16	Trim, Top (Black Model)
16	Trim, Top (White Model)
17	Bumper, Door Glass
18	Cap, Top (White Model)
